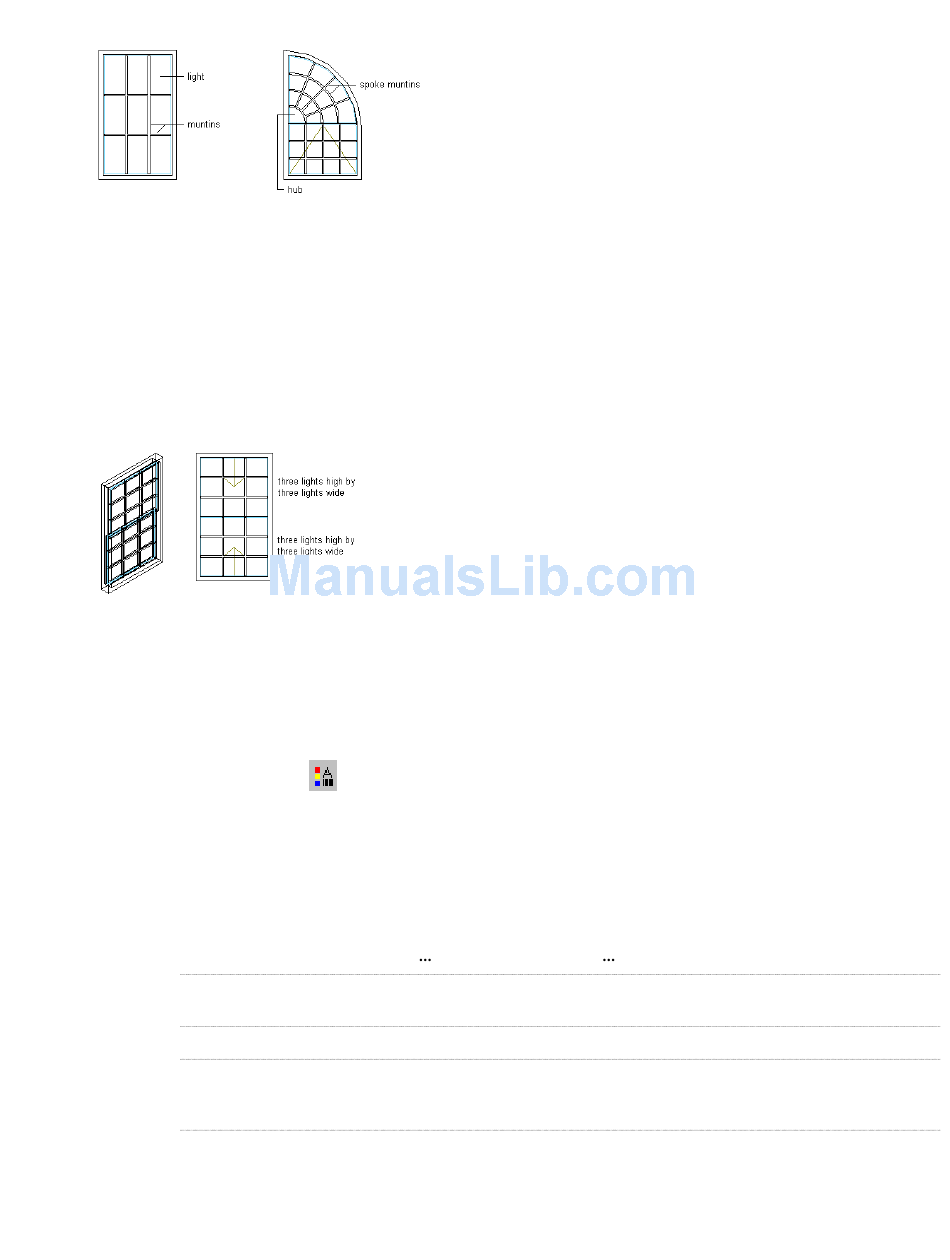

Window muntin components
Adding Rectangular Muntins to a Window Style
Use this procedure to add rectangular muntins to a window style.
You add the muntins by editing the display properties of the window style for a display representation, such as Model
or Elevation, where you want the muntins to appear. You can add muntins to display representations individually.
You can also add muntins to a single display representation and automatically apply the muntins to all display
representations of that window style. You add the muntins block to the window style in the display properties. Each
muntins block becomes a display component of the window style.
You can apply the rectangular pattern to all window shapes and window types except Pass Through.
Specifying rectangular pattern muntins
1 Open a tool palette that has a window tool.
2 Right-click a window tool, and click Window Styles.
3 Select the style you want to edit.
4 Click the Display Properties tab.
5 Select the display representation where you want the changes to appear, and select Style Override.
6 If necessary, click
7 Click the Muntins tab.
8 Click Add.
9 Enter a name for the muntins block.
10 If the window style contains multiple sash, specify whether you want muntins applied to the Top, All, or
a Single sash component in the window:
If you want to attach muntins to
the top sash only
all sash
an individual sash component
1092 | Chapter 23 Windows
.
Then
under Window Pane, select Top. Top also applies to single
sash.
under Window Pane, select Other, and select All.
under Window Pane, select Other. Select Single, and specify
the index number for window sash. Sash is indexed counter-
clockwise, starting from the lower left corner.
