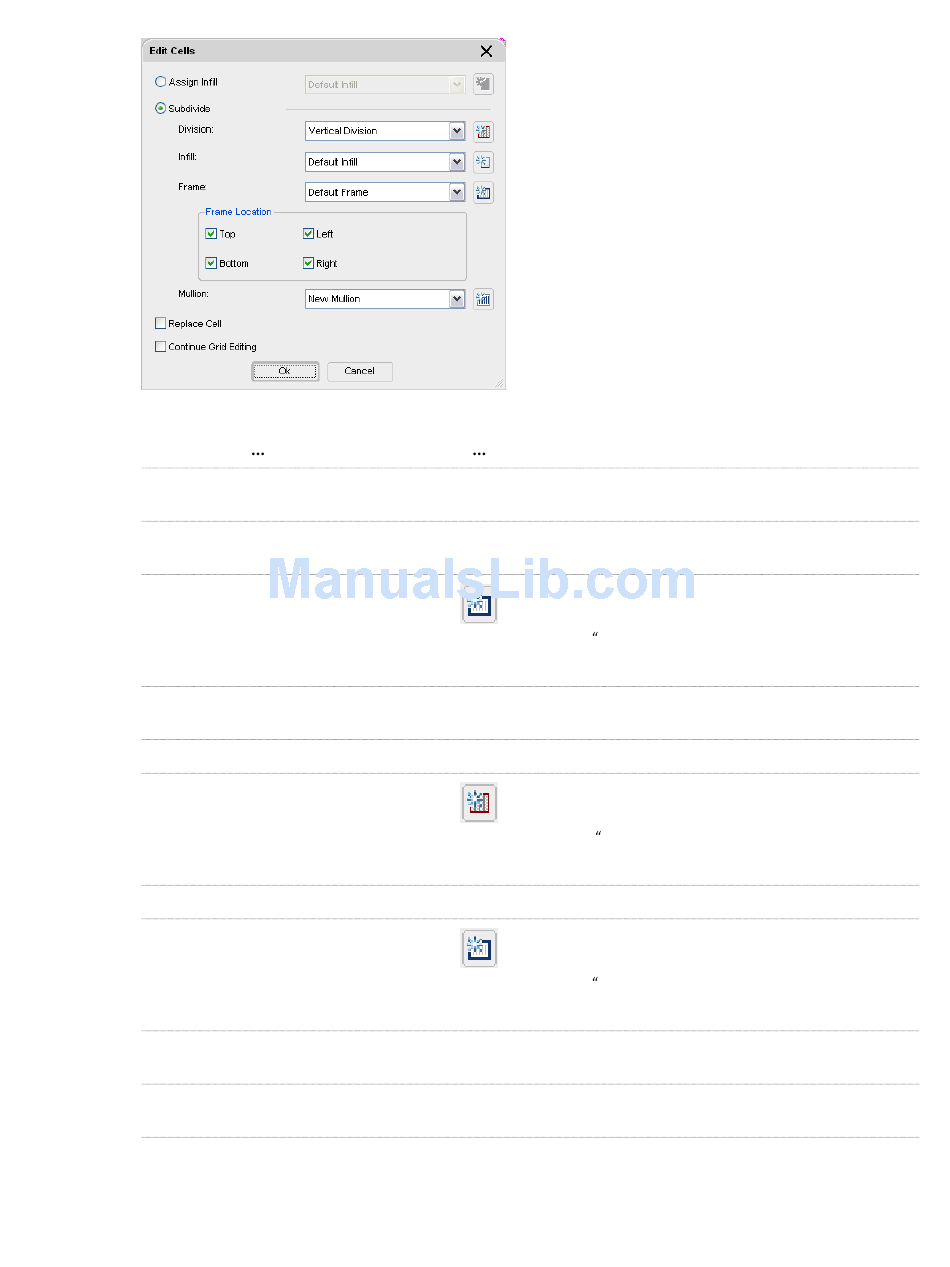

The Edit Cells worksheet displays.
6 Edit the cell for the selected grid:
If you want to
assign an infill to selected cells
replace the selected cells with a new infill
create and assign a new infill to the selected
cells
divide the selected cells with divisions, infills
or frames
select a division for the subdivided cells
create and assign a new division to the
selected cells
select an infill for the subdivided cells
create and assign a new infill to the
subdivided cells
select a frame definition for the grid created
after the cell is subdivided
specify the location of frames on the grid
created after the cell is subdivided
Then
select Assign Infill and select an infill definition. Clear Replace Cell and click
OK.
select Assign Infill and select an infill definition. Select Replace Cell and click
OK.
click and specify values on the Design Rules worksheet.
For more information, see Assigning Infills to Curtain Wall
786.
select Subdivision.
select a division definition.
click and specify values on the Design Rules worksheet.
For more information, see Assigning a Division to a Curtain Wall
on page 785.
select an infill definition.
click and specify values on the Design Rules worksheet.
For more information, see Assigning Infills to Curtain Wall
786.
select the frame definition and click OK.
select Top, Bottom, Left, Right for Frame Location and click OK.
Cells" on page
Cells" on page
