There is a unique icon for each type of style. For example, the door style icon
icon
identify the type of infill.
10 Select an alignment for the infill.
For more information, see
11 Specify an offset for the infill.
For more information, see
12 Click OK.
After you create an infill definition, you can assign it to any cell in a door/window assembly grid. For more information,
see Assigning Infills to Door and Window Assembly
Specifying an Alignment for a Door and Window Assembly Infill
Use this procedure to align an infill so that it is centered with the baseline of the door/window assembly, in front of
the baseline, or behind the baseline. In Plan view, the front of a door/window assembly (drawn from left to right) is
below the baseline and the back is above the baseline.

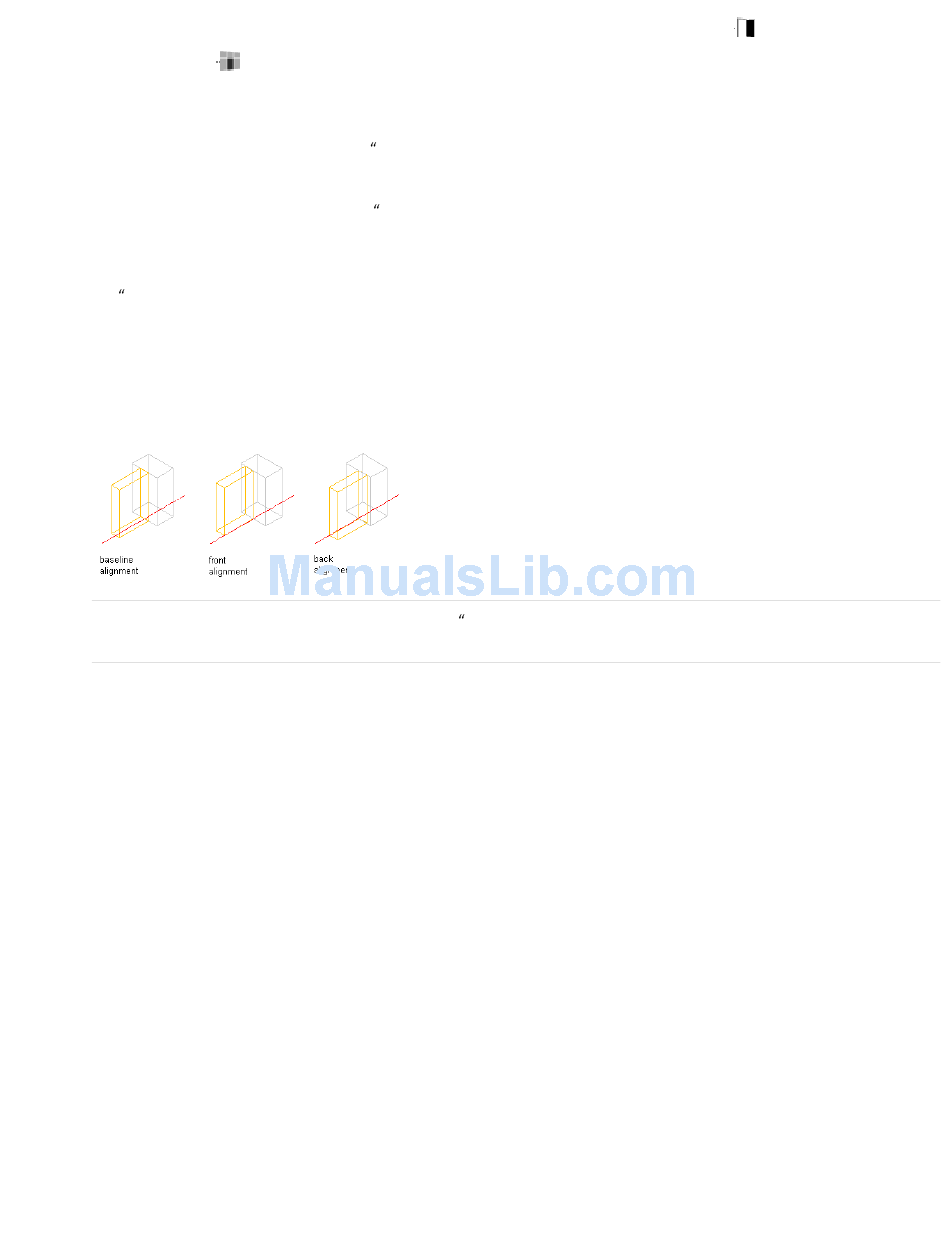

Specifying Door/Window Assembly panel infill alignments
NOTE To move the infill away from the baseline, see
page 926.
1 On the Format menu, click Style Manager.
2 Expand Architectural Objects, and expand Door/Window Assembly Styles.
3 Select a door/window assembly style.
4 Click the Design Rules tab.
5 In the left pane, select Infills under Element Definitions.
6 Select an infill or create a new one.
7 Select an alignment: front, center, or back.
8 Click OK.
Specifying an Offset for a Door and Window Assembly Infill
Use this procedure to specify an offset for a door/window assembly infill. By default, infills are centered on the
door/window assembly baseline. If your design requires that the infill be aligned with frame edges or some other part
of the door/window assembly, you can specify an offset for the infill.
You can also edit individual style-based infills directly in the drawing. The selected infill has Flip grips in both the X
and Y directions so that you can change the orientation of the infill.
926 | Chapter 20 Door and Window Assemblies
. These icons also are displayed next to the infill name at the top of the dialog box to help you
Specifying an Alignment for a Door and Window Assembly
Specifying an Offset for a Door and Window Assembly
Cells" on page 937.
Specifying an Offset for a Door and Window Assembly
and the curtain wall unit
Infill" on page 926.
Infill" on page 926.
Infill" on
