2 Expand Architectural Objects, and expand Slab Edge Styles or Roof Slab Edge Styles.
3 Create a slab/roof slab edge style:
If you want to
create a style with default properties
create a style from an existing style
4 Enter a name for the new style, and press
5 To specify or edit the properties of the new style, use the tabs on the right pane of the Style Manager as
described in the following table:
If you want to
enter a description of the style
specify the overhang, edge cut, and angle for the style
specify soffits and fascias for the style
assign materials to the display components of the style
turn on materials for the style
add notes and files to the style
6 When you finish specifying the properties of the style, click OK twice.

Specifying the Overhang, Edge Cut, and Angle of a Slab/Roof Slab Edge Style

Use this procedure to specify the default overhang depth, edge cut, and edge angle for slab or roof slab edges using this
edge style.
1 Select a slab or roof slab, right-click, and click Edit Slab Edge Style or Edit Roof Slab Edge Style.
2 Select an edge of the slab/roof slab.

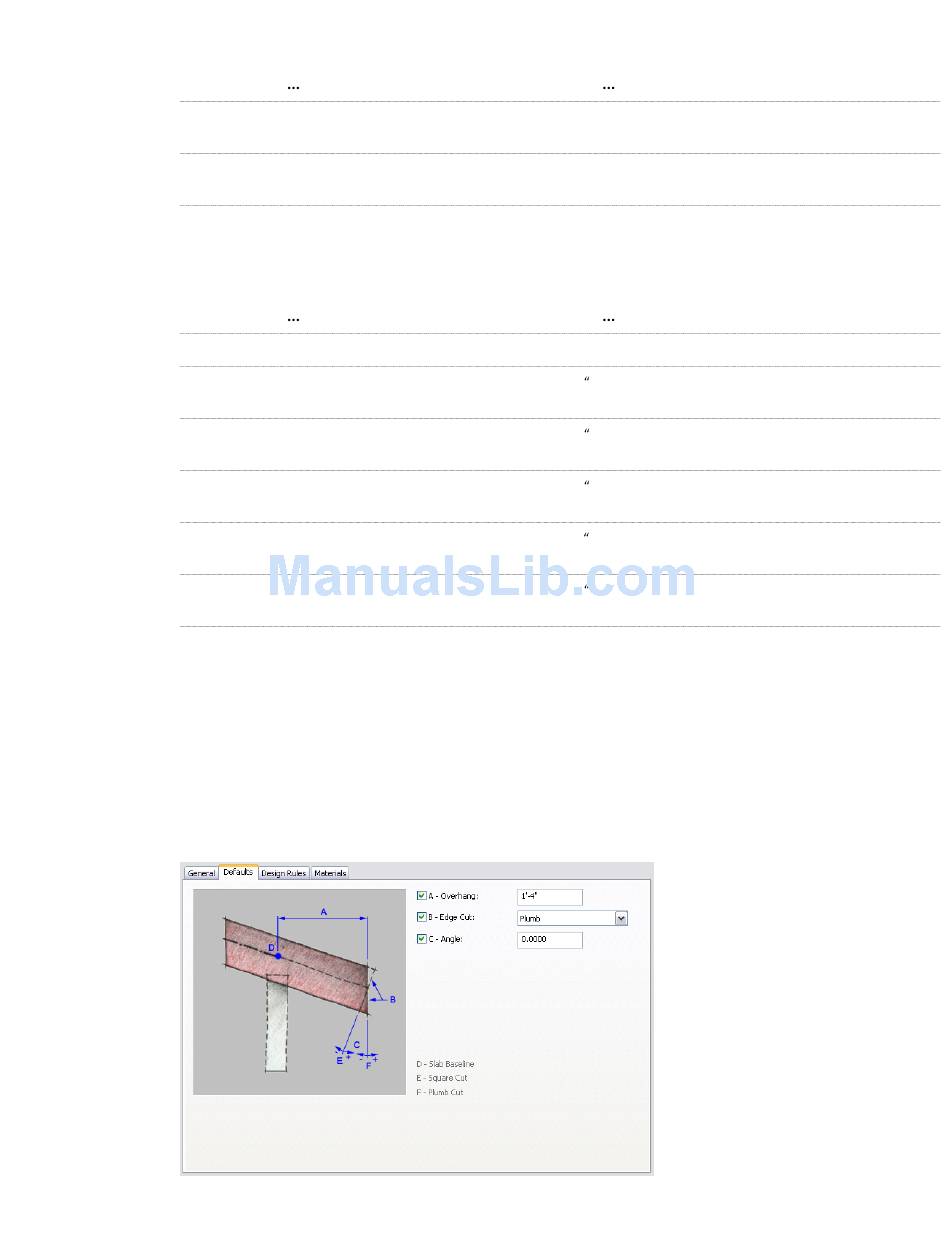

3 Click the Defaults tab.
1362 | Chapter 28 Slabs and Roof Slabs
Then
right-click Slab Edge Styles or Roof Slab Edge Styles, and click
New.
right-click the style you want to copy, and click Copy. Right-
click, and click Paste.
.
ENTER
Then
click the General tab, and enter a description.
see Specifying the Overhang, Edge Cut, and Angle of a
Slab/Roof Slab Edge
see Specifying a Fascia and a Soffit for a Slab/Roof Slab
Edge Style" on page 1365.
see Assigning Materials to a Slab/Roof Slab Edge
on page 1367.
see Turning on Materials for a Slab/Roof Slab Edge
on page 1368.
see Attaching Notes and Files to a Slab/Roof Slab Edge
Style" on page 1368.
Style" on page 1362.
Style"
Style"
