Specify Door/Window Assembly infill panel offsets
1 On the Format menu, click Style Manager.
2 Expand Architectural Objects, and expand Door/Window Assembly Styles.
3 Select a door/window assembly style.
4 Click the Design Rules tab.
5 In the left pane, select Infills under Element Definitions.
6 Select an infill or create a new one.
7 Enter an offset distance.

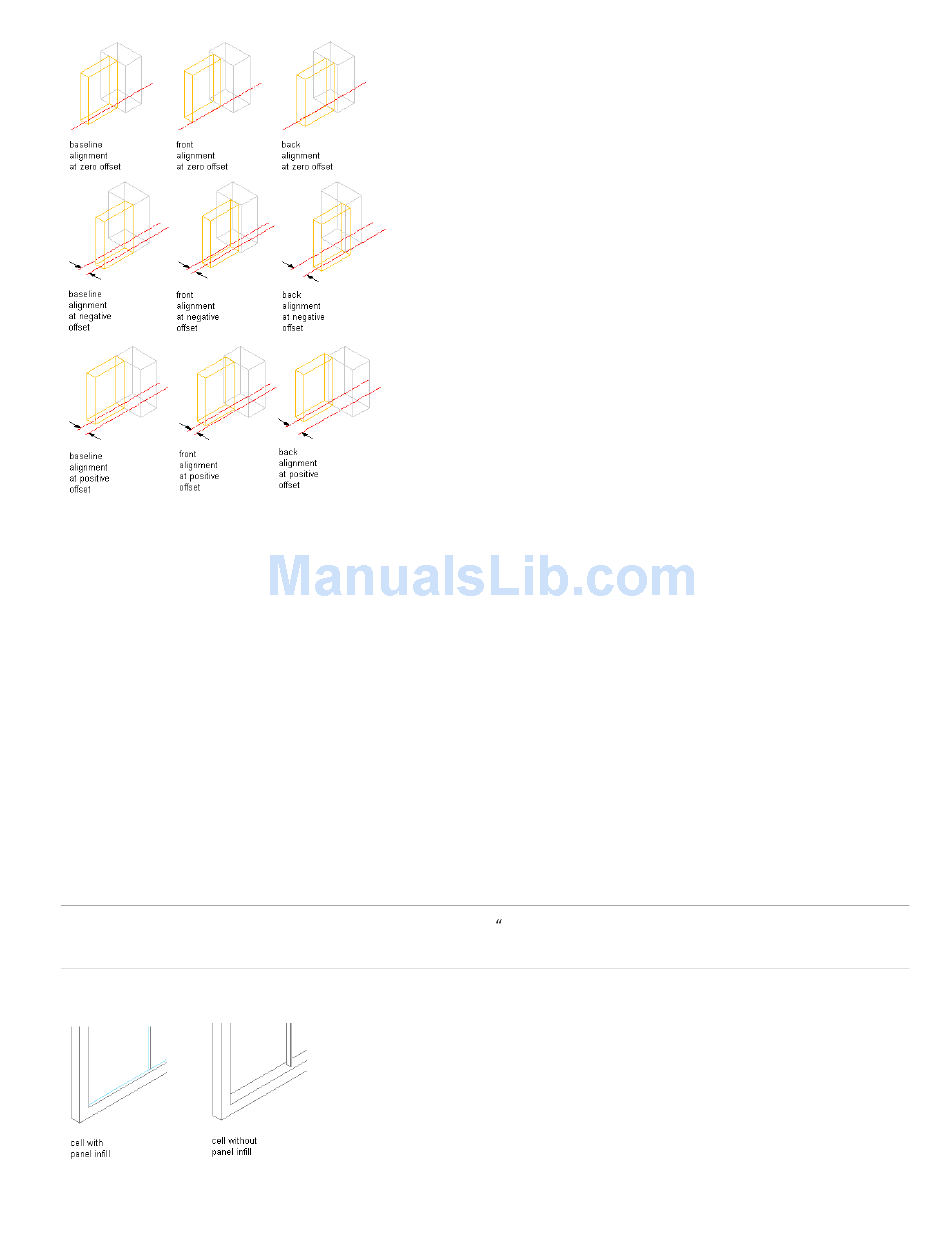

In plan view, positive numbers offset the infill above the baseline and negative numbers offset the infill
below the baseline. The offset is also affected by the selected alignment for the infill.
8 Click OK.
Removing an Infill Definition from a Door and Window Assembly Style
Use this procedure to delete an infill definition that you no longer need. However, you cannot remove an infill definition
that is currently assigned to a cell in the primary grid or any nested grid. Also, you cannot remove the default infill
definition, but you can modify it as needed.
NOTE For information about removing an infill from a cell, see
on page 942.
Removing panel infill from a Door/Window Assembly
1 On the Format menu, click Style Manager.
Removing an Infill from a Door and Window
Door and Window Assembly Styles | 927
Assembly"
