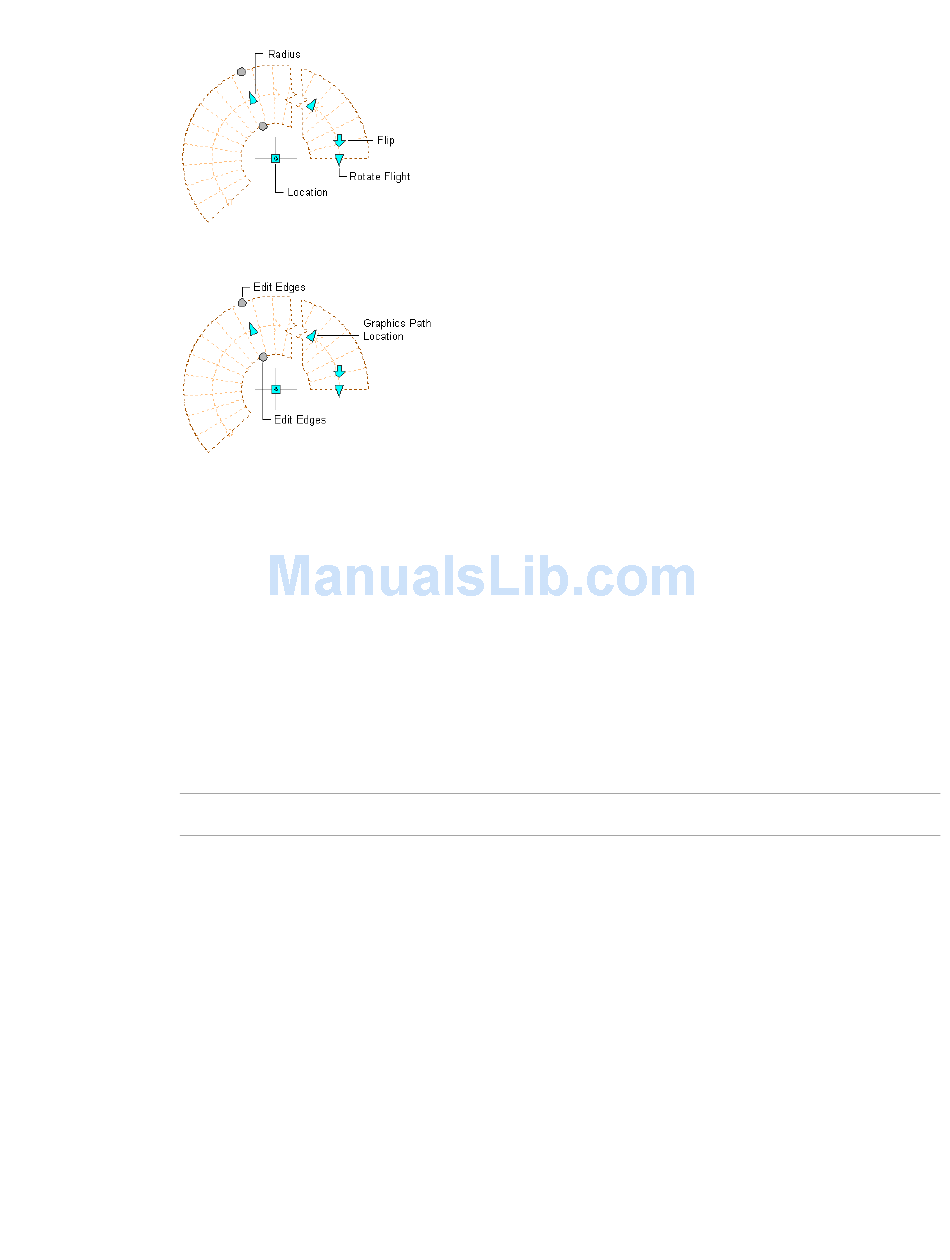

Spiral stair Radius, Flip, Rotate Flight, and Location grips
Spiral stair Graphics Path Location and Edit Edges grips
3 Move the stair to the desired location, and click once; or enter a value, and press
If you want to enter a specific value for the second direction in any edit mode (for example, in the Y
direction when editing along the XY plane), press
You can also lock the movement of the stair along a specific direction. If you enter a value for either
dimension direction in the current edit mode, and then press
to the second dimension direction. When editing along the XY plane, for example, you can enter a value
for X dimension, and then press
is constrained to the Y dimension direction.
4 Right-click, and click Deselect All to turn off grips.
Changing the Height of a Spiral Stair
1 Select the spiral stair.
2 Move the Height grip to change the height of the stair.
NOTE This grip displays only in 3D views of the stair.
