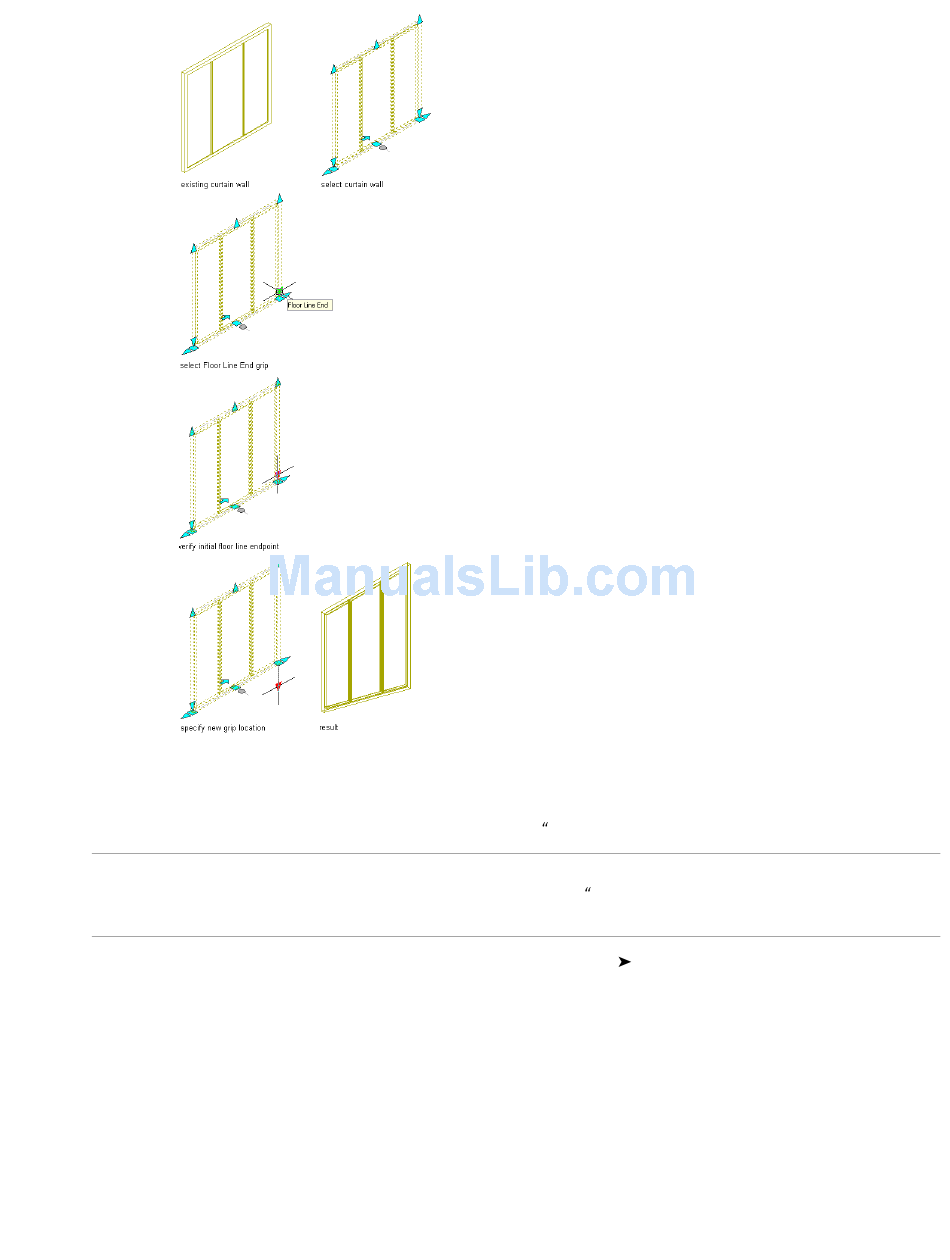

Adding a Gable to the Roof Line of a Curtain Wall

Use this procedure to add a gable to the roof line of a curtain wall. You can also add a gable on the Roof/Floor Line
worksheet on the Properties palette. For more information, see
NOTE This option is available only if the roof line has not been edited. After the roof line changes, you cannot add a gable
using this option. To add a gable to a roof line that has been edited, see
of a Curtain Wall" on page 836.
1 Select the curtain wall, right-click, and click Roof/Floor Line
A temporary profile is created for you to edit the geometry of the Roof line.
2 Right-click, and click Add Gable.
If Add Gable is not listed on the menu, the roof line was previously edited.
3 Select the roof line.
834 | Chapter 19 Curtain Walls
Specifying Gable Settings for a Roof
Changing Vertices in the Roof Line or Floor Line
Edit in Place.
Line" on page 837.
