7 Respond to the prompts as follows:

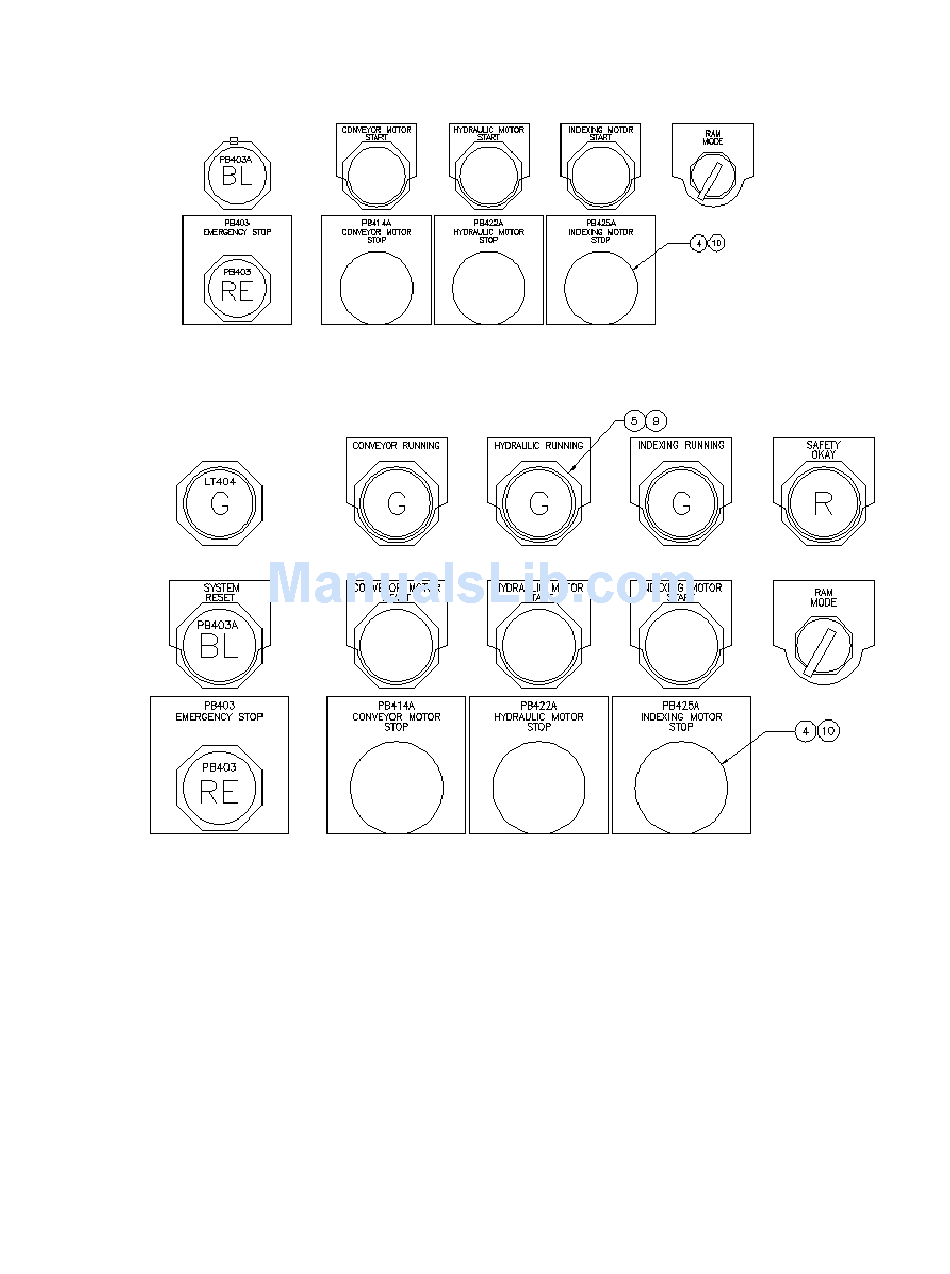

Select objects: Select PB403A (2), right-click to place the nameplate
8 In the Panel Layout - Nameplate Insert/Edit dialog box, click OK to insert the
nameplate.
The nameplate is inserted.
This is the end of this tutorial chapter.
|
