Autodesk AUTOCAD ELECTRICAL 2005 Getting Started page 13

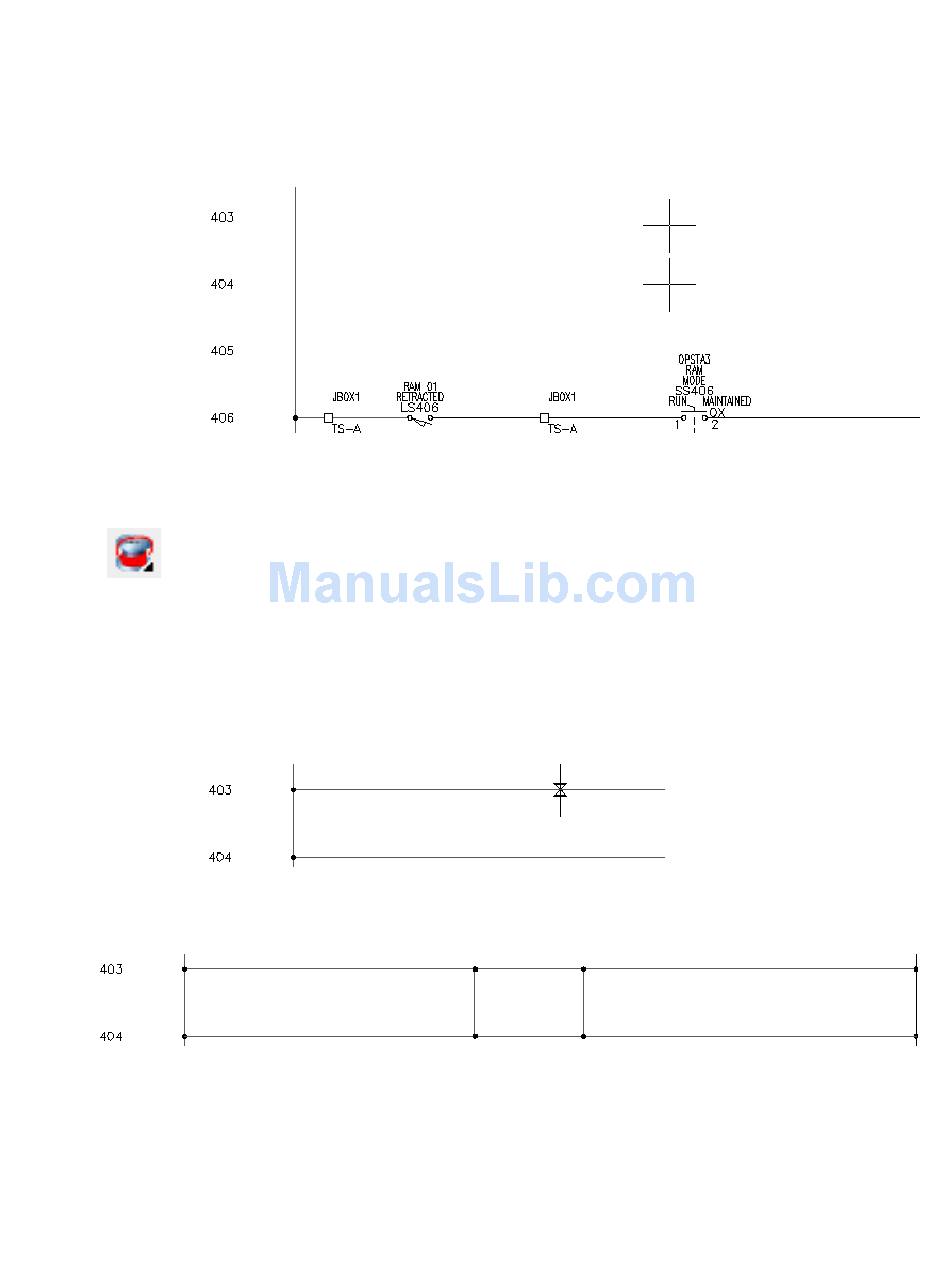

5 Respond to the prompts as follows:
Add rung passing through this location:
Select a location between the two vertical bus wires beside line reference 403 (1)
Add rung passing through this location: Select a location between the two vertical
bus wires beside line reference 404, underneath the newly created rung (2)
Two horizontal wires are created.
Next, create two vertical wires between the two horizontal wires.
6 Click the Insert Wire tool.
Menu
7 Respond to the prompts as follows:
Select component or branch for WIRE (S=show connections):
Select the top wire at line reference 403(1)
Select component or branch for WIRE (S=show connections): to: (V=start
Vertical;H=start Horizontal): Select the lower wire at line reference 404 (2)
8 Insert another wire to the right of the new wire.
The inserted wires resemble the following:
Wires ➤ Insert Wire
1
2
1
2
Inserting Wires
|
9
