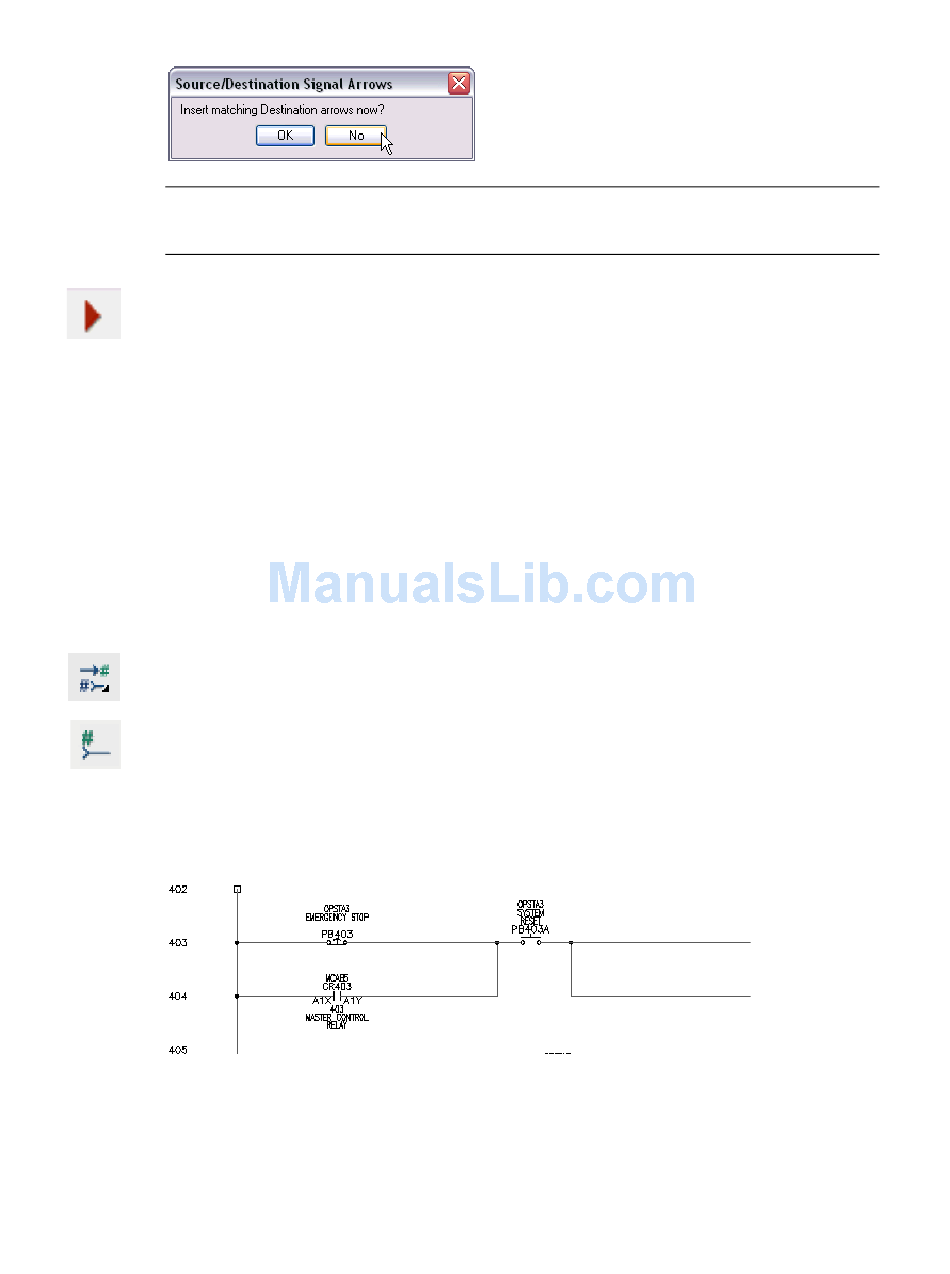

7 In the Source/Destination Signal Arrows dialog box, click No.
NOTE
insert the signal arrows on the current drawing.
8 Click the Next Project Drawing tool to access demo04.dwg.
Now you are ready to insert a destination signal arrow.

Attaching Destination Signal Arrows

Once the source signal arrow is attached to the drawing, you can then attach
a destination signal to a wire segment of a wire network. This enables the
wire number assigned to another source wire network to automatically carry
over to the current network.
To attach a destination signal
1 Click the drop-down arrow on the Source Destination Signals tool to access
the Destination Signal Arrow tool.
Menu
2 Respond to the prompt as follows:
Select wire end for Destination: Select the top of the hot wire on the schematic
on the left side of the drawing at line reference 402 (2)
|
52
Chapter 5 Wire Numbers
Click No to insert the signal arrows on the next drawing. Click OK to
Wires ➤ Signal References ➤ Destination Signal Arrow
2
