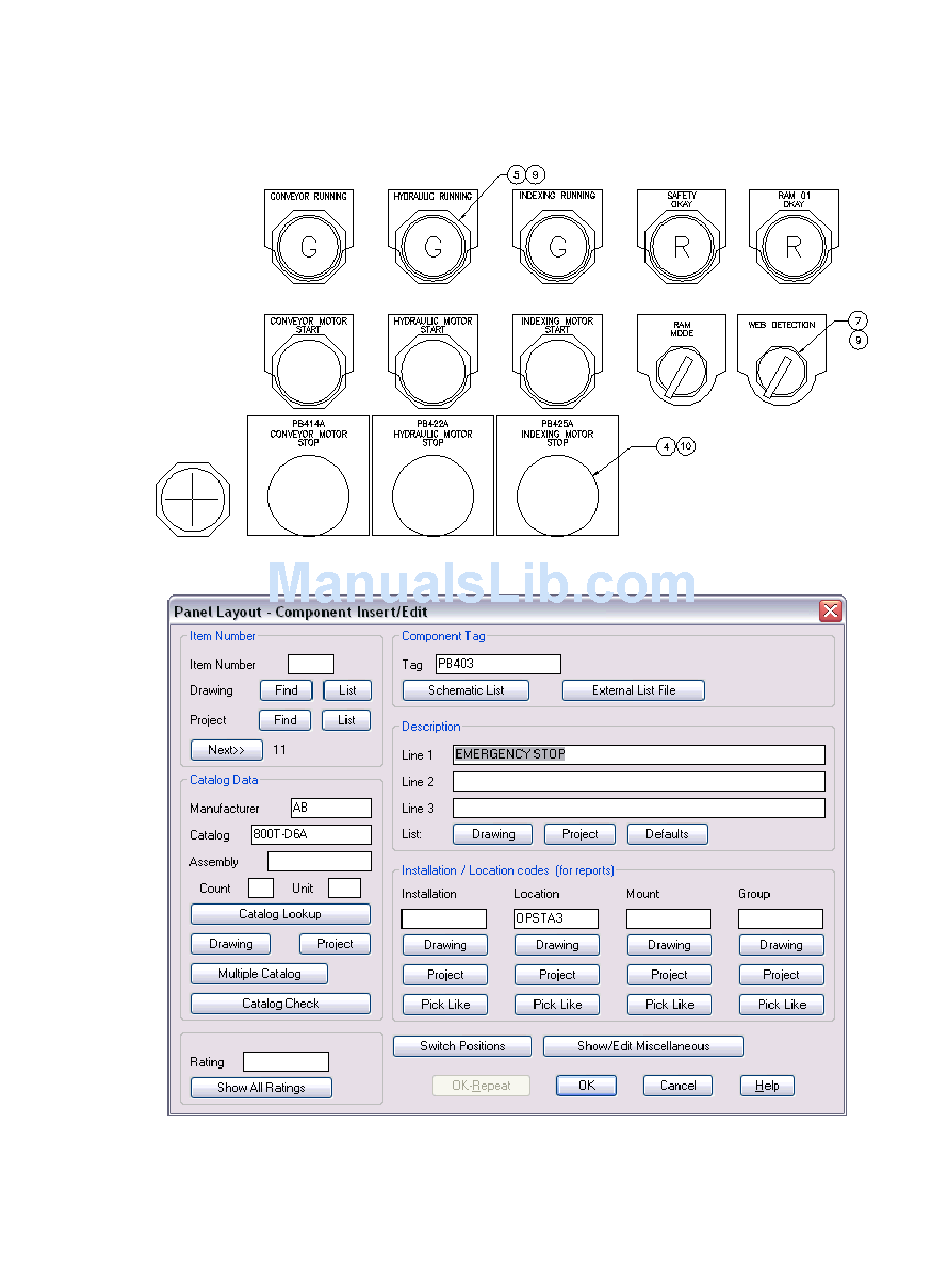

4 Respond to the prompts as follows:
Select Location for PB403: Select to the left of PB414A (1)
Select Location for PB403: <Ortho on> select ROTATION:
Right-click to place the push button
1
5 In the Panel Layout - Component Insert/Edit dialog box, click OK.
|
70
Chapter 6 Panel Layouts
