12

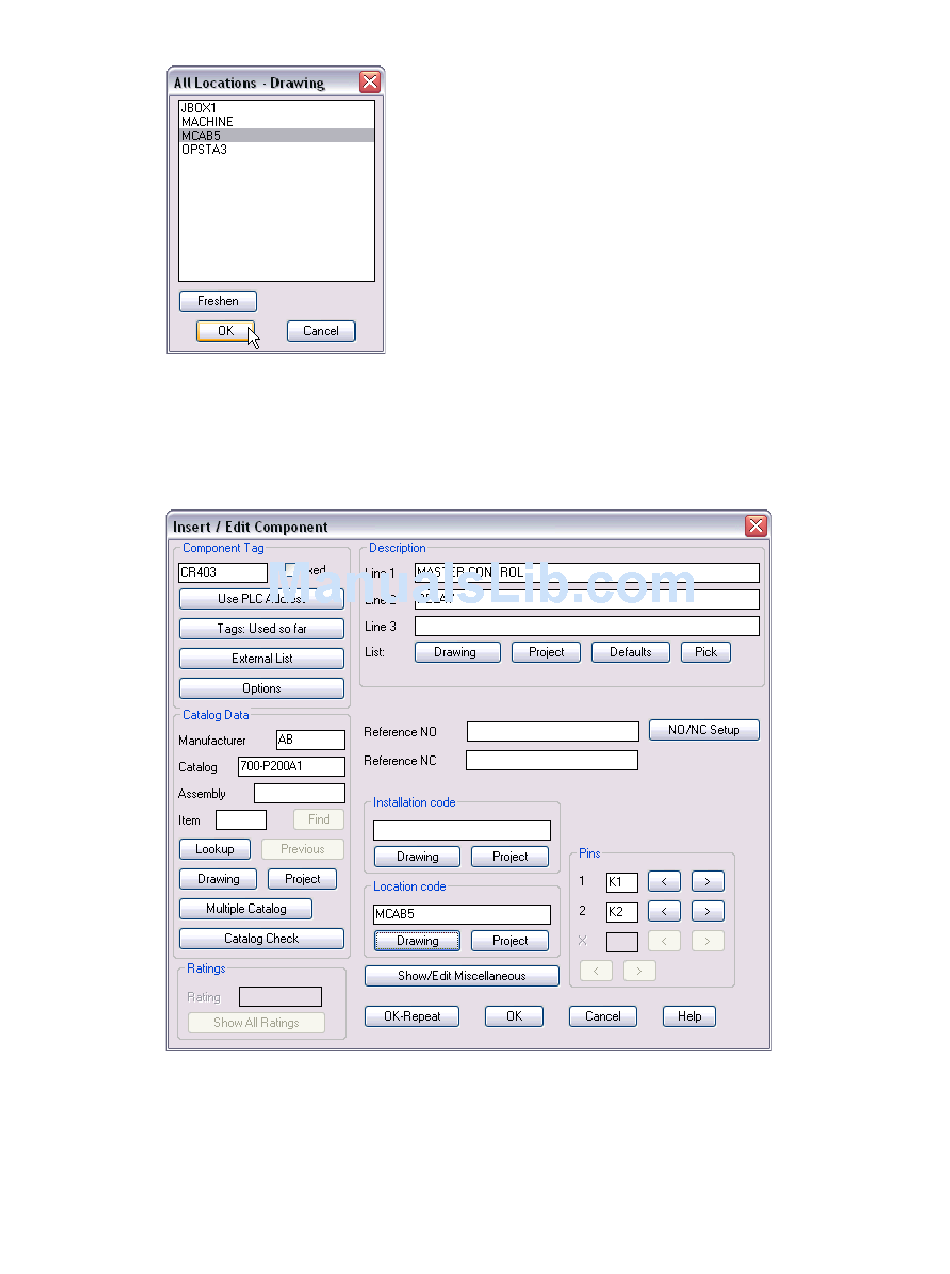

In the All Locations - Drawing dialog box, select MCAB5, and then click OK.
13
In the Insert/Edit Component dialog box, Pins section, notice that the
following pin values have been inserted based on the selected part:
Pins: 1: K1
Click OK.
Any values entered here are saved as attribute values on the symbol itself.
|
14
Chapter 2 Schematic Components
2: K2
