Removing Ladder Rungs

Use the wire cutters to remove the unused ladder rungs.
To remove ladder rungs
1 Click the Trim Wire tool.
Menu
2 Respond to the prompts as follows:
Fence/Zext/<Select wire to TRIM>: Enter F, press

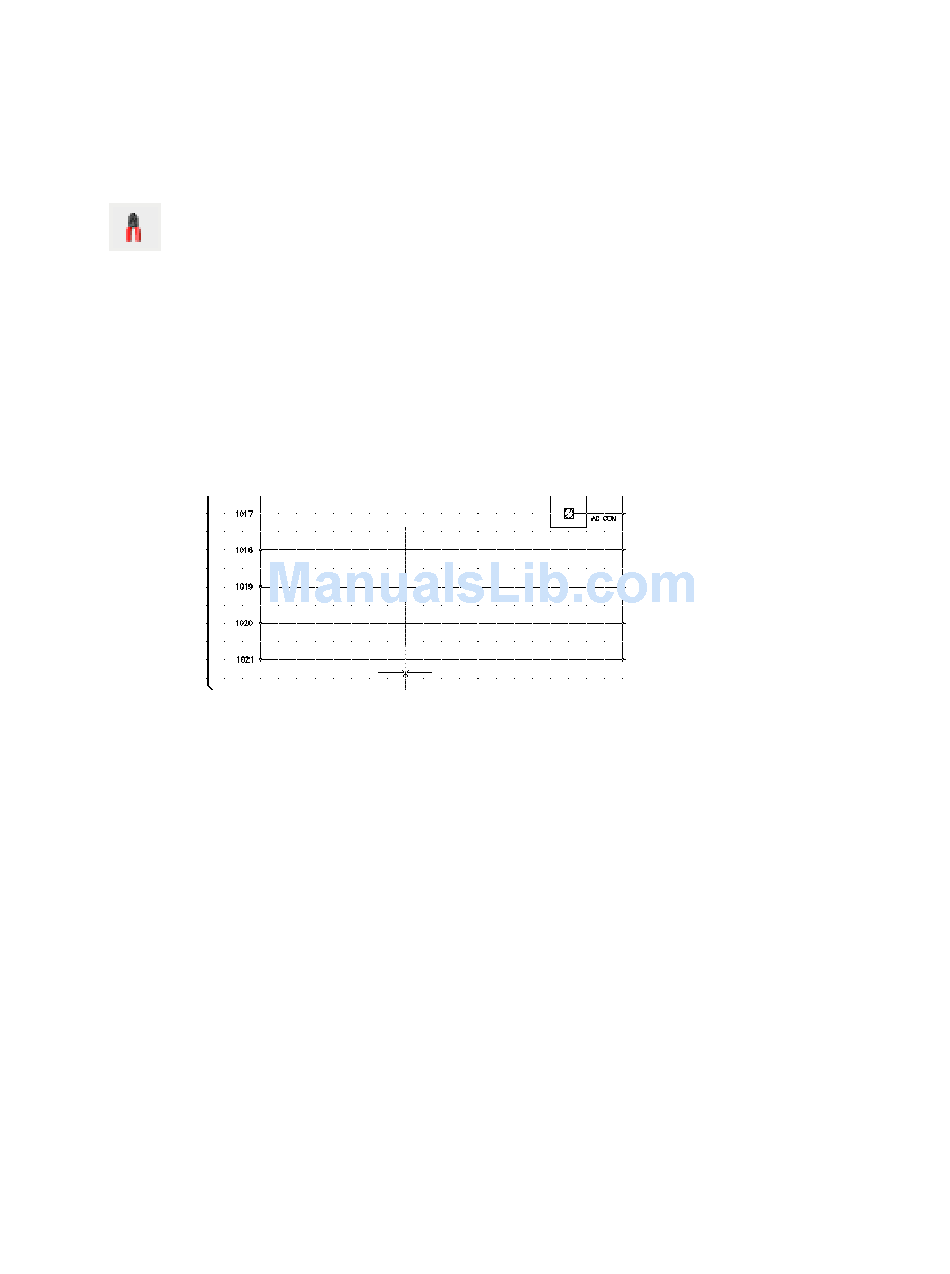

First fence point: Select above the ladder rung at line reference 1018 (1)
First fence point: to:
Drag through the last ladder rung at line reference 1021 (2), click
First fence point: to: to: Right-click the end the trim command
The ladder rungs are removed from your drawing.
Wires ➤ Trim Wire
1
2
ENTER
