6
In the Nameplate dialog box, Choice A section, verify the following values:
Manufacturer AB
Catalog 800T-X701
Click OK.
7
Respond to the prompts as follows:

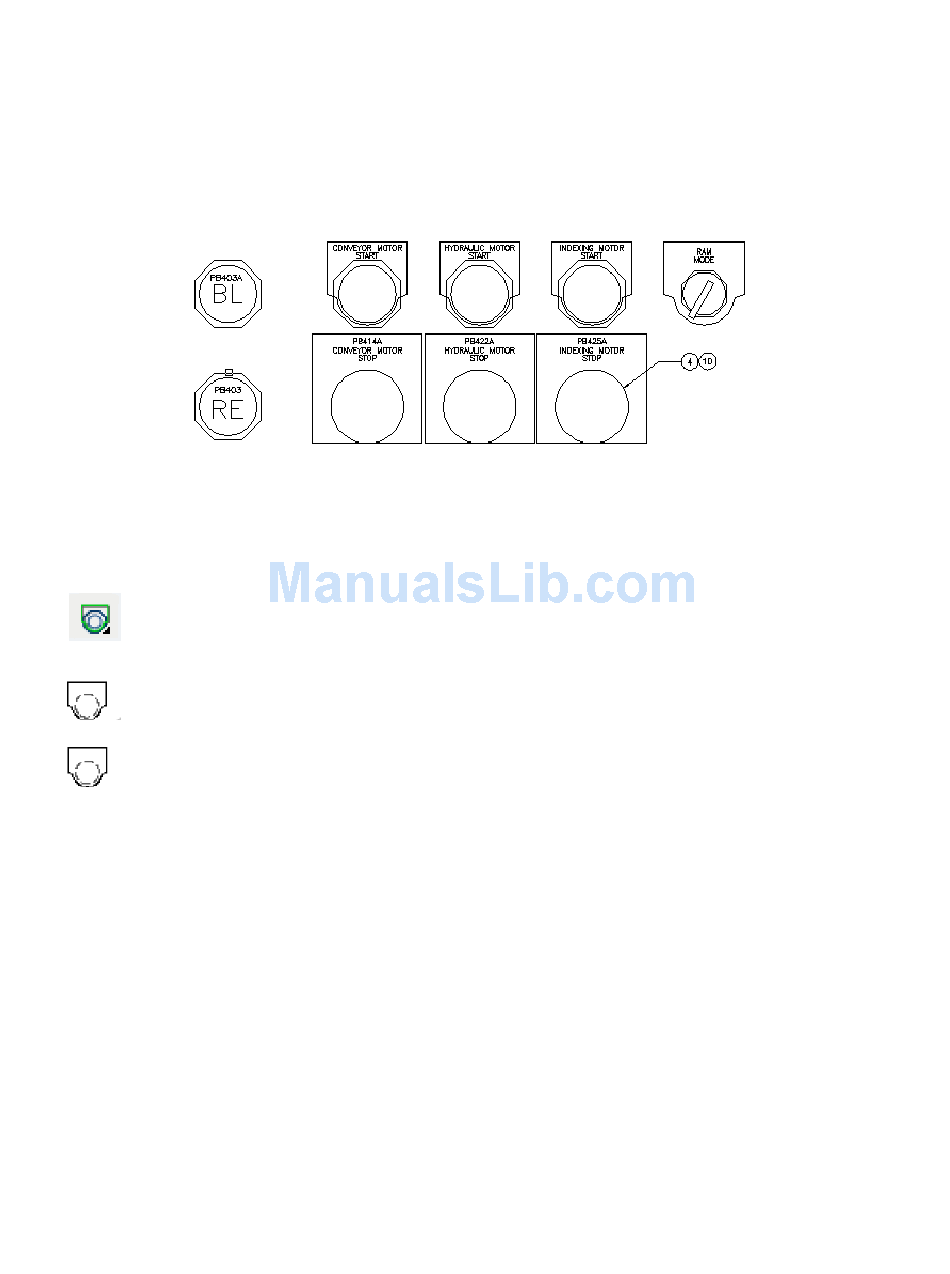

Select objects: Select PB403 (1), right-click to the place the nameplate
8
In the Panel Layout - Nameplate Insert/Edit dialog box, click OK to insert the
nameplate.
To insert a half round nameplate
1
Click the Insert Footprint tool.
Menu
2
In the Insert Footprint: Panel Layout Symbols dialog box, click the
Nameplates button.
3
In the Panel: Nameplates dialog box, click the Nameplate, Catalog Lookup
button.
4
In the Nameplate dialog box, Choice A section, click the Catalog lookup
button.
|
80
Chapter 6 Panel Layouts
1
Panel Layout ➤ Insert Footprint (Icon Menu)
