In the Insert Destination Code dialog box, verify the following value:
Code: 24 VDC NEUTRAL
12
Click the OK + Update Source button.

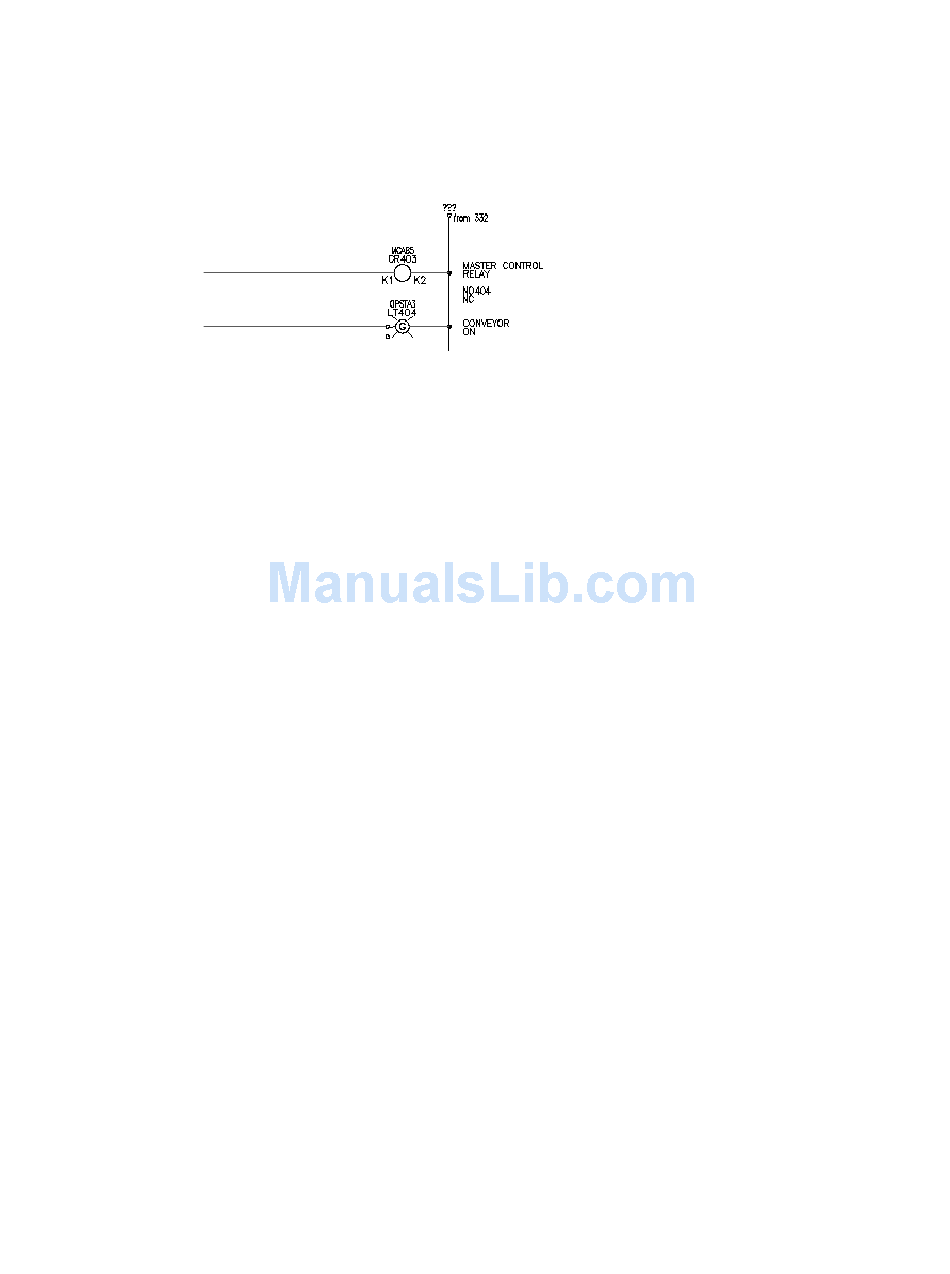

Notice the cross-references for your signal are inserted into the drawing
above the neutral wire.
Now you can view the new signals.
Attaching Destination Signal Arrows
|
57
