Autodesk AUTOCAD ELECTRICAL 2005 Getting Started page 58

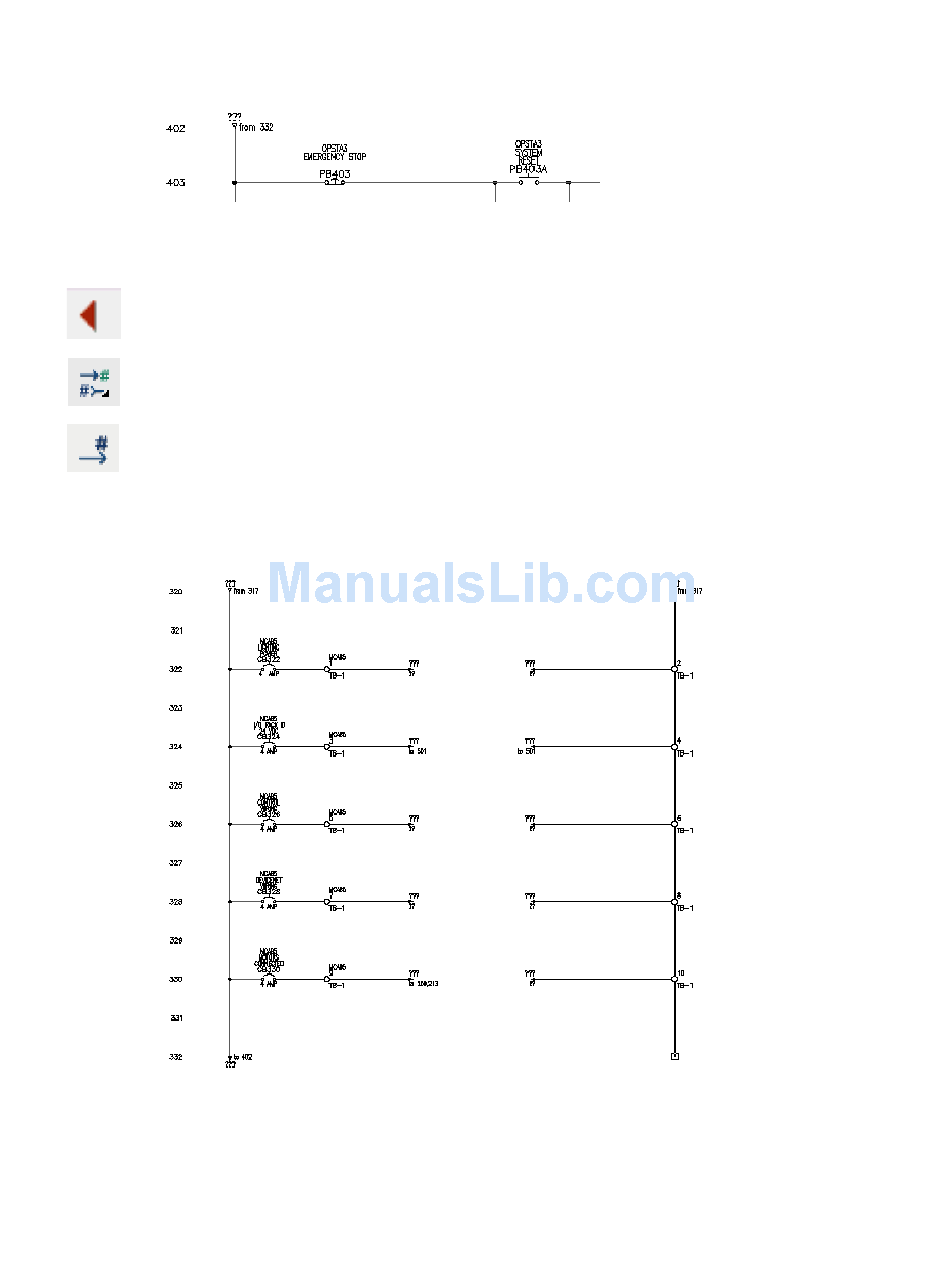

Notice the cross-references for your signal are inserted into the drawing
above the hot wire.
Use the same procedure to attach source and destination signals to the neutral
wires.
1 Click the Previous Project Drawing button to return to demo03.dwg.
2 Click the drop-down arrow on the Source Destination Signals tool to access
the Source Signal Arrow tool.
Menu
3 Respond to the prompts as follows:
Select wire end for Source:
Select the bottom of the neutral wire at line reference 332 (3)
|
54
Chapter 5 Wire Numbers
Wires ➤ Signal References ➤ Source Signal Arrow
3
