Inserting Nameplate Footprints
You are now ready to add nameplates to the panel layout.
To insert an automotive type name plate
1
Click the Insert Footprint tool.
Menu
2
In the Insert Footprint: Panel Layout Symbols dialog box, click the
Nameplates button.
3
In the Panel: Nameplates dialog box, click the Nameplate, Catalog Lookup
button.
4

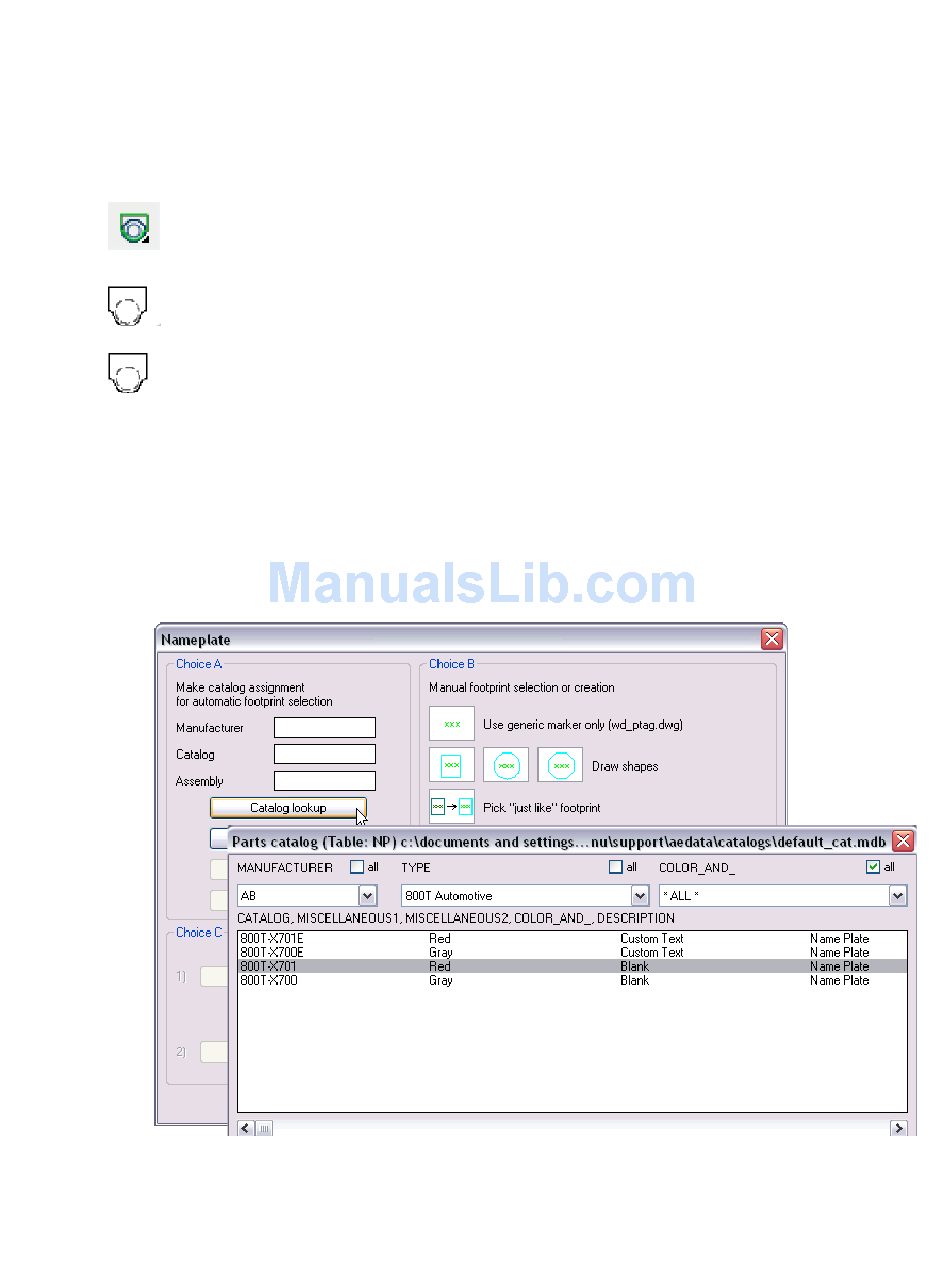

In Nameplate dialog box, Choice A section, click the Catalog lookup button.
5
In the Parts Catalog dialog box, select:
MANUFACTURER AB
TYPE 800T Automotive
COLOR_AND_ *ALL*
CATALOG, MISCELLANEOUS1, MISCELLANEOUS2, COLOR_AND_,
DESCRIPTION 800T-X701 Red Blank Name Plate
Click OK.
Panel Layout ➤ Insert Footprint (Icon Menu)
Inserting Nameplate Footprints
|
79
