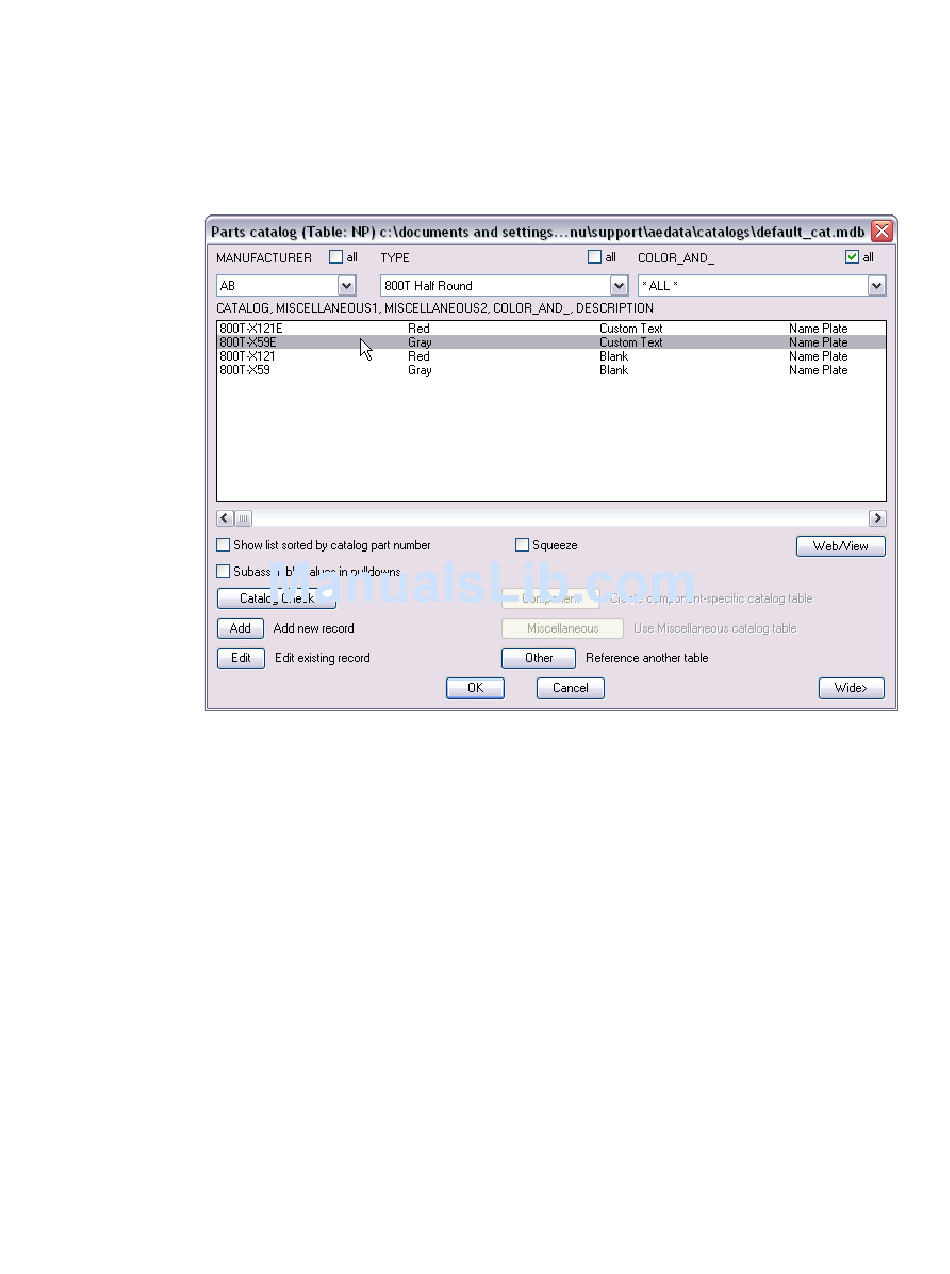

In the Parts Catalog dialog box, select:
MANUFACTURER AB
TYPE 800T Half Round
COLOR_AND_ *ALL*
CATALOG, MISCELLANEOUS1, MISCELLANEOUS2, COLOR_AND_,
DESCRIPTION 800T-X59E Gray Custom Text Name Plate
Click OK.
6
In the Footprint dialog box, Choice A section, verify the following values:
Manufacturer AB
Catalog 800T-X59E
Click OK.
Inserting Nameplate Footprints
|
81
