Adding Drawing Descriptions
Add a description to define the drawing you added to the project.

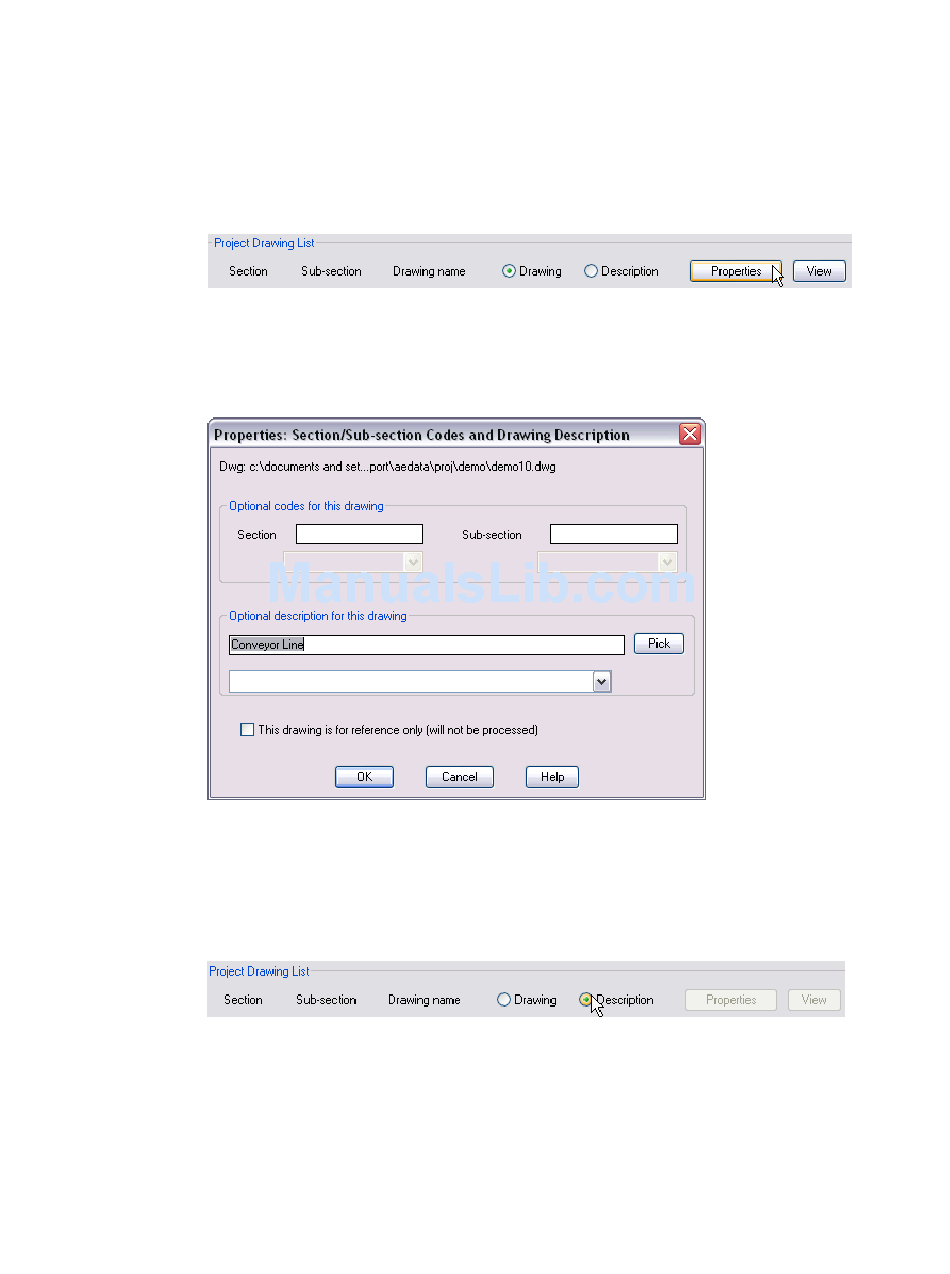

To add a drawing description
1
In the Project Aegs dialog box, highlight DEMO10.dwg, and then click the
Properties button.
2
In the Properties: Section/Sub-section Codes and Drawing Description dialog
box, Optional description for this drawing section, specify:
Conveyor Line
Click OK.
The description is now added to your drawing.
3
In the Project Aegs dialog box, Project Drawing List section, select the
Description button to view the drawing descriptions.
This is the end of this tutorial chapter.
