NOTE
The Panel Layout - Component Insert/Edit dialog box is displayed each
time you insert a panel footprint. Information from the schematic representation
is automatically carried over to the panel footprint representation.
Now you're ready to insert the system reset button on the panel layout.
To manually insert the system reset footprint
1

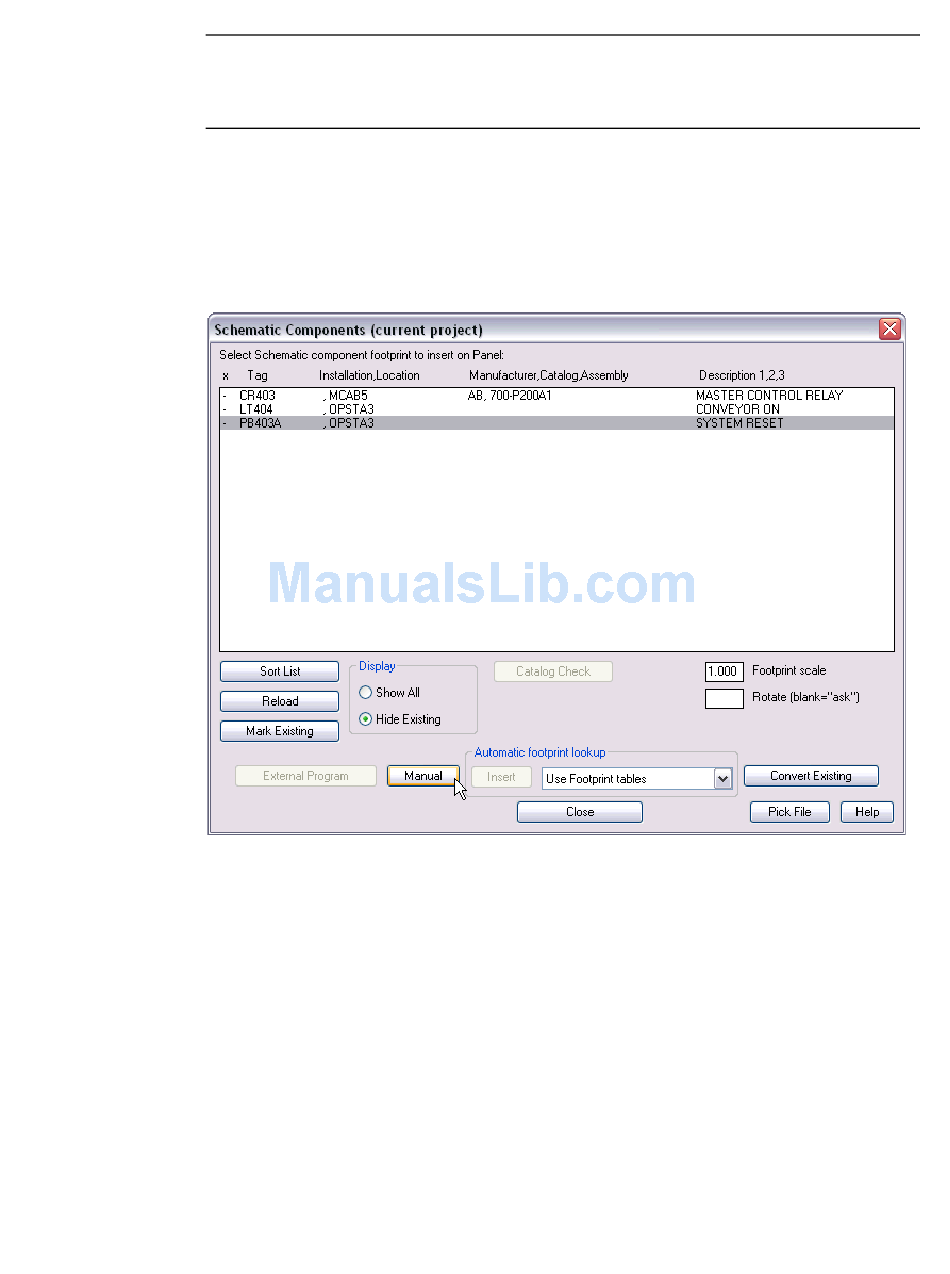

In the Schematics Components (current project) dialog box, select:
PB403A OPSTA3 SYSTEM RESET, and then click the Manual button.
2
In the Footprint dialog box, Choice A section, click the Catalog lookup
button.
Inserting Panel Components
|
71
