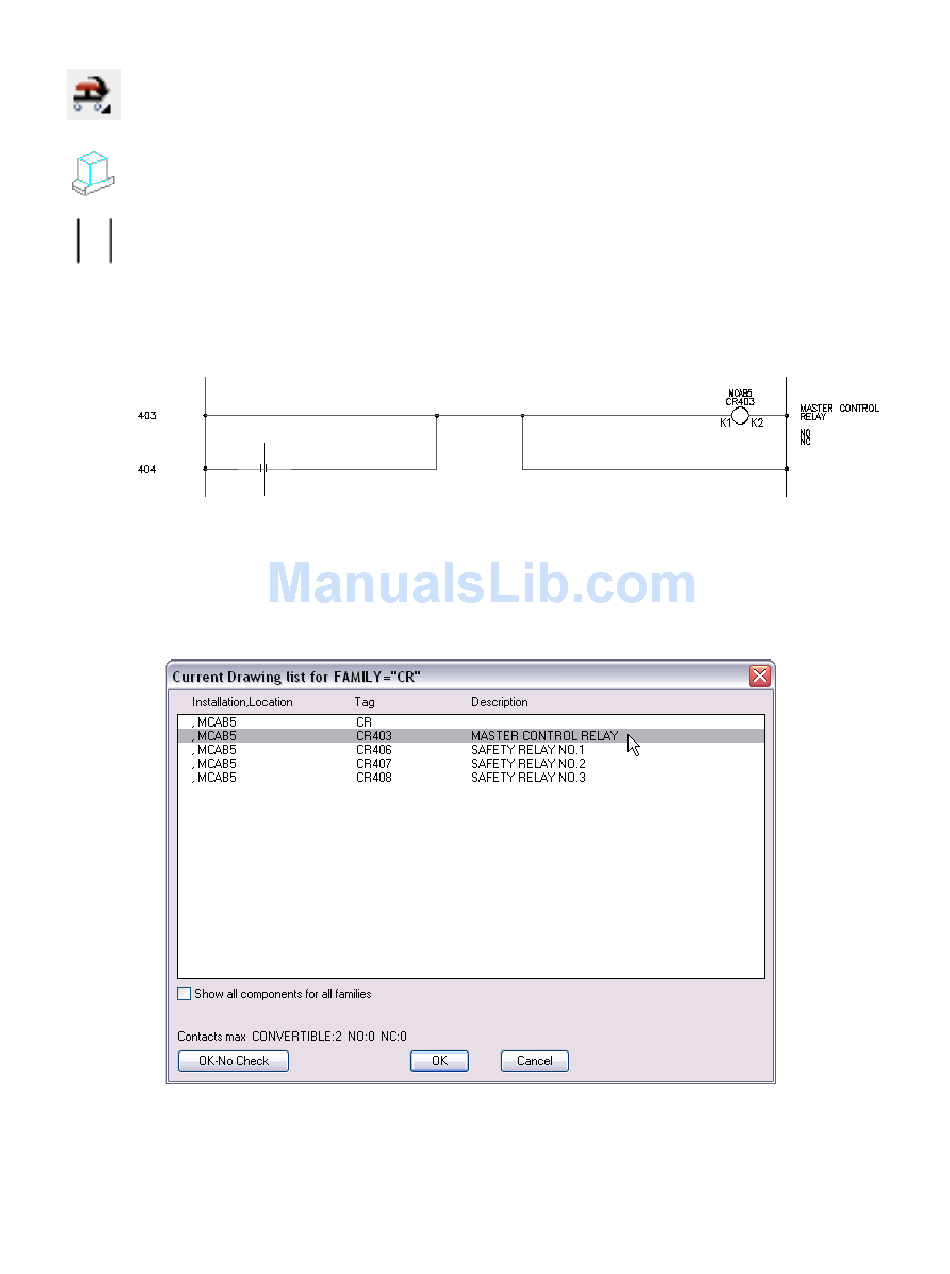

To insert a child component
1
Click the Insert Component tool.
Menu
2
In the Insert Component: JIC Schematic Symbols dialog box, click the Relays
and Contacts button.
3
In the JIC: Relays and Contacts dialog box, click the Relay N.O. Contact
button.
4
Respond to the prompts as follows:
Specify insertion point:
Position the cursor on the wire at line reference 404 near the hot wire and click (2)
5
In the Insert/Edit Child Component dialog box, Component Tag section,
click the Drawing button.
6
In the Current Drawing list for FAMILY="CR" dialog box, select:
MCAB5 CR403 MASTER CONTROL RELAY
Click OK.
|
16
Chapter 2 Schematic Components
Components ➤ Insert Component
2
