Aligning Components

Align the normally open relay with an existing component. After inserting a
component, you can align or edit it as necessary.
To align a component.
1 Click the drop-down arrow on the Scoot tool to access the Align Components
tool.
Menu
2 Respond to the prompts as follows:

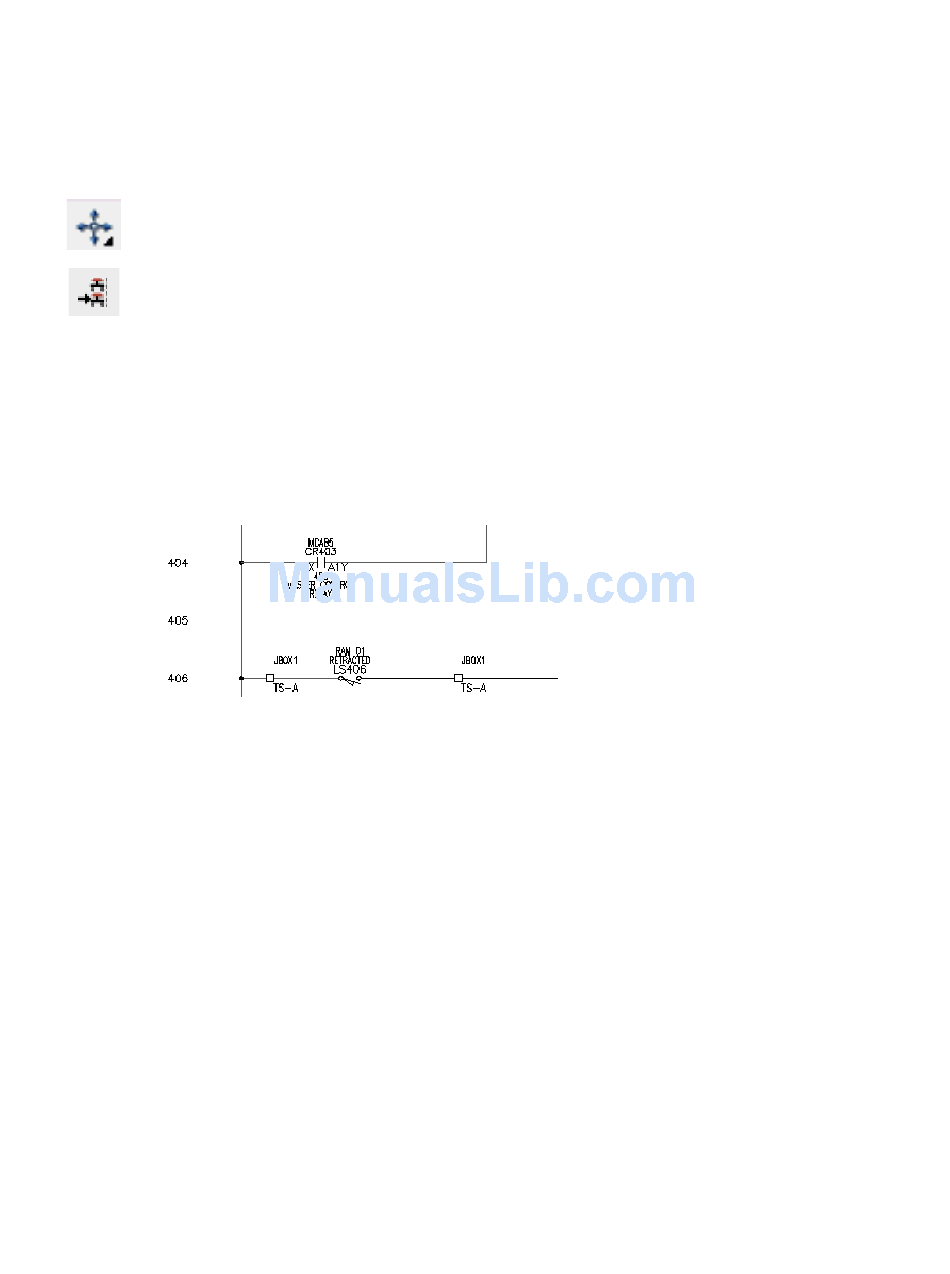

Pick component to align with (Horizontal/<Vertical>): Select the normally open
limit switch component near the hot wire at line reference 406 (1)
A dashed line appears.
Select objects: Select the previously inserted child contact component near the hot
wire at line reference 404 (2)
3 Right-click the selection.
The aligned component is placed.
Continue inserting your components.

Inserting Push Buttons

Insert a button for emergency stops.
|
18
Chapter 2 Schematic Components
Components ➤ Align
2
1
