Using Multiple Insert Component

You can insert components into wires that are tied to the PLC module. You
can use the Multiple Insert Component tool to insert a string of normally
open limit switches.

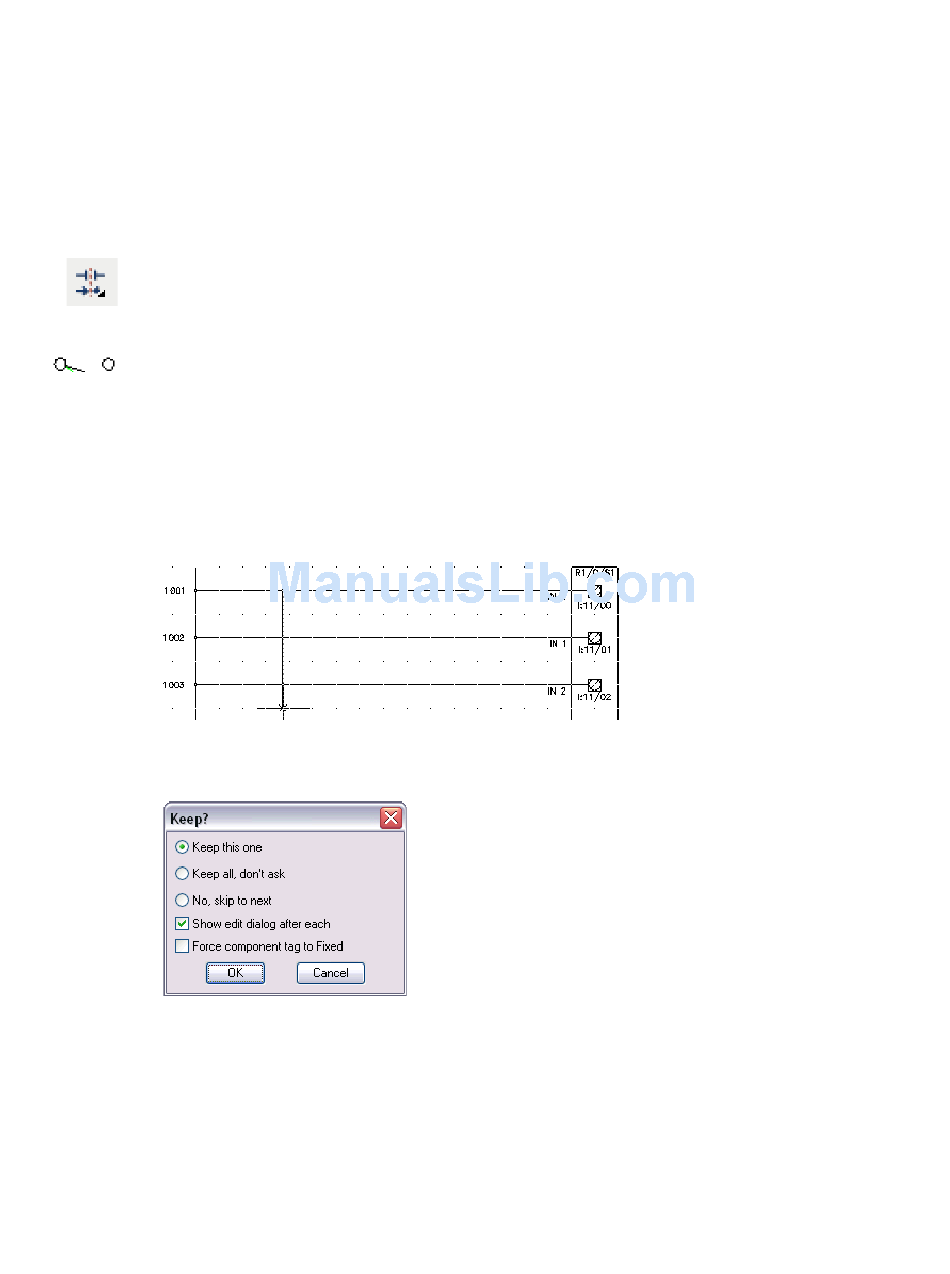

To insert a limit switch
1 Click the Multiple Insert Component tool.
Menu
2 In the Insert Component: JIC Schematic Symbols dialog box, click the Limit
Switches button.
3 In the JIC: Limit Switches dialog box, select Limit Switch, N.O.
4 Respond to the prompts as follows:
Component Fence, From Point: Select above the wire at line reference 1001 (1)
Component Fence, From Point: to: Drag below the wire at line reference 1003,
click the point (2), right-click to end command
5 In the Keep dialog box, select Keep this one, Show edit dialog after each, and
then click OK.
6 In the Insert/Edit Component dialog box, verify the following value:
Component Tag: LS1001
|
44
Chapter 4 PLC
Components ➤ Multiple Insert ➤ Multiple Insert (Icon Menu)
1
2
