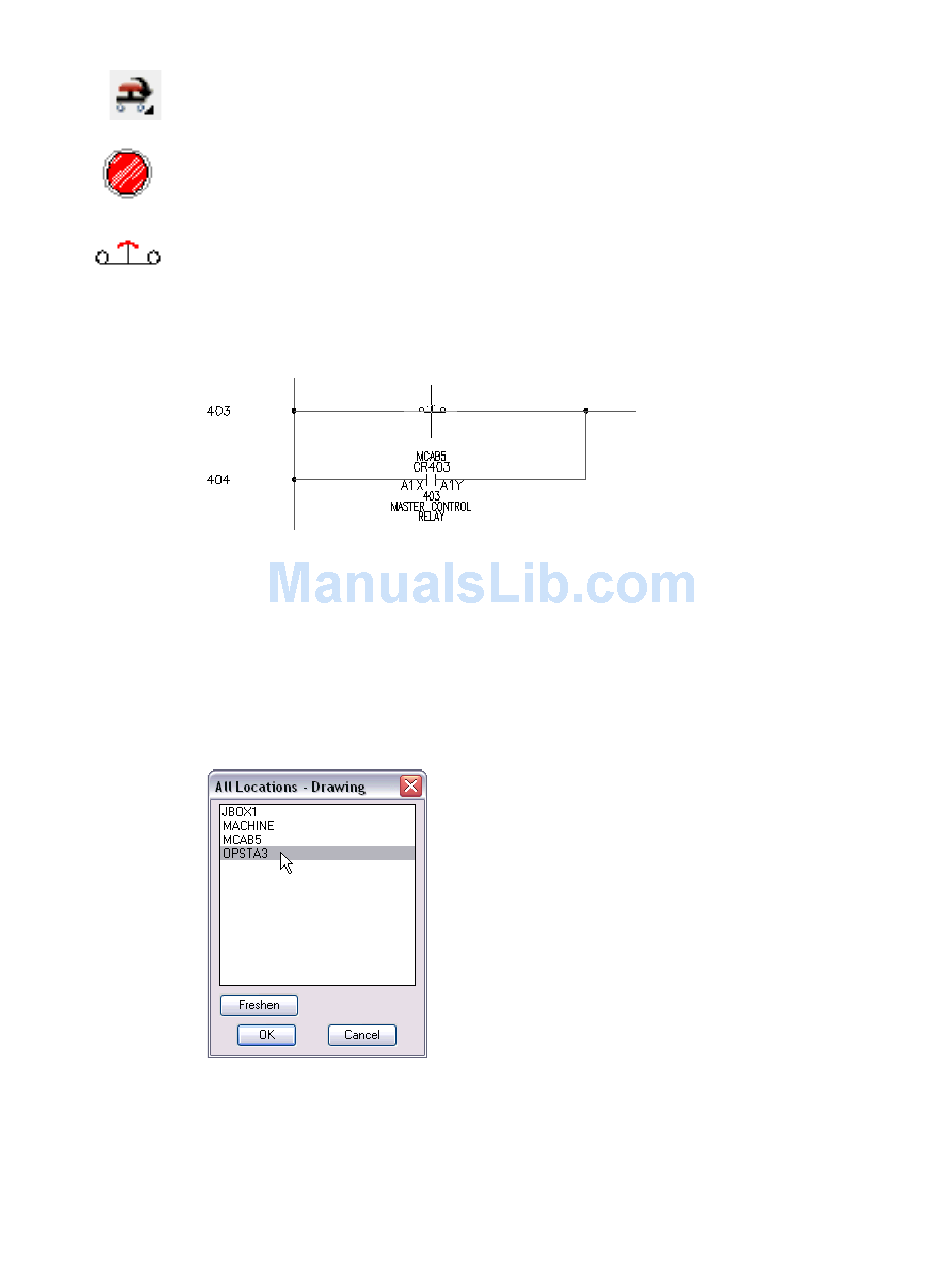

To insert a push button
1
Click the Insert Component tool.
Menu
2
In the Insert Component: JIC Schematic Symbols dialog box, click the Push
Buttons button.
3
In the JIC: Push Buttons dialog box, click the Mushroom Head N.C. push
button.
4
Respond to the prompts as follows:
Specify insertion point: Position the push button on the wire at line reference 403
near the hot wire and click (3)
5
In the Insert/Edit Component dialog box, verify the following value:
Component Tag: PB403
In the Description section, specify:
Line 1: EMERGENCY STOP
In the Location code section, click the Drawing button.
6
In the All Locations - Drawing dialog box, select OPSTA3, and then click OK.
7
In the Insert/Edit Component dialog box, click OK.
Components ➤ Insert Component
3
Inserting Components
|
19
