5
In the Insert/Edit Component dialog box, specify the following value:
Component Tag: PB403A
In the Description section, specify:
Line 1: SYSTEM
Line 2: RESET
In the Location code section, click the Drawing button.
6

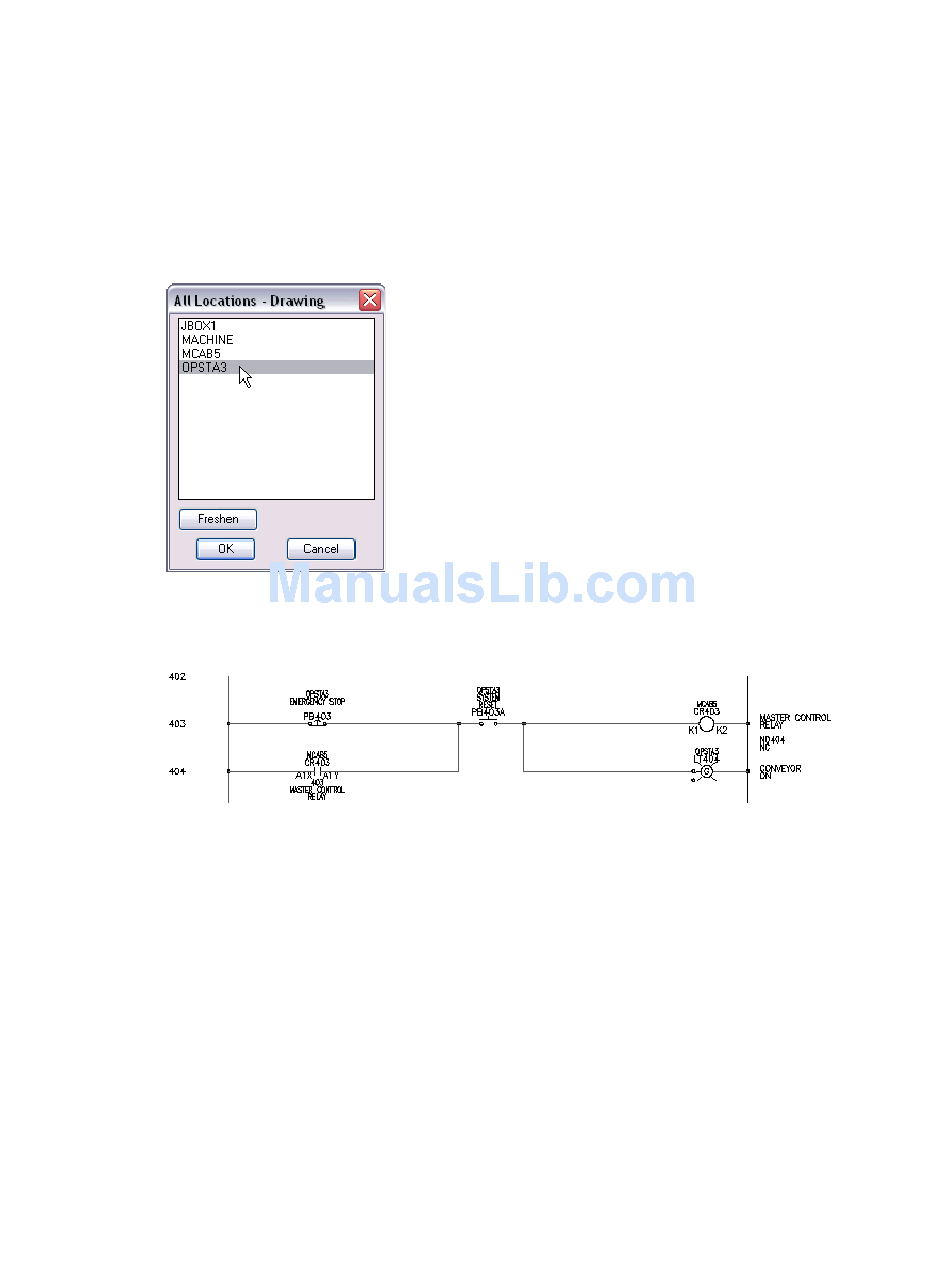

In the All Locations - Drawing dialog box, select OPSTA3, and then click OK.
7
Click OK on the Insert/Edit Component dialog box.
Your finished schematic should resemble the following:
|
22
Chapter 2 Schematic Components
