To manually insert the emergency stop footprint
1

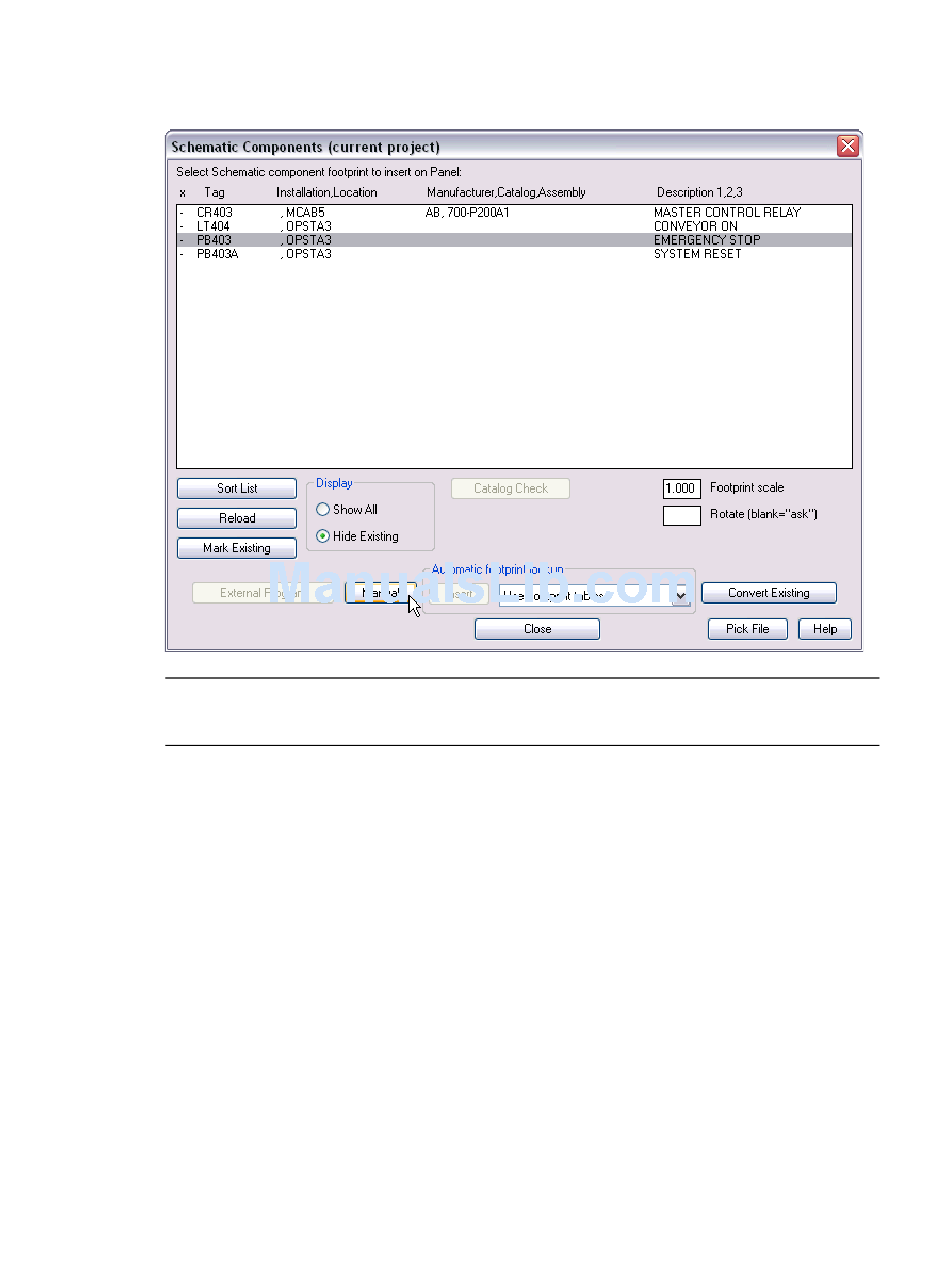

In the Schematic Components (current project) dialog box, select:
PB403 OPSTA3 EMERGENCY STOP, and then click the Manual button.
NOTE
not have a manufacturer and catalog number defined.
Next, you need to define a catalog assignment for an automatic footprint
selection.
|
68
Chapter 6 Panel Layouts
The Manual button is used when schematic component footprints do
