Inserting Pilot Lights

Use the JIC: Pilot Lights dialog box to insert a pilot light.

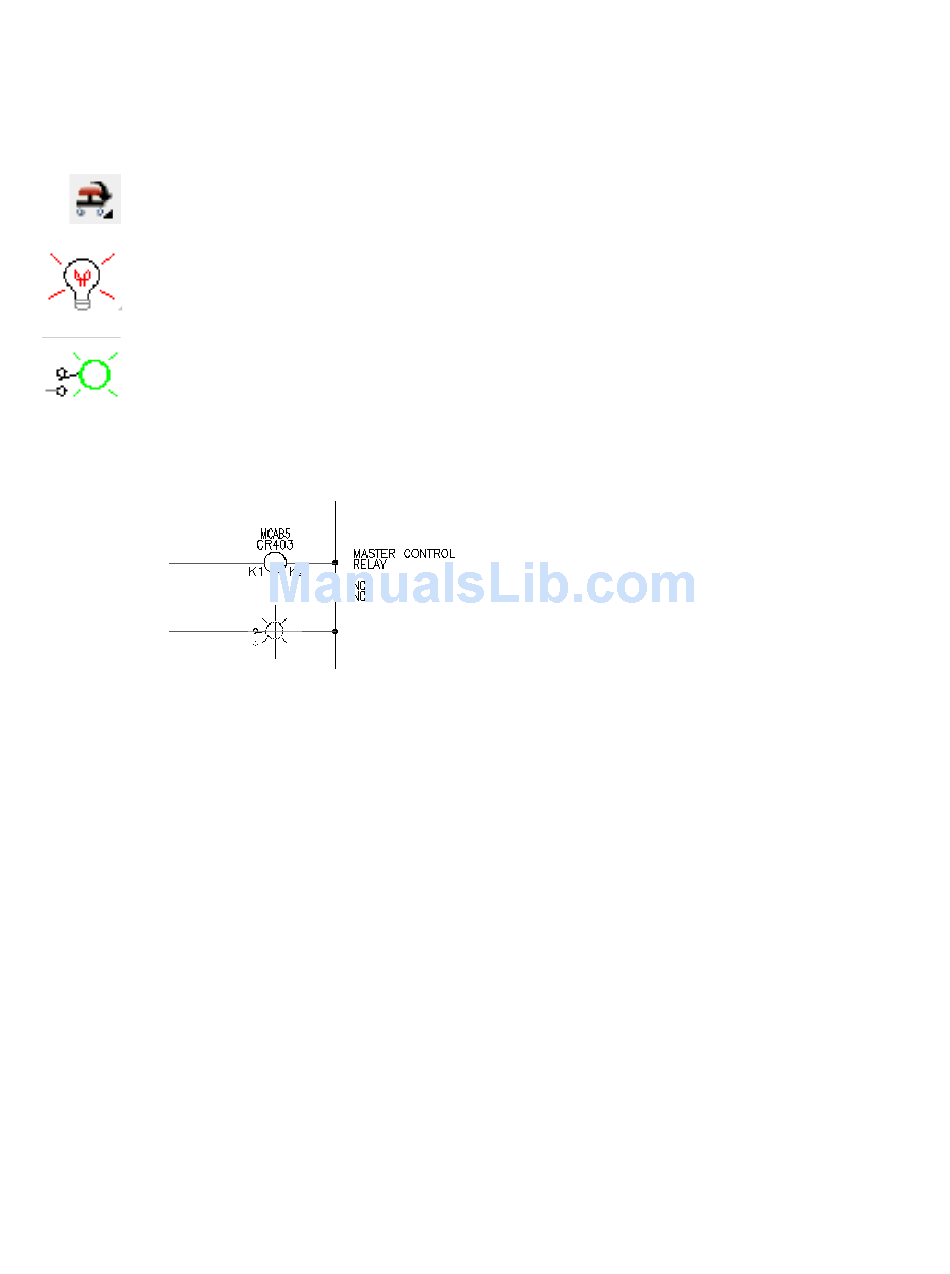

To insert a pilot light
1 Click the Insert Component tool.
Menu
2 In the Insert Component: JIC Schematic Symbols dialog box, click the Pilot
Lights button.
3 In the JIC: Pilot Lights dialog box, click the Green Press to Test Button.
4 Respond to the prompts as follows:
Specify insertion point: Position the push button on the wire at line reference 404
near the neutral wire and click (4)
5 In the Insert/Edit Component dialog box, verify the following value:
Component Tag: LT404
In the Description section, specify:
Line 1: CONVEYOR
Line 2: ON
In the Location code section, click the Drawing button.
|
20
Chapter 2 Schematic Components
Components ➤ Insert Component
4
