Working with Templates
In AutoCAD Electrical, you can use templates (*.dwt files) to create drawings.
Predefined templates, which contain settings for various drawings, such as
acad.dwt or ACAD_ELECTRICAL.dwt, are supplied with AutoCAD Electrical.
You can create your own templates, or use any drawing as a template. When
you use a drawing as a template, the settings in that drawing are used in the
new drawing.
Selecting Templates
Use the AutoCAD Electrical template to start a new drawing.
To select a template
Select File ➤ New.
1
2

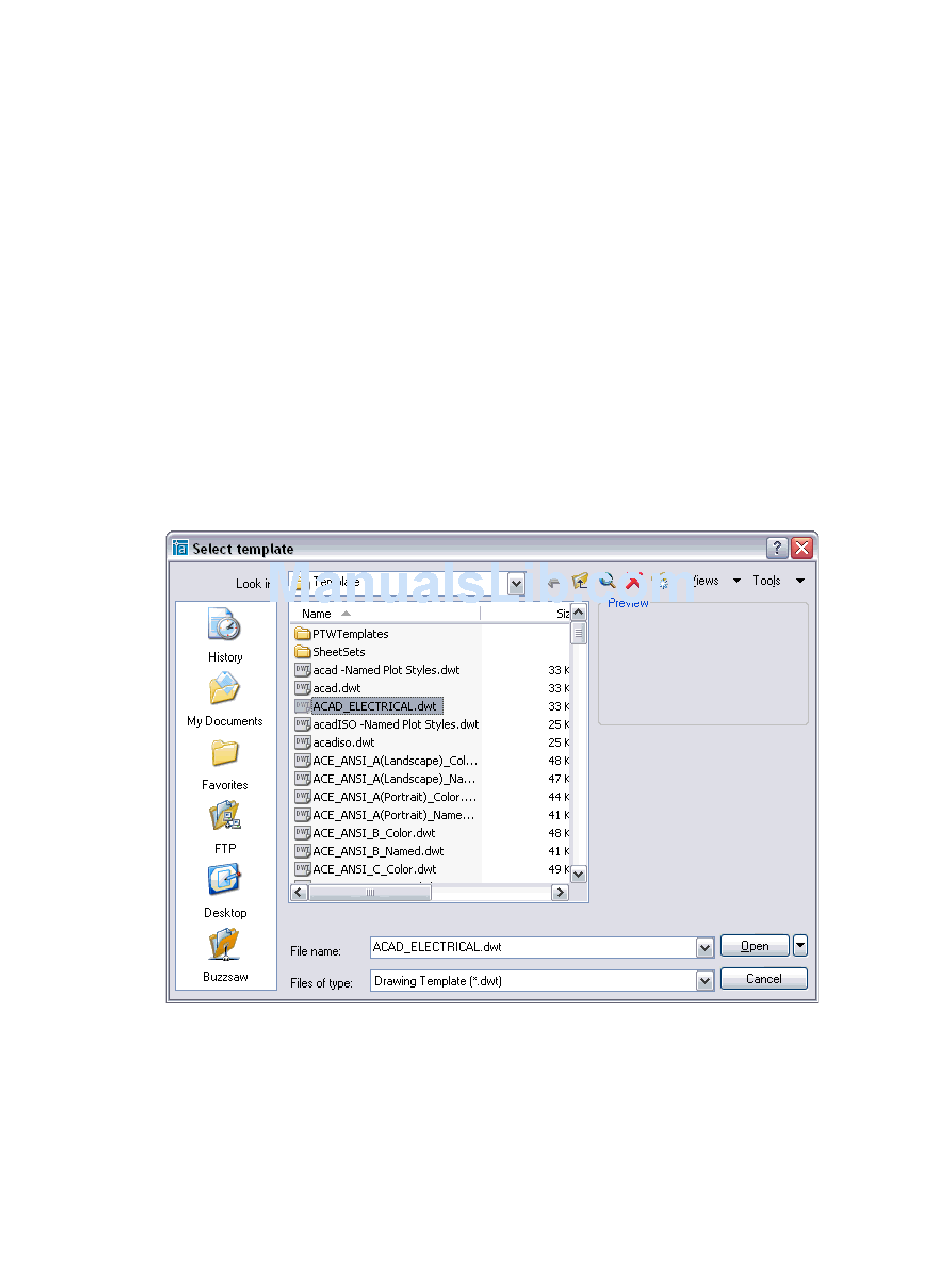

In the Select template dialog box, select ACAD_ELECTRICAL.dwt, and the
click Open.
|
26
Chapter 3 Drawings
