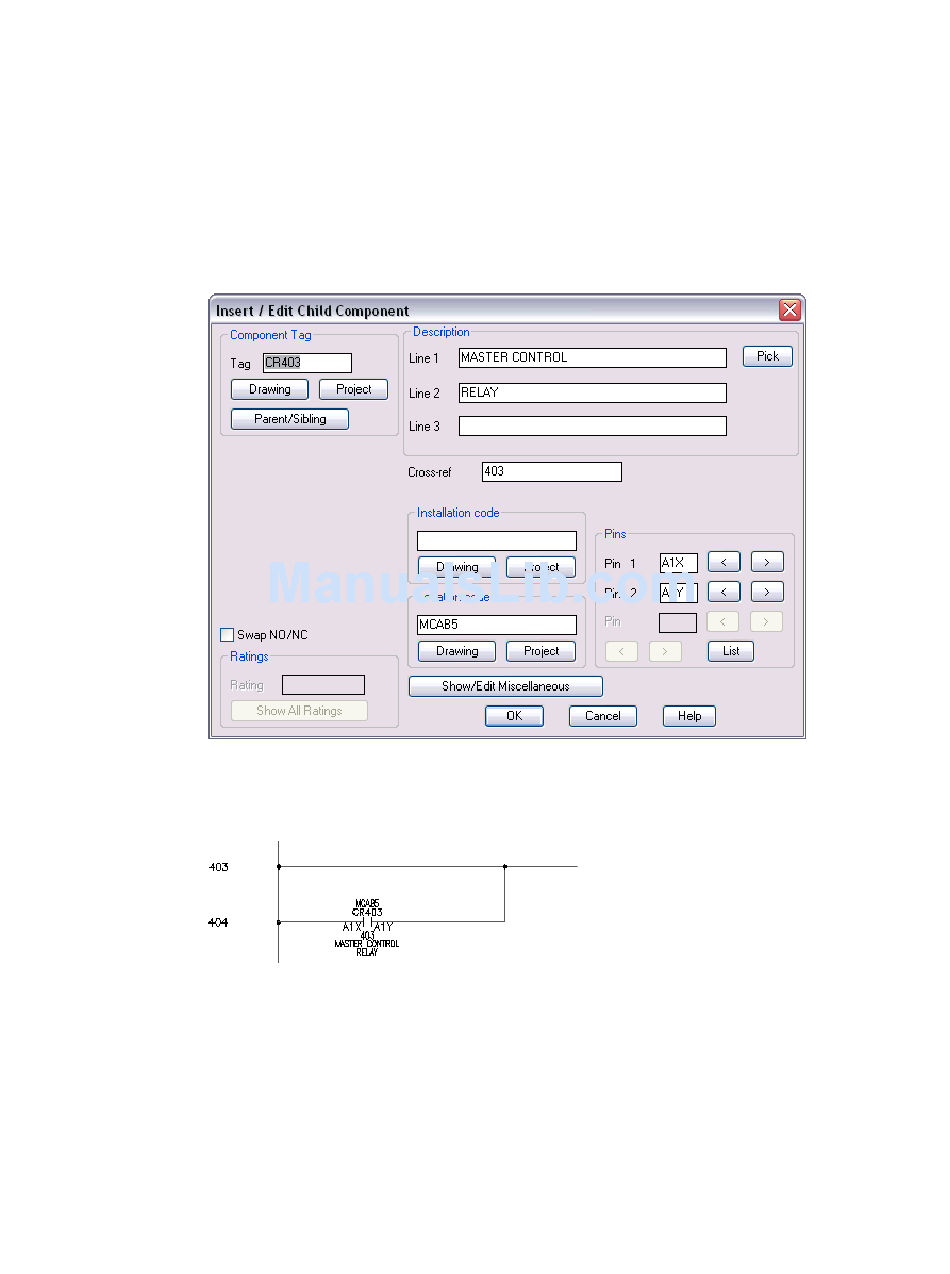

In the Insert/Edit Child Component dialog box, verify that the following
options are specified:
Component Tag: Tag: CR403
Description: Line 1: MASTER CONTROL
Line 2: RELAY
Cross-ref: 403
Location code: MCAB5
Pins: Pin 1: A1X
Pin 2: A1Y
Click OK.
The child component is inserted:
If necessary, use Edit Component to modify changes.
|
17
