5
In the Insert/Edit Component dialog box, verify the Component Tag is set to
CR403, and then click the Lookup button in the Catalog Data section of the
dialog box.
6

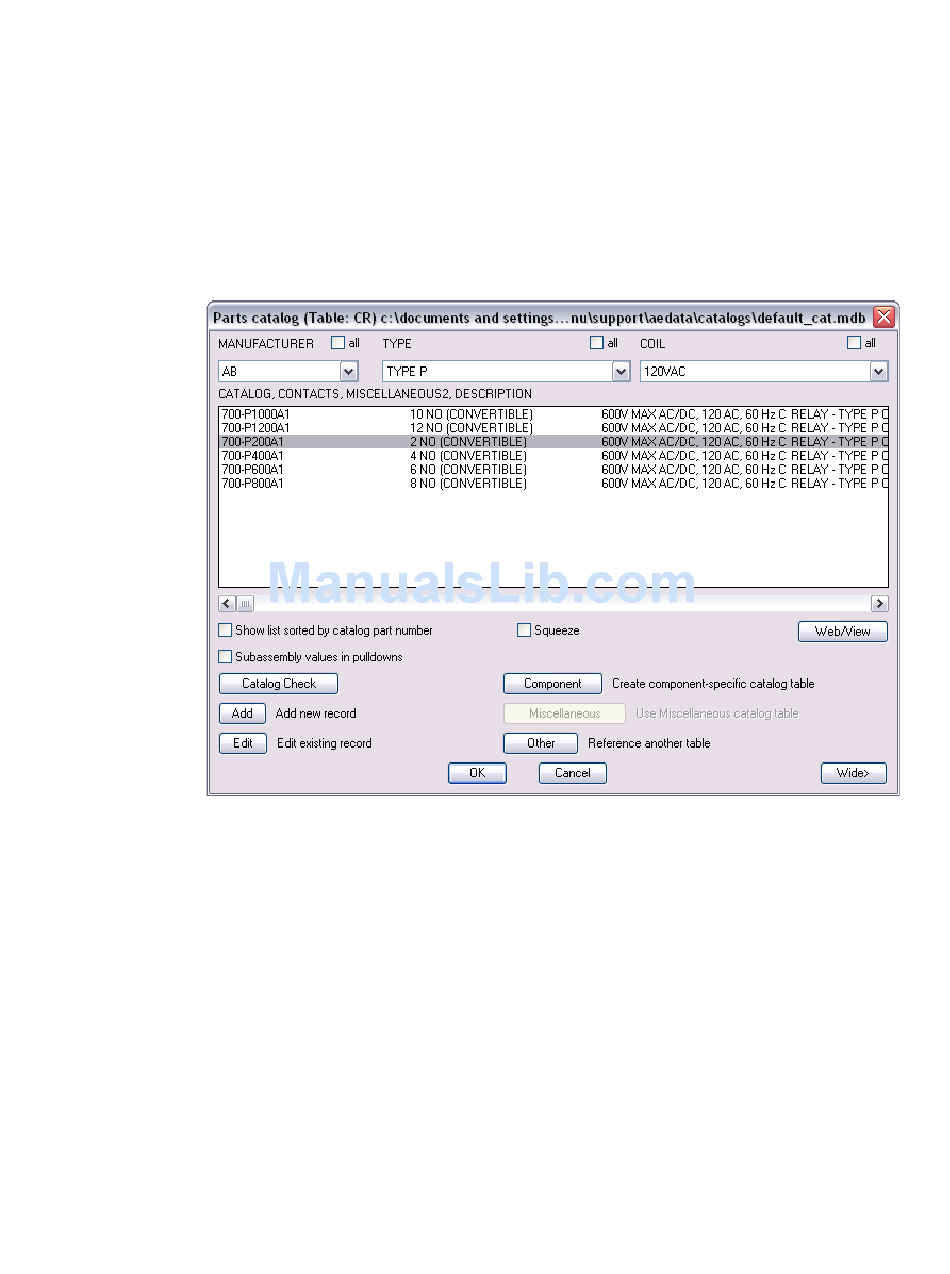

In the Parts catalog list dialog box, select:
MANUFACTURER: AB
TYPE: TYPE P
In the CATALOG, CONTACTS, MISCELLANEOUS2, DESCRIPTION list, select
Catalog Number: 700-P200A1
7
Click the Catalog Check button to display the BOM information associated
with the selected part number.
8
In the Bill Of Materials Check dialog box, click the Close button.
9
In the Parts catalog dialog box, click OK.
10
In the Insert/Edit Component dialog box, Description section, specify:
Line 1: MASTER CONTROL
Line 2: RELAY
11
In the Insert/Edit Component dialog box, Location code section, click the
Drawing button.
Inserting Components
|
13
