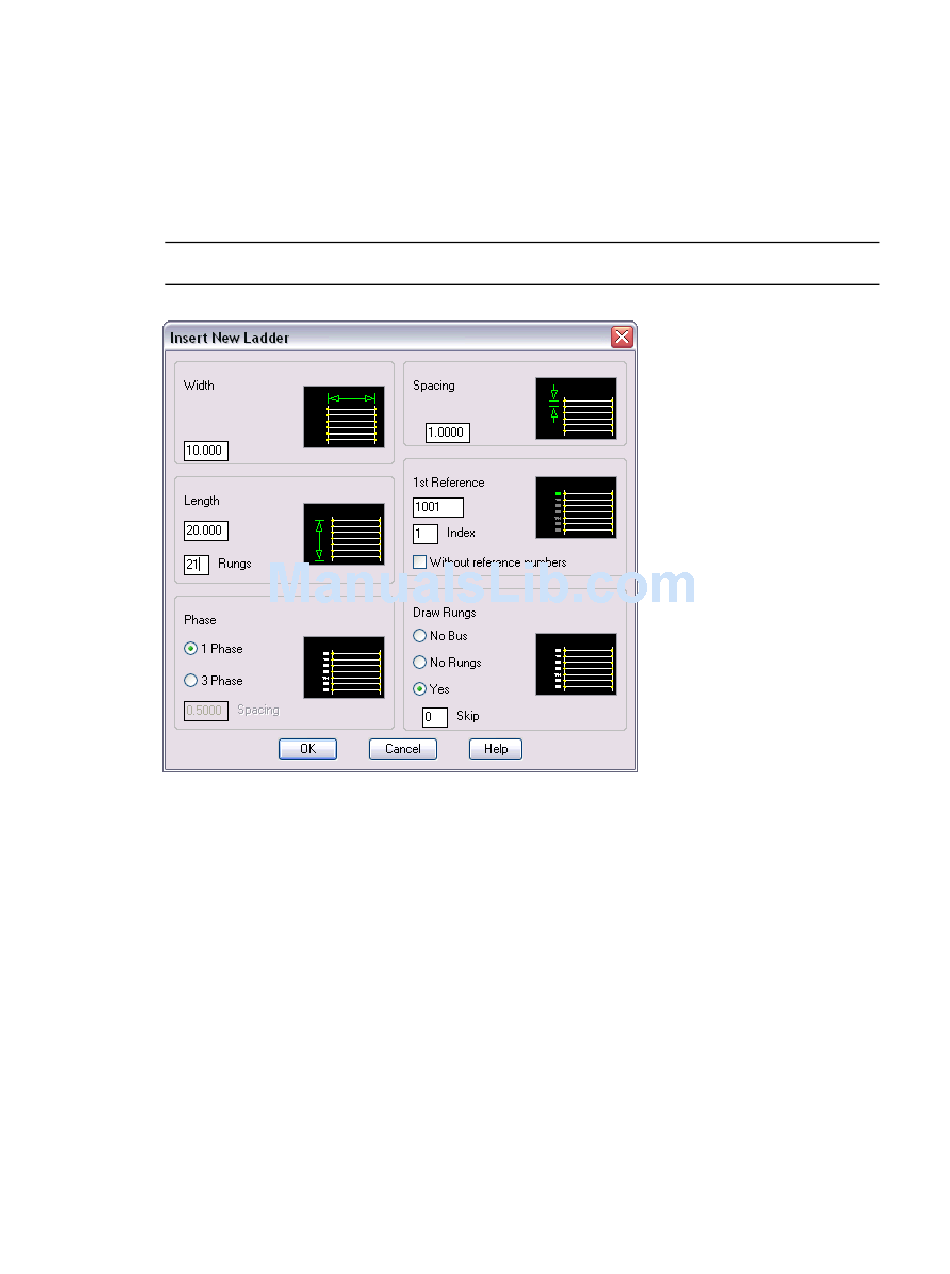

3 In the Insert New Ladder dialog box, specify:
Width: 10.000
Spacing: 1.0000
1st ref: 1001
Length: 20.000
Rungs: 21
Phase: 1 Phase
Reference 1001 represents Page 10, Reference 01.
NOTE
Click OK.
|
