In the Description section, specify:
Line 1: PALLET ENTERING
Line 2: STATION
In the Location code section, specify: MACHINE
Click OK.
NOTE In the Insert/Edit Component dialog box, Component Tag section, you
can use the Use PLC Address button to add the I/O Address as the component tag.
7 In the Keep dialog box, select Keep this one, Show edit dialog after each, and
then click OK.
8 In the Insert/Edit Component dialog box, verify the following values:
Component Tag: LS1002
Location code: MACHINE
In the Description section, specify:
Line 1: PALLET INSIDE
Line 2: STATION
Click OK.
9 In the Keep dialog box, select Keep this one, Show edit dialog after each, and
then click OK.
10 In the Insert/Edit Component dialog box, verify the following values:
Component Tag: LS1003
Location code: MACHINE
In the Description section, specify:
Line 1: PALLET LEAVING
Line 2: STATION
Click OK.

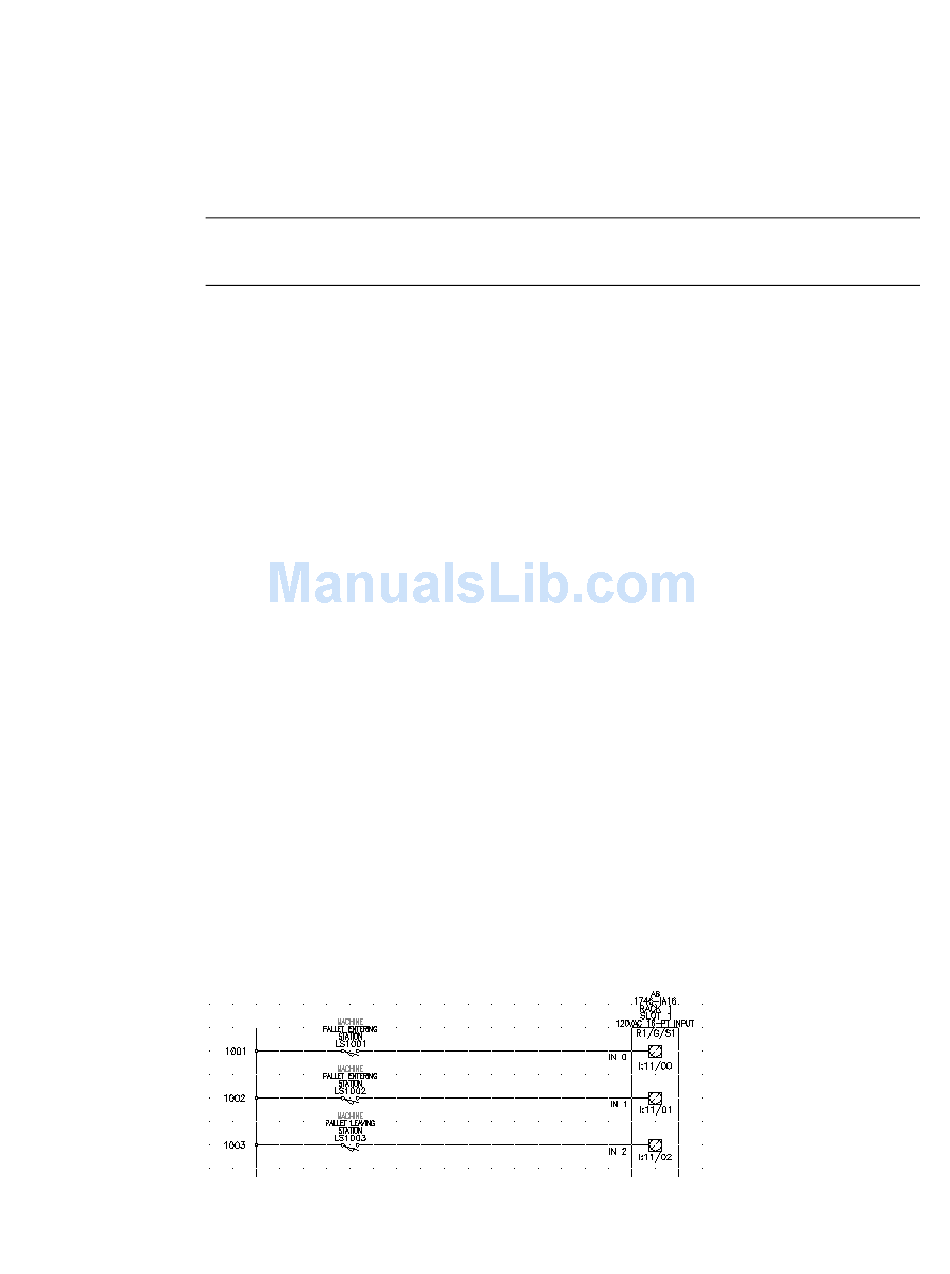

The normally open limit switches are inserted into the drawing.
Using Multiple Insert Component
|
