Generating Component Reports

AutoCAD Electrical can perform a project-wide extract of all components
found on your wiring diagram set, including component tags, location
codes, location references, description text, catalog information, and block
names. This data can be formatted into various report configurations that
can be output to a report file, exported to a spreadsheet or database program,
or inserted on to an AutoCAD drawing.
To generate a schematic component report
1 Click the Schematic Reports tool.
Menu

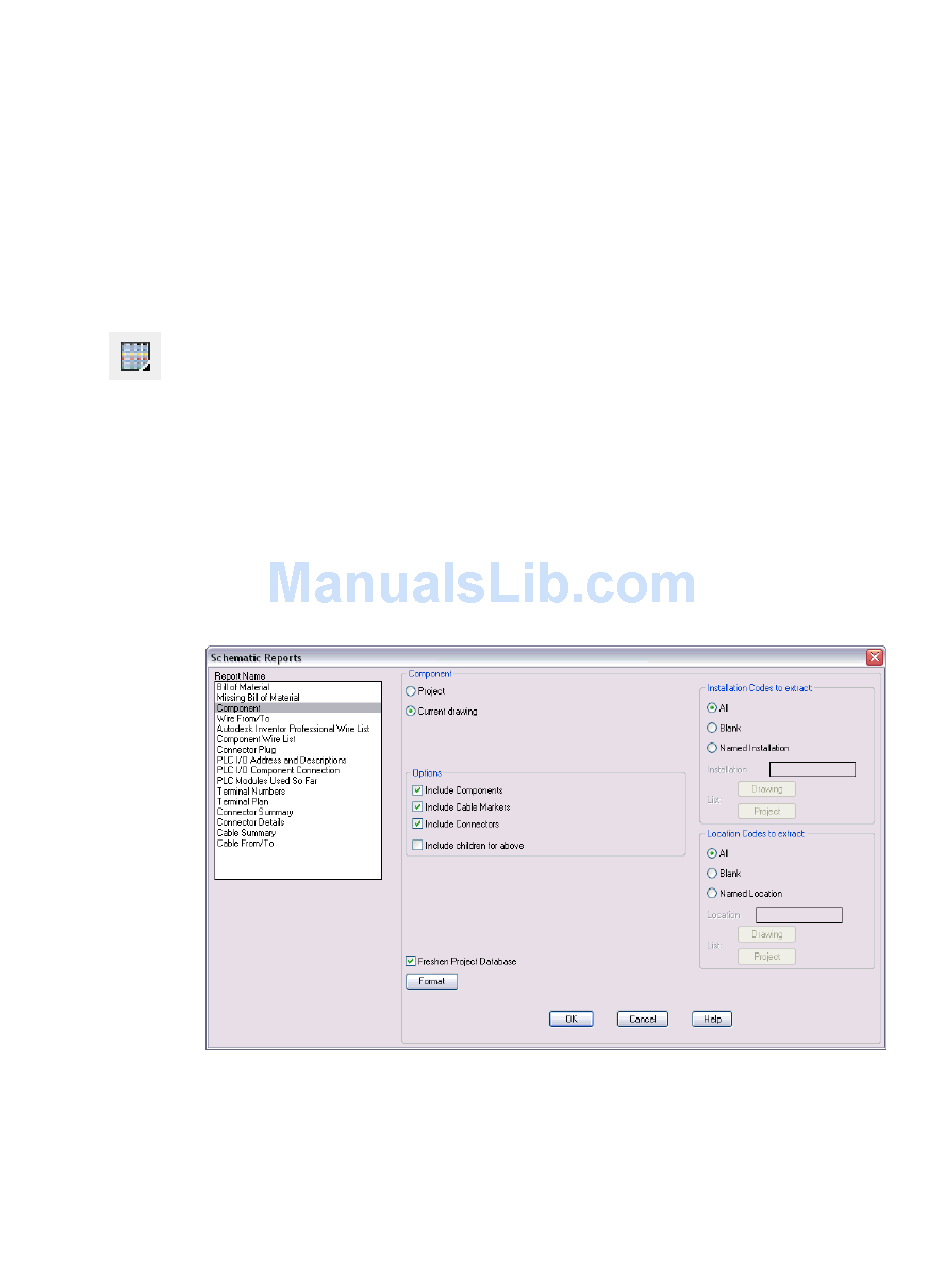

2 In the Schematic Reports dialog box, select:
Report Name: Component
Component: Current drawing
Verify that the following options have been specified:
Options: Include Components, Include Cable Markers, Include Connectors
Installation Codes to extract: All
Location Codes to extract: All
Click OK.
Projects ➤ Reports ➤ Schematic Reports
Generating Component Reports
|
