Inserting Wire Numbers - Autodesk AUTOCAD ELECTRICAL 2005 Getting Started

To view signals
1 Click the drop-down arrow on the Source Destination Signals tool to access
the Show Signal Path tool.
Menu

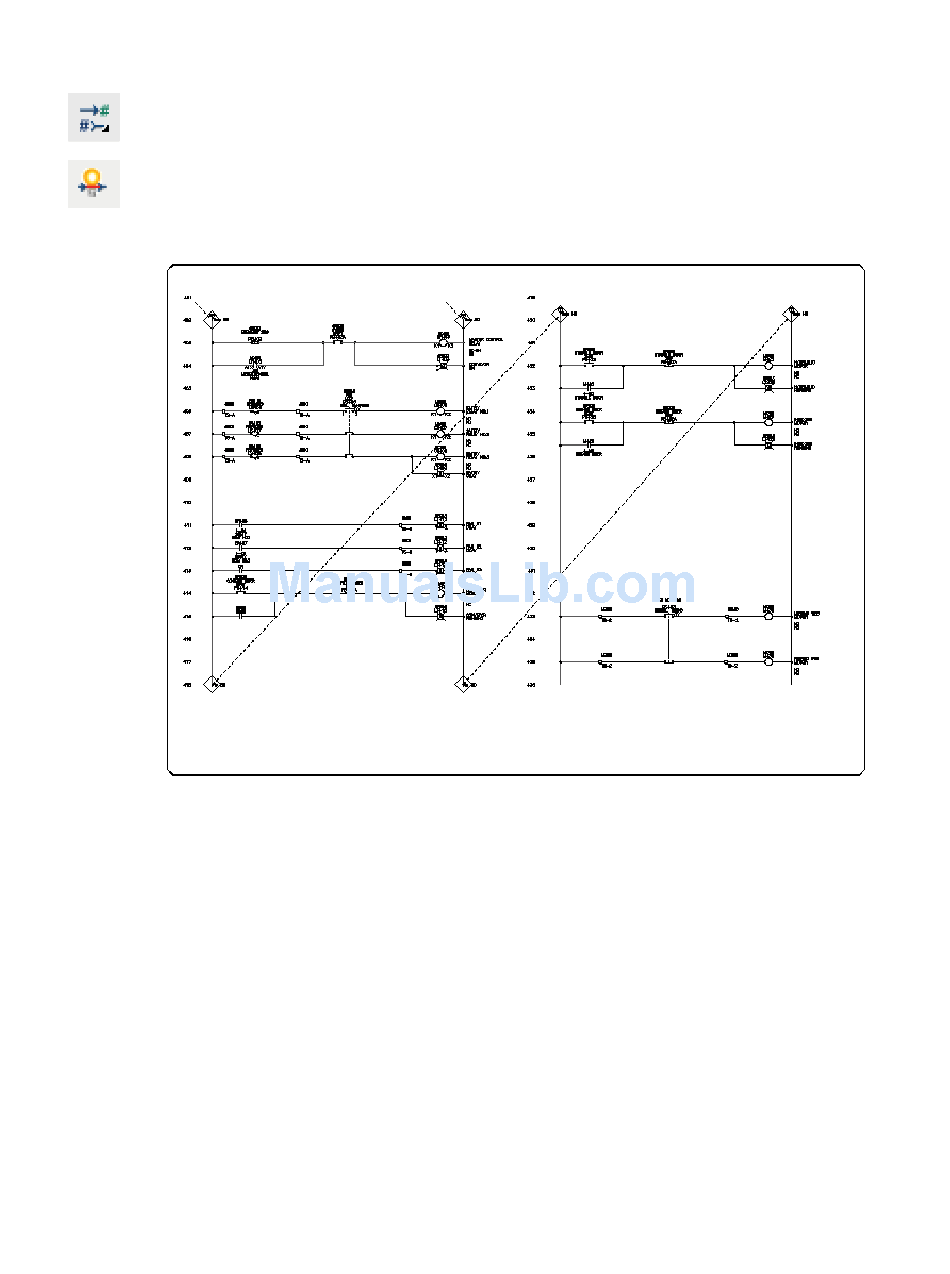

Temporary graphics are used to illustrate the flow of the signals on your
drawings.

Inserting Wire Numbers

You can process and tag wires with sequential wire numbers or with wire
numbers based upon the line reference location of the wire network. When
wire numbers are automatically inserted into a drawing, the numbers will
not be duplicated if they are defined on another network.
AutoCAD Electrical works from left to right, top to bottom as it processes wire
networks.
|
58
Chapter 5 Wire Numbers
Wires ➤ Signal References ➤ Show Signal Paths
