To make a catalog assignment
1

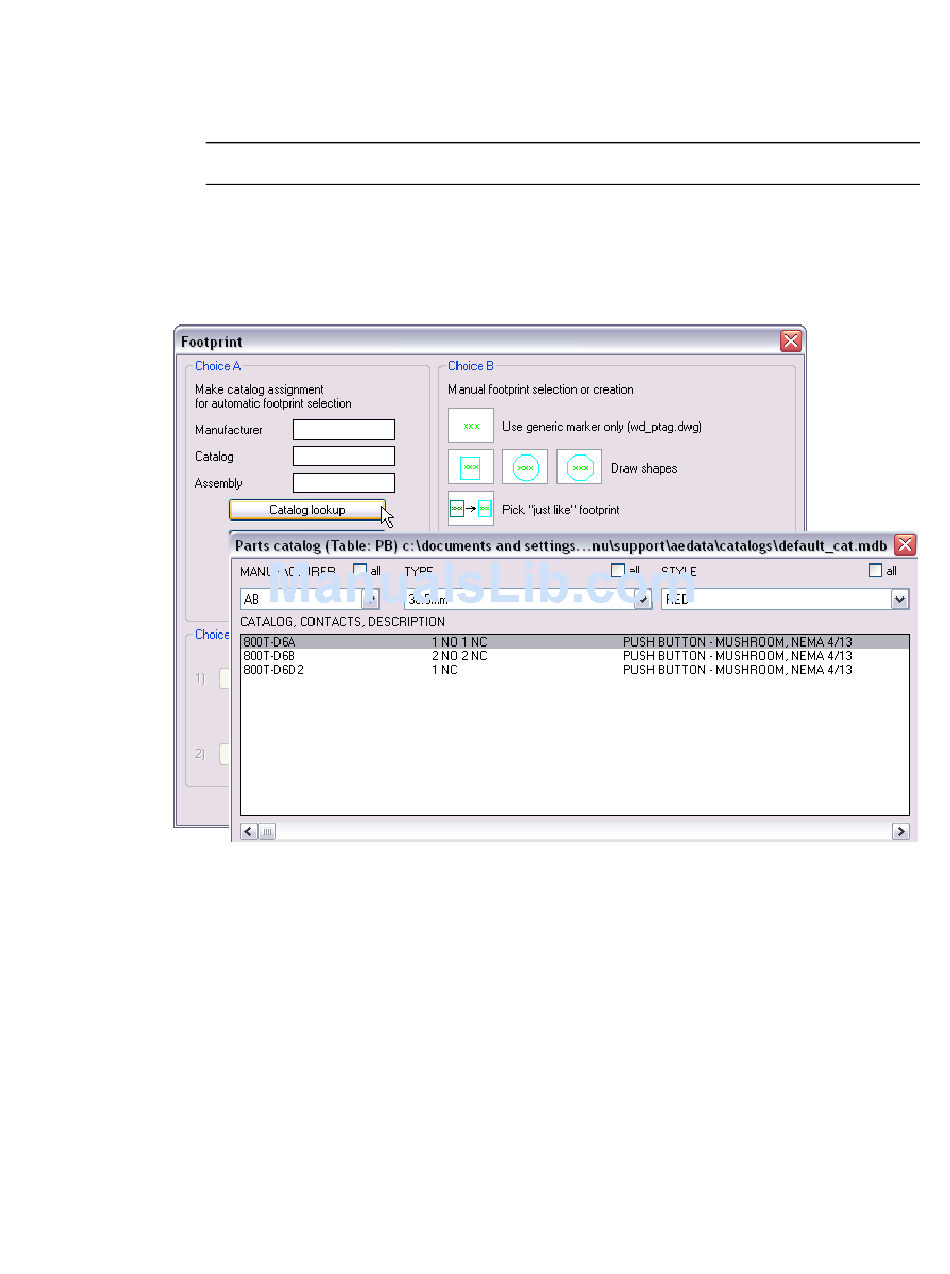

In the Footprint dialog box, Choice A section, click the Catalog lookup
button.
NOTE
Use Choice B to enter a graphic without selecting a catalog number.
2
In the Parts Catalog dialog box, select:
CATALOG, CONTACTS, DESCRIPTION 800T-D6A 1NO-1NC PUSH
BUTTON-MUSHROOM, NEMA 4/13
Click OK.
3
In the Footprint dialog box, Choice A section, verify the following values:
Manufacturer AB
Catalog 800T-D6A
Click OK.
Inserting Panel Components
|
69
