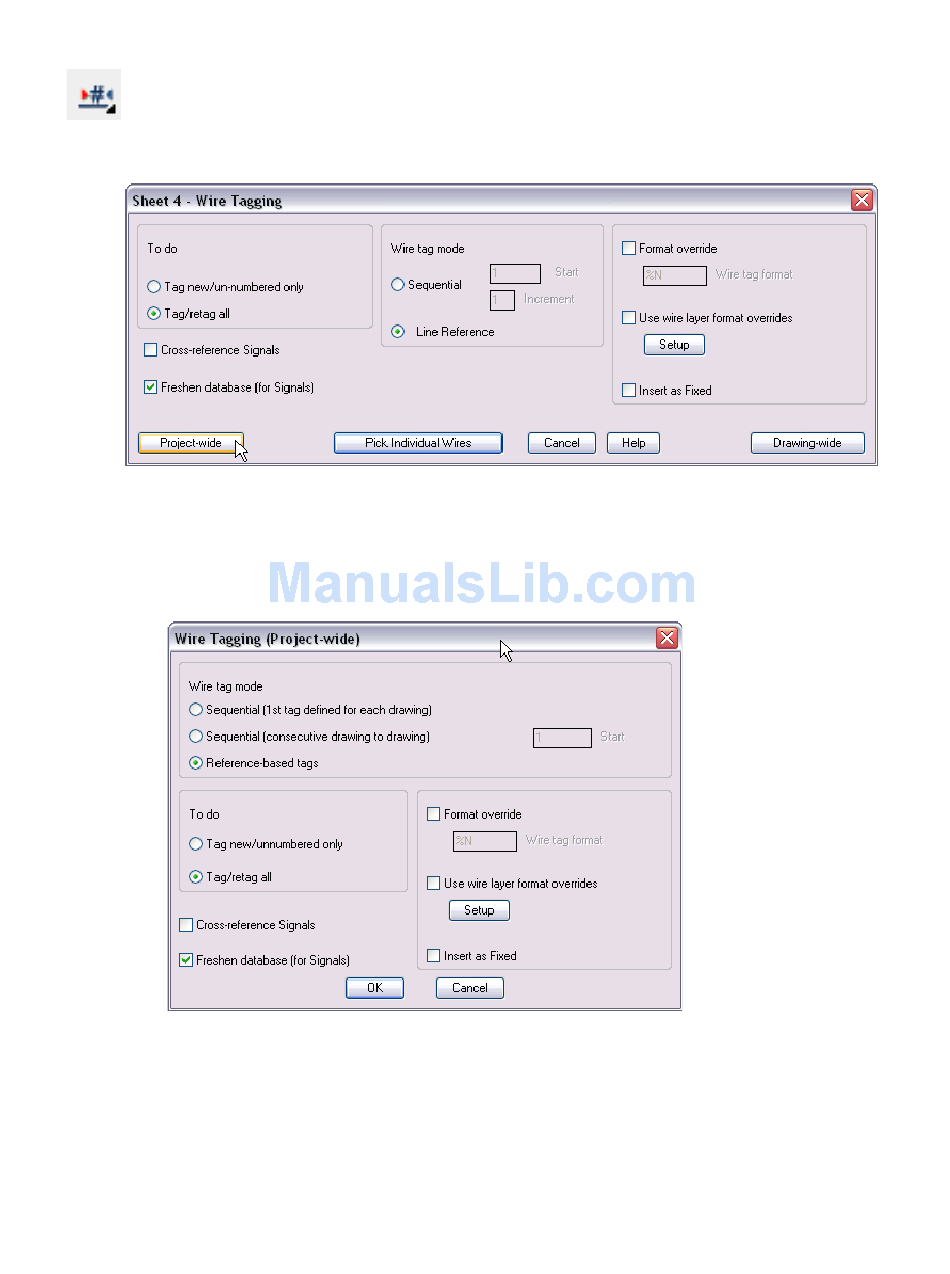

To add wire numbers project wide
1
Click the Automatic Wire Numbers tool.
Menu
2
In the Sheet 4 - Wire Tagging dialog box, click the Project-wide button.
3
In the Wire tagging (Project-wide) dialog box, verify the following settings:
Wire tag mode: Reference-based tags
To do: Tag/retag all
Freshen database (for Signals)
Click OK.
|
60
Chapter 5 Wire Numbers
Wires ➤ Automatic Wire Numbers
