In the Panel Layout - Component Insert/Edit dialog box, click OK.
NOTE

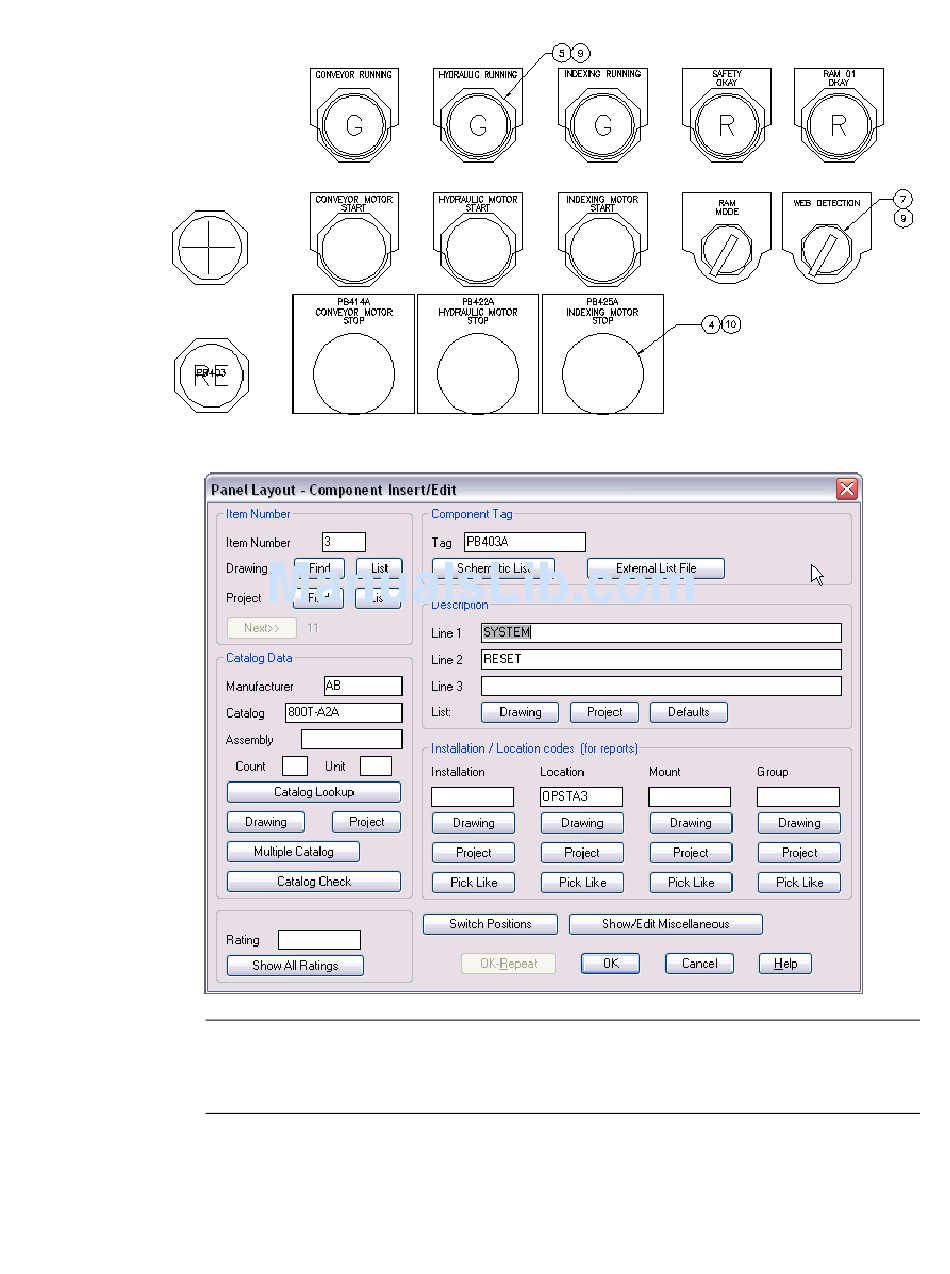

The Panel Layout - Component Insert/Edit dialog box is displayed each
time you insert a panel footprint. Information from the schematic representation
is automatically carried over to the panel footprint representation.
Now you're ready to insert conveyor on light.
|
73
