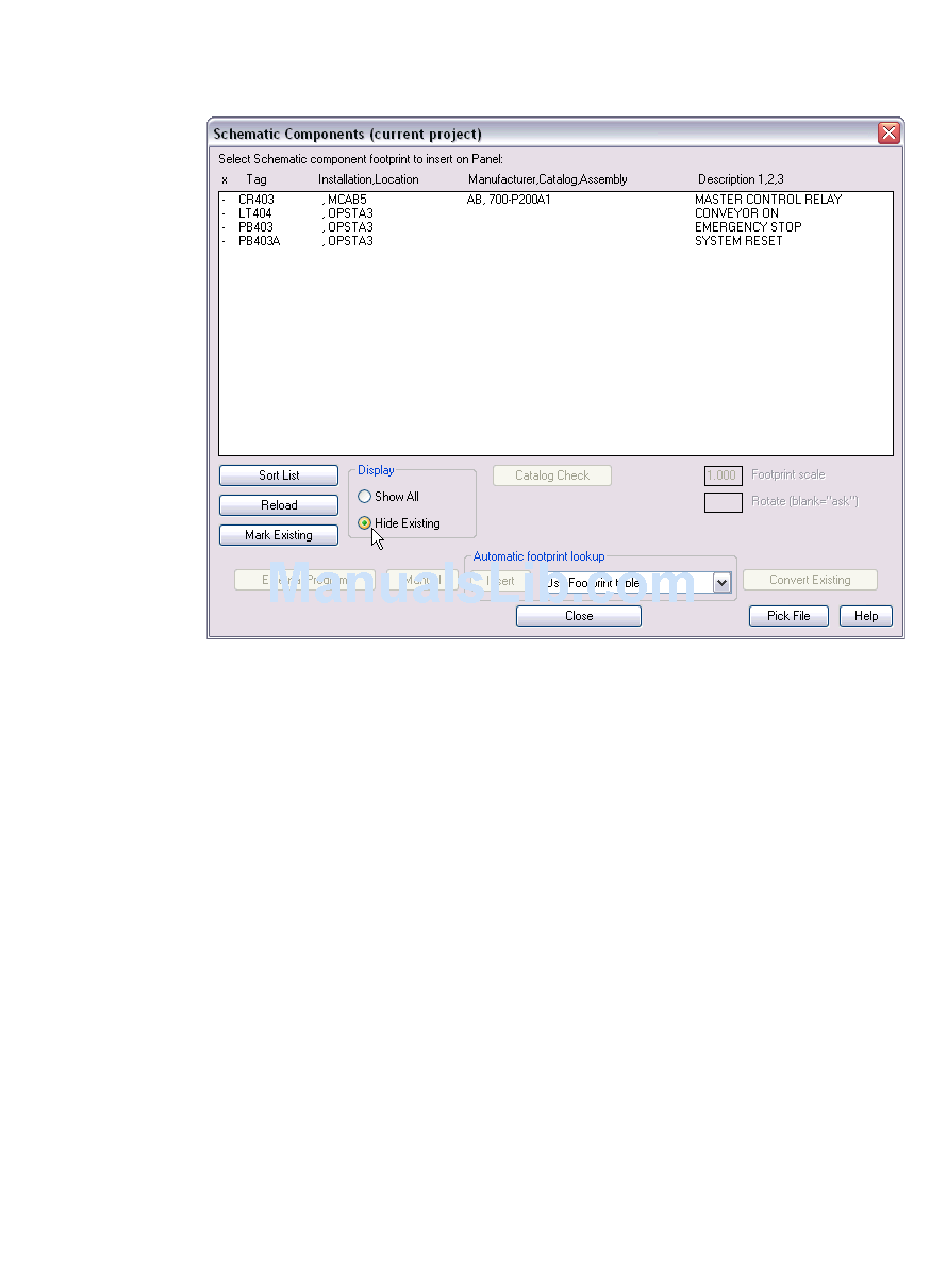

In the Schematic Components (current project) dialog box, Display section,
select the Hide Existing radio button to display the schematic component
footprints to be inserted into the panel layout.
You are now ready to begin manually inserting schematic component
footprints on the panel layout.
|
