Selecting The Events - CARLO GAVAZZI WM3-96 - PROGRAMMING Instruction Manual

18
Let's start
CT ratio
15
Scroll the list of the variables using
the and
have selected the desired variable,
confirm it using
choices and go back to the main
menu, press
Once you have con-
firmed the selection,
the following message
will appear: "YOUR CHOICE WILL
RESET THE VARIABLE, WILL YOU
CONTINUE? YES/NO". Note: to en-
able the MIN/MAX recording func-
tion, read carefully the following para-
graph, SELECTING THE EVENTS.

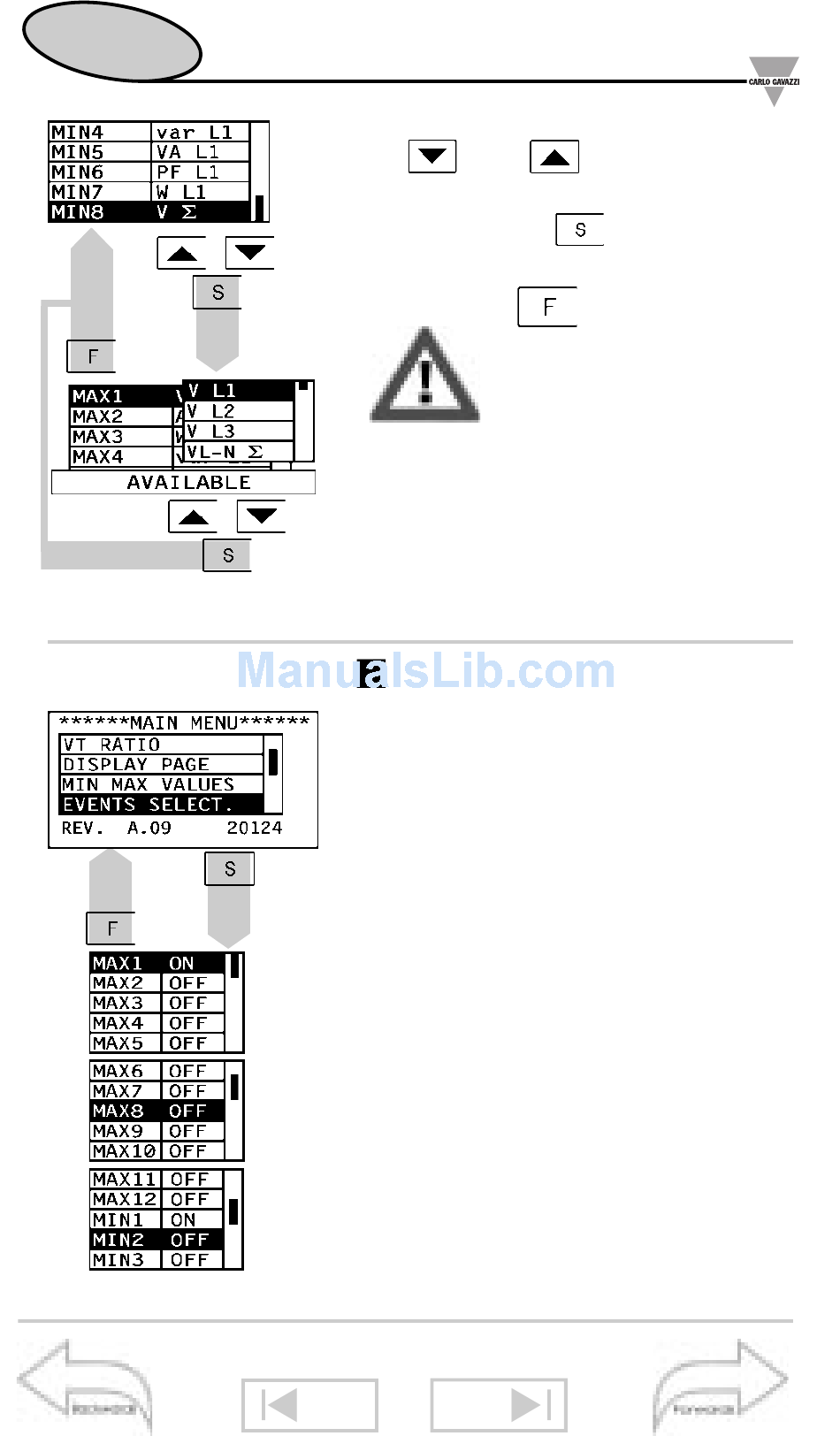

Selecting the events

This function allows the user to en-
able the events for data logging:
• MAX (logging of up to 12 different
variables MAX1 to MAX12), see also:
MIN MAX VALUES;
• MIN (logging of up to 8 different
variables MIN1 to MIN8), see also
MIN MAX VALUES;
• D "diagnostics" (logging of up to 4
alarms: from D1 to D4), see also:
DIAGNOSTIC DIGITAL OUTPUTS
• R "remote control" (up to 4 remotely
controllable outputs: from R1 to R4),
see also REMOTE CONTROL DIG-
ITAL OUTPUTS;
• A "alarms" (logging of up to 4
alarms: from A1 to A4), see also:
ALARM DIGITAL OUTPUTS;
21
13
keys; once you
. To reset your
.
Synchronization
20
