Outputs / Other settings
and output channels (1, 2, etc.) are shown. Select the desired
slot using the
the output function menu (if the module is not in the slot, the
instrument displays NOT AVAILABLE). To reset the choices and
go back to the main menu, press
The meaning of the symbols on the display is the
following:
OUT C0 (1): digital output, SLOT C0, channel 1
OUT C1 (2): digital output, SLOT C1, channel 2
OUT D0 (3): digital output, SLOT D0, channel 3
OUT D1 (4): digital output, SLOT D1, channel 4
1.2..
..2.1
Display of harmonics
29
DIAGNOSTIC OUTPUT, REMOTE
CONTROL OUTPUT. To enter these
functions, choose DIGITAL OUTPUT
from the main menu using the
keys, then confirm with
instrument shows a window where the
various slots (OUT C0, OUT C1, etc.)
and keys and confirm with

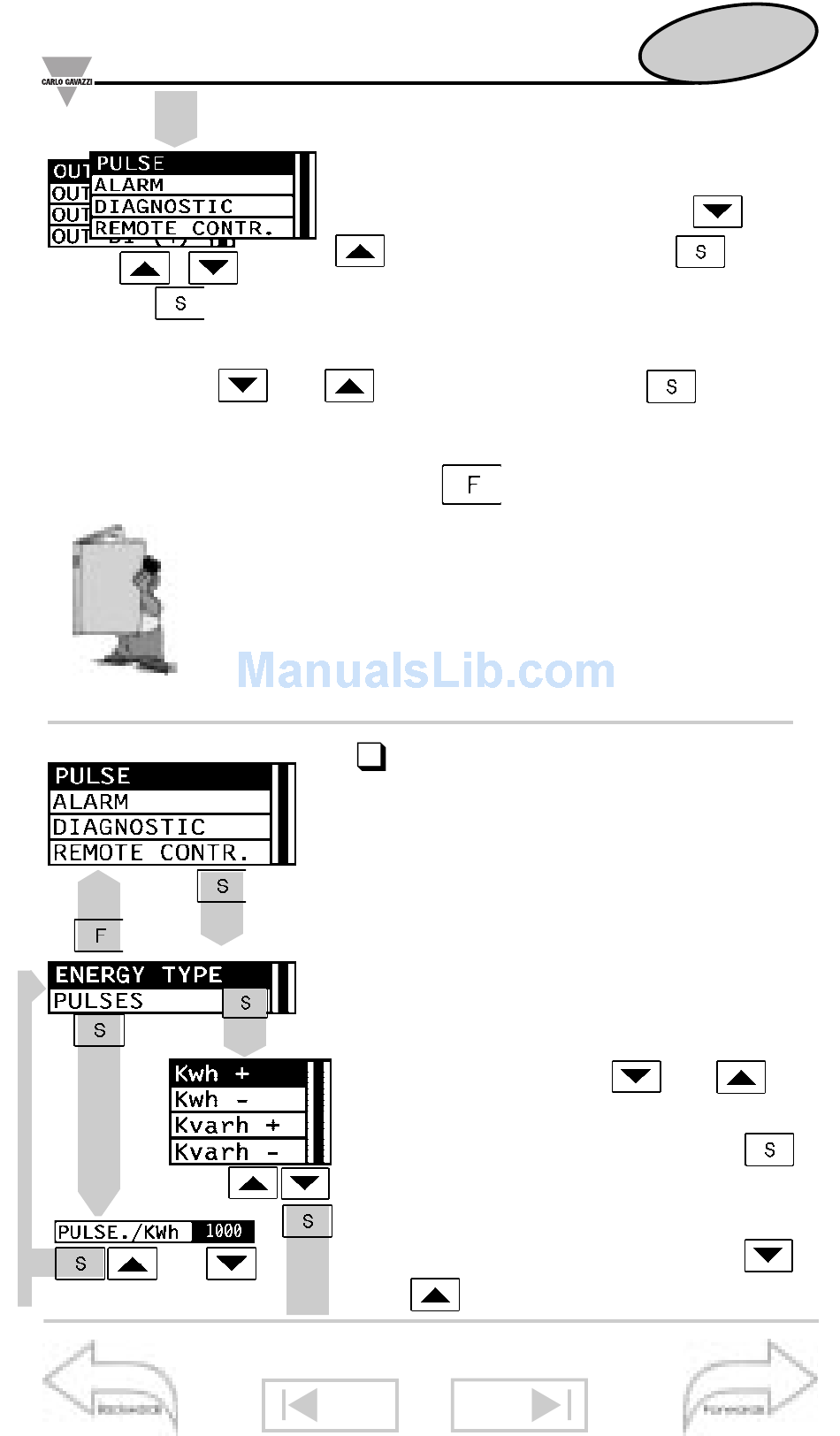

Pulse output

This function allows the user to set
the parameters of the pulse output.
The output can be connected to a
specific energy and this energy can
be connected to the desired tariff.
The measured energy is re-trans-
mitted by means of the pulse output
(the pulses/energy ratio of which is
programmable). Use
select PULSES from the list of avail-
able outputs; then confirm with
and choose from the submenu
ENERGY TYPE the energy that you
want to be retransmitted, using
and
29
.
:
Analogue outputs
37
31
and
. The
to enter
and to
