17
Let's start
Press ; select the variable to be
displayed by means of the and
keys and confirm it with .
To reset your choices and go back
to the main menu press .
Measure

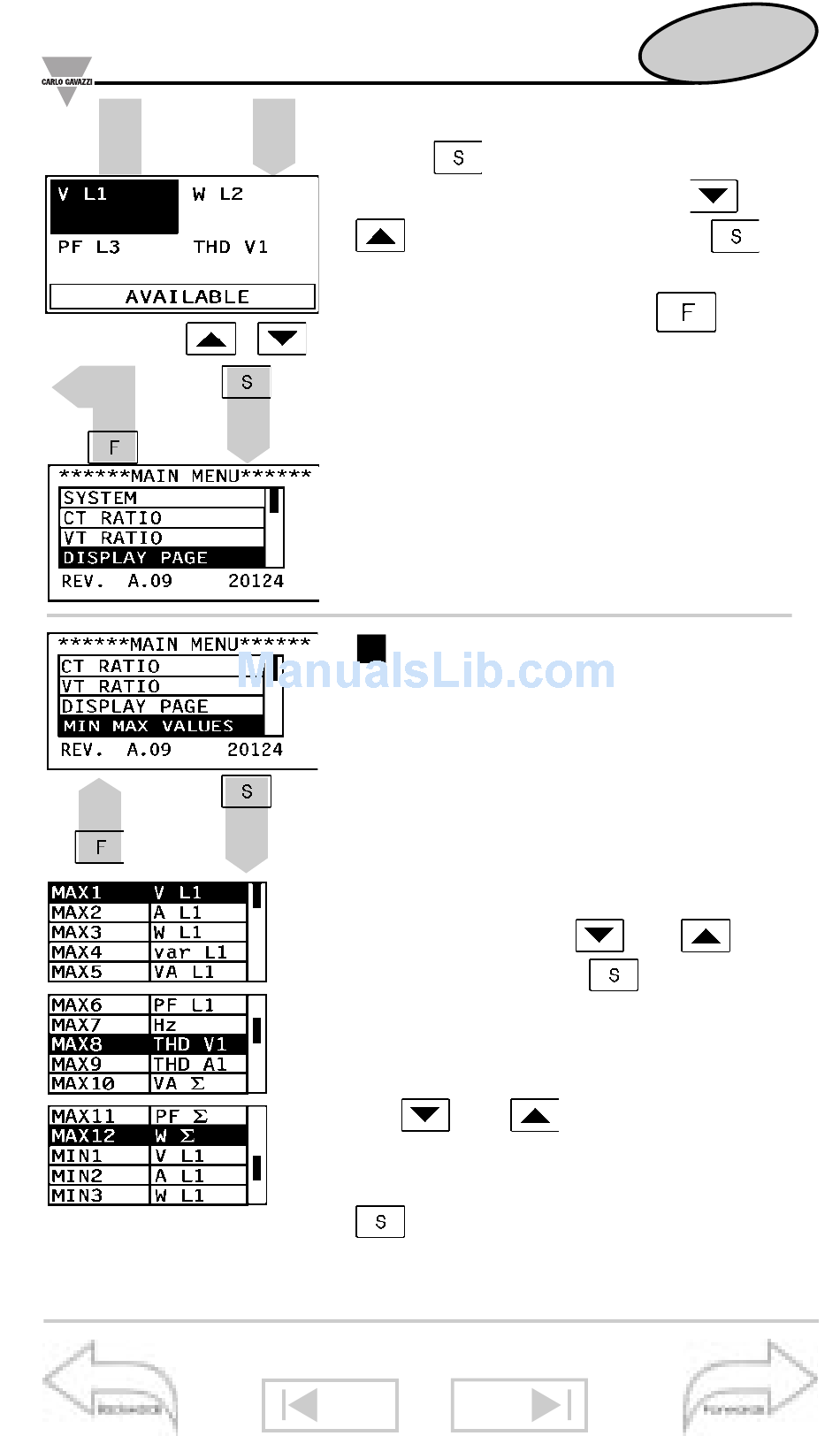

MIN/MAX VALUES
This function allows the user to as-
sociate some variables to the auto-
matic recording of maximum values
(from MAX1 to MAX12) and mini-
mum values (from MIN1 to MIN8).
To use this function, proceed as fol-
lows: select the MIN MAX VALUES
function using the and keys
and confirm it with .
A new window will appear showing
you the list of available memory lo-
cations: select the locations using
the and keys, starting from
MAX1 for the maximum values and
MIN1 for the minimum values. Press
to open the secondary menu
with the list of the available variables
to be selected.
