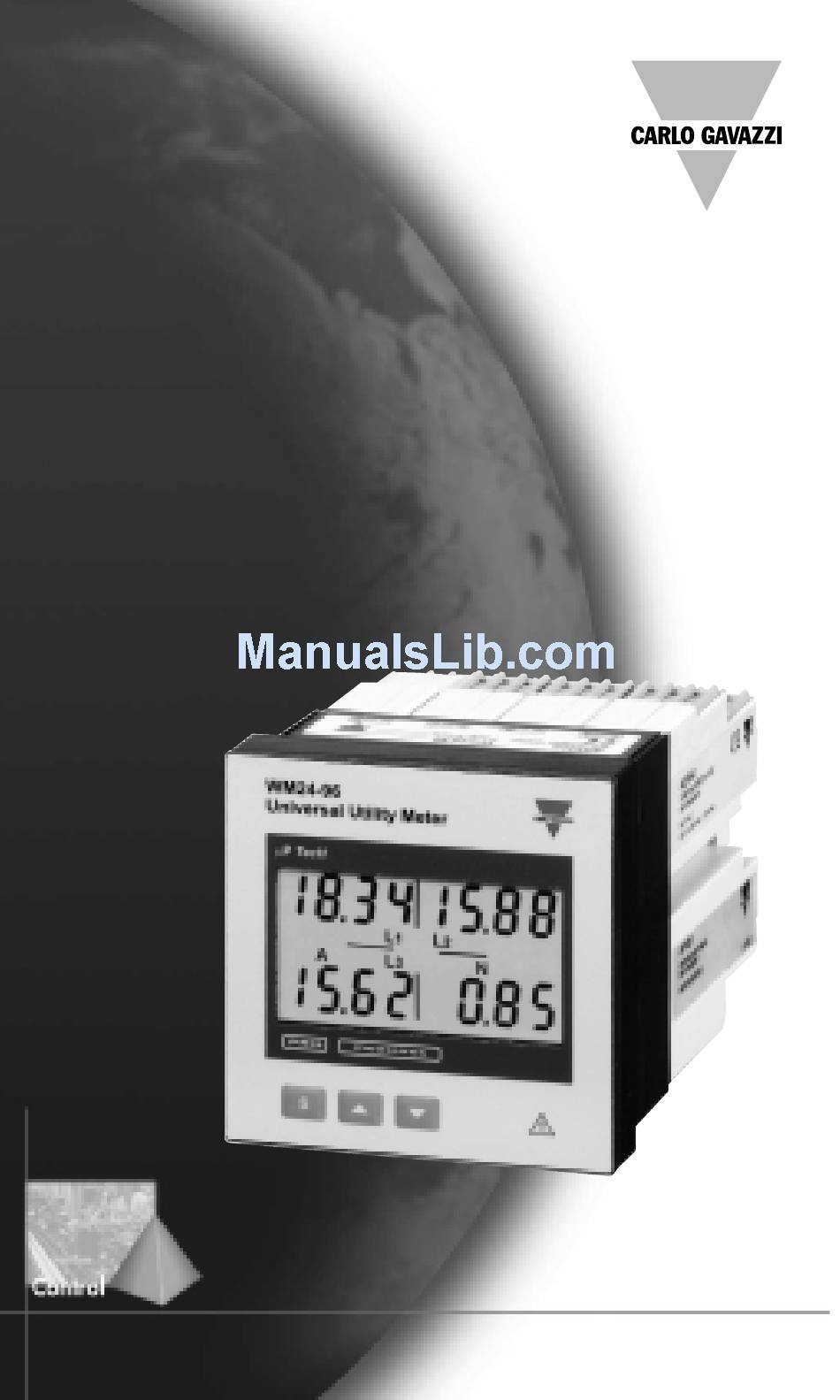

- Page 1 CARLO GAVAZZI A u t o m a t i o n C o m p o n e n t s WM24-96 Universal Utility Meter Contatore Universale USER MANUAL MANUALE ISTRUZIONI Modular system Tecnologia modulare...
- Page 2 All this because we want our customers to have the top service and the top products. Welcome in the Carlo Gavazzi world and compliments for your smart choice. Visit our website and evaluate our range of products:...
-
Page 3: Table Of Contents
Index CARLO GAVAZZI WM24-96, modular universal utility meter and power analyzer FW rev. 01 TO BEGIN WITH ......04 Front panel description . - Page 4 Index INSTALLATION ......26 Operations preliminary to the installation ..26 Front panel cut-out .
-
Page 5: To Begin With
To begin with Front Panel Description Back-lighted LCD Display. Display previous page. Display next page. Access to programming or setting confirmation. List and Description of Displayed Measuring Pages When the instrument is switched on it shows the page below: kvar Serial communica- kW dmd tion status: r=Rx;... - Page 6 To begin with VL2-N VL1-N VL3-N A L2 If displayed in the measuring mode it A L1 means: the alarm is A L3 W L2 W L1 W L3 Multiplyer PF L2 PF L1 PF L3 kvar L2 kvar L1 kvar L3 kVA L2 kVA L1...
- Page 7 To begin with The energy meter pages are different according to the set- ting of the instrument (see energy meter menu on pag.13). “tot” If you choose the instrument displays: Generated capacitive reactive energy: integration of the sum of single phase reactive powers of quadrant 4 only.
- Page 8 To begin with Consumed active energy: inte- gration of the sum of positive sin- gle phase active powers only. “tot-1.Cn” If you choose the instrument displays all the pages displayed in the “tot” selection as well as: GAS meter as m , night tariff.
- Page 9 To begin with “tot-Prd” If you choose the instrument displays: Reactive energy consumed dur- ing tariff 1: integration of the sys- tem active power only if positive (same is also for tariff 2, 3 and 4). Active energy consumed during tariff 1: integration of the system active power only if positive (same is for tariff 2, 3 and 4).
-
Page 10: Programming
Programming Access to the main menu To access to the programming menus from the measuring and dis- play phase, press the key : when the instrument asks for the pass- word, enter the correct PASS value by means of the keys;... -
Page 11: System
Programming System This function allows the operator to select the electrical system choos- ing between three-phase with neu- tral (3P.n) and three-phase without neutral (3P). Choose by means of the “SySTEn” function, press to enter the menu; then, select the desired system by means of the keys and confirm with CT ratio... -
Page 12: Vt Ratio
Programming VT ratio This function allows the user to select the value of the VT ratio. Example: if the primary of the con- nected VT (voltage transformer) is of 20kV and the secondary is 100V, the VT ratio will correspond to 200 (obtained by carrying out the fol- lowing calculation: 20000/100). - Page 13 Programming If, for example, you select the value “15 min- utes”, the instrument calculates the demand value and updates the value every 15 minutes. See the diagram below. Where: Pc is the contractual power t1 is the selected integration period SYNCHRONIZATION OF THE POWER DEMAND CALCU- LATION The synchronization enables the WM24-96, by means of the...
- Page 14 Programming Access to the energy meters menu This function allows the user to choose the parameters for the management of the energy meters. Choose the function “COUntEr” by means of the keys: to confirm the value and enter the submenu press .
- Page 15 Programming tot 1.Cn: it enables the combination of total en. meters and day-time and night- time GAS meters (see also “Display pages” on page 7). Press to select “PrESCAL Cn1”, then enter by means of the keys the weight of every pulse of the IN2 digital input of the GAS meters and confirm with The same input IN2 increases alterna-...
- Page 16 Programming The increase of the Water, Gas meters, the selec- tion of night/day tariff of the gas meters or the change of tariff (t1, t2 t3, t4) is carried out thanks to the combination of the input pulses to the AQ1038 or AQ1042 digital input module, according to the following table: ESULT...
-
Page 17: Digital Outputs
Programming Digital Outputs Digital Output 1 This function enables to set the parameters of the digital outputs. Choose the “diGout” function by means of the keys, to enter the menu press . Then, select following options; PUL: access to the retransmission functions of the totalized energy by means of pulses (see pulse dig- ital output);... - Page 18 Programming The list displaying the en. meters to be retransmitted varies depending on the chosen setting of the instrument, that is, depending on the “en. meter” selection chosen among: “tot”, “tot-Prd”, “tot- 1.Cn”, “tot-2.Cn”, as reported in the table below: F THE SELECTION IS F THE SELECTION IS tot, tot-1.Cn, tot-2.Cn:...
-
Page 19: Alarm Digital Output
Programming Alarm Digital Output This function allows the user to set the parameters of the alarm digital output. Choose the “diGout1- ALr” function by means of the keys: to enter the menu press . Then, set the fol- lowing parameters: VAr: choose the variable to be associated to the alarm activation by means of the... -
Page 20: Digital Output 2
Programming SEC: delay time from the detection of the alarm and the activation of the output. Choose the value of the delay time in seconds by means of 1.2..2.1 keys (up to 255 seconds) and confirm with Digital output 2 Digital Output 2 PUL: access to the retransmission functions of the totalized energy by... - Page 21 Programming RS422/485 Serial port address Select “AddrESS” from the main menu by means of the keys; to enter the menu press then set the desired serial address value (from 1 to 255) by means of keys and confirm it 1.2.. with ..2.1 Digital Filter...
- Page 22 Programming End of programming To exit from programming and go back to the measuring mode, select “End” from the main menu by means of the keys, confirm it Measuring Instrument with mode revision Reset of total meters Select “rESEt tot” from main menu by means of the keys, then confirm with...
- Page 23 Programming Reset of partial meters Select “rESEt Prt” from the main menu by means of the keys, then confirm with . When the instrument asks for the reset, choose, by means of the keys: “no” to avoid the reset or “yes”...
- Page 24 Useful Information The variables measured by the instrument are correct if the polarities of the inputs have been observed (as shown in the figure below); if not, measuring and retransmission errors may occur due to the wrong direction of the current flowing in the primary / secondary of the connected current transformer.
-
Page 25: Retransmitted Variables
Useful Information What is ASY The ASY variable allows the user to control the symmetry of the delta voltages (for systems without neutral) and star volt- ages (for systems with neutral). The variable is calculated according to the following formula: Vmax - Vmin ASY= *100... -
Page 26: Alarm Digital Output
Useful Information Alarm digital output The activation of the alarm can be up or down depending on how the ON and OFF parameters have been set, as per the following table: ON-OFF ALARM TYPE VALUES STATUS ON < OFF DOWN Displaying of programming menu It may be useful to know that the menus displayed by the instrument depend on its configuration;... - Page 27 Installation Preliminary operations Before switching the instrument on, make sure that the power supply voltage corresponds to what is shown on the side label of the relevant module. Before mounting the modules To know in which slot every module is to be mounted, refer to the figure on page 28.
- Page 28 Installation Overall dimensions and panel cut-out Mounting Insert the instrument (holding its front) and fasten it (from the back) by fixing the two lateral brackets (1) (supplied with the instrument) to the appropriate location (2), using the two screws (3) supplied with the instrument.
- Page 29 Installation Position of the slots and relevant modules Available modules Relay digital output modules AO1035 AO1058 Single relay Dual relay output output E.g.: Use of Digital Filter Optional Modules...
- Page 30 Installation DESCRIPTION D PU PS IM RS485/RS422 serial port RS232 serial port Single relay output Single open collector output Dual relay output Dual open coll. output 3 digital inputs 3 digital inputs +AUX Power supply Measuring inputs Open collector digital output modules AO1059 AO1036 Single open...
- Page 31 Installation Digital input modules AQ1038 AQ1042 3 digital 3 digital inputs + inputs Serial port modules AR1039 RS232 serial port AR1034 RS485/422 serial port Power supply modules AP1025 24VAC Power supply AP1024 48VAC Power supply AP1023 115VAC Power supply AP1022 AP1020 230VAC Power supply 90-260 VAC/DC Power supply...
- Page 32 Installation Optional module connections Digital inputs Connection by NPN transistor. AQ1042 Digital input module. Connection by PNP transistor. AQ1042 Digital input module. Connection by contacts. AQ1042 Digital input module. Connection by contacts. AQ1038 Digital input module. Modules Position 3-ph 3-wire connection...
- Page 33 Installation Relay output AO1058 AO1035 Single relay output Dual relay output Open collector output This diagram is valid also for the single output open collector module. The value of the load resistances (Rc) must be chosen so that the short- circuit current is lower than 100mA;...
- Page 34 Installation RS485/422 serial port (AR1034) 4-wire connection. Additional devices provided with RS485/RS422 (that is RS 1,2,3...N) are connected in paral- lel. 2-wire connection. Additional devices provided with RS485/RS422 (that is RS 1, 2, 3 ...N) are connected in par- allel. The termination of the serial output is carried out only on the last instrument of the network, by means of a jumper between (Rx+) and (T).
- Page 35 Installation Electrical diagrams Single-phase connection CT connection CT and VT connections Three-phase, 4-wire, unbalanced load CT connection CT and VT connections (4-wire system) (4-wire system) Available Modules Accuracy...
- Page 36 Installation CT and VT connections 3 CT and 3 VT connections (3-wire system) (3-wire system) ARON connection, 3-phase, 3-wire, unbalanced load CT connection CT and VT connections (3-wire system) ARON (3-wire system) ARON Serial Connection Technical Features...
- Page 37 Technical Features Number of inputs Current: 3; Voltage: 4 Accuracy (display, RS232, RS485) In=5A; Pn= In* Un Current: 0.003Ib to 0.2Ib: ±(0.5% rdg + 3DGT); 0.2Ib to Imax: ±(0.5 rdg + 1DGT); Phase-neutral voltage: Un range: ±(0.5% rdg + 1DGT) Frequency: ±0.1% Hz Active power/energy: class 1 according to EN61036 Reactive power/energy: class 2 according to EN61268...
- Page 38 Technical Features Connections: 2 or 4 wires, max. distance 1200m, termina- tion directly on the instruments. Addresses: from 1 to 255, selectable by key-pad Protocol: MODBUS/JBUS (RTU) Data (bidirectional) Dynamic (reading only) System and phase variables: see “display pages” on page 41 All configuration parameters, activation of the static output.
- Page 39 Technical Features Alarm outputs (optional) Number of outputs: up to 2, independent Alarm type: up or down alarm, phase asymmetry Control on the variables: All variables listed in the paragraph “retransmitted variables” on page 24 can be controlled. Alarm set-point: can be modified from 0 to 100% of the dis- played electrical scale.
- Page 40 Technical Features Contacts 2-3: to be used in one of the following ways: • tariff selection (t1-t2-t3-t4) and synchronization; • total meters for day-night GAS tariffs; • total GAS and WATER meters ; Software functions Password: Numerical code of 4 dgts; 2 protection levels of the programming data 1st level: Password “0”, no protection 2nd level: Password from 1 to 1000, all data are protected...
- Page 41 Technical features Power supply specifications 90 to 260 VDC/VAC;18 to 60VDC/VAC; 24 VAC -15%+10% 50-60Hz; 48 VAC -15%+10% 50-60Hz; 115VAC -15%+10% 50-60Hz; 230 VAC -15%+10% 50-60Hz General features Operating temperature: 0 to +50°C (32 to 122°F) (H.R. < 90% non condensing) Storage temperature: -10 to +60°C (14 to 140°F) (HR.
- Page 42 OUR SALES NETWORK Carlo Gavazzi GmbH Carlo Gavazzi Automation Sdn Bhd Wien - AUSTRIA Petaling Jaya, Selangor - MALAYSIA Carlo Gavazzi NV/SA Carlo Gavazzi BV Vilvoorde - BELGIUM Beverwijk - NETHERLANDS Carlo Gavazzi Inc. Carlo Gavazzi AS Mississauga, ON - CANADA...
