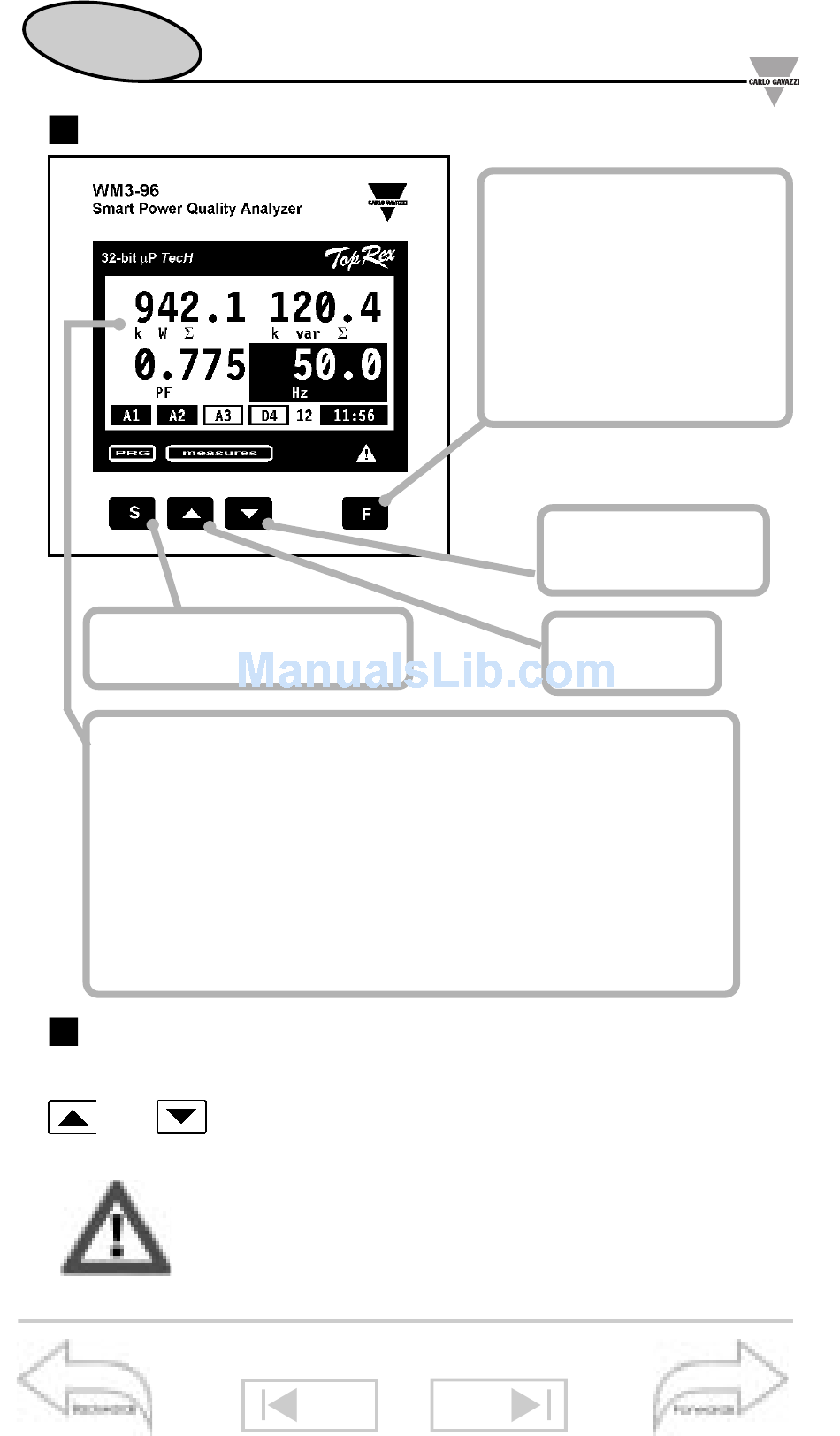

Front panel description

Access to programming
or settings' confirmation.
Alphanumeric indication by means of a 7-segment
graphic LCD (128 x 64 dpi):
• of the programming parameters;
• of the measured variables;
• Total number of energy meters: 4 (9 digits);
partial number of energy meters: 48 (6 digits);
• time periods: 4 programmable within 24 hours
• Programmable seasons: 3 within 12 months
Display contrast adjustment
In order to get the best readability of the display, hold the keys
and
ability is reached; the adjustment is cyclical.
The contrast can be adjusted only during the
measuring phase (from page 00 to page 27).
To begin with
pressed simultaneously, until the desired read-
5
Exit from the menu and
cancel the choice you
have made.
It allows you to access
some functions relating
to the
variables.
Scroll to the
previous page.
Scroll to the
next page.
Scroll the display pages
displayed
