Relay Output; Open Collector Output; Digital Inputs - CARLO GAVAZZI WM3-96 - PROGRAMMING Instruction Manual

50

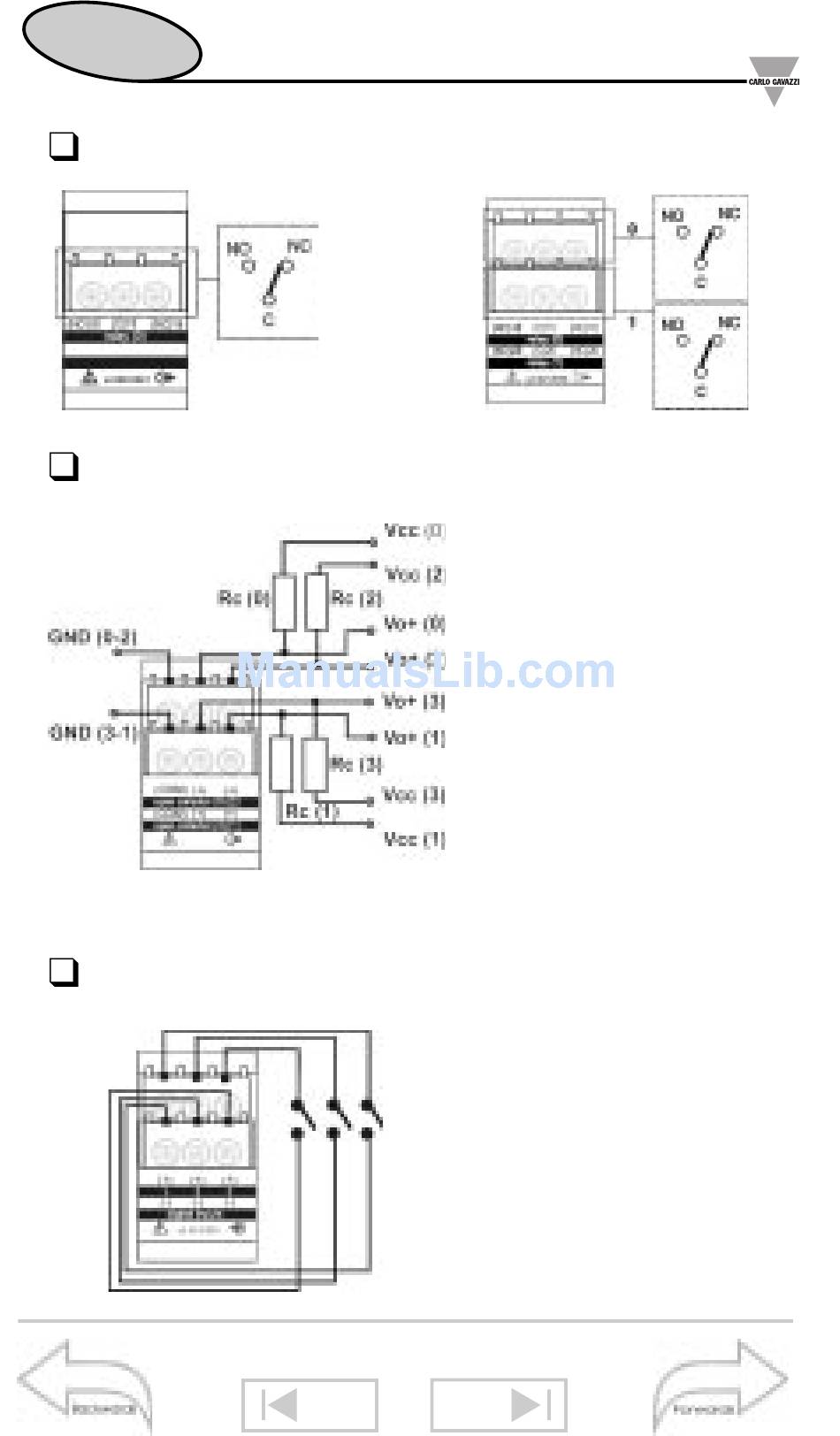

Installation
Single and double relay outputs
Open collector outputs

Digital inputs

Mounting
45
This diagram is valid
also for the open collec-
tor modules with a lower
number of outputs. The
value
resistances (Rc) must
be chosen so that the
short-circuit current is
lower than 100mA; the
VDC voltage must be
lower than or equal to
30VDC.
Three- phase connection
44
51
of the load
52
