PANEL DESCRIPTION

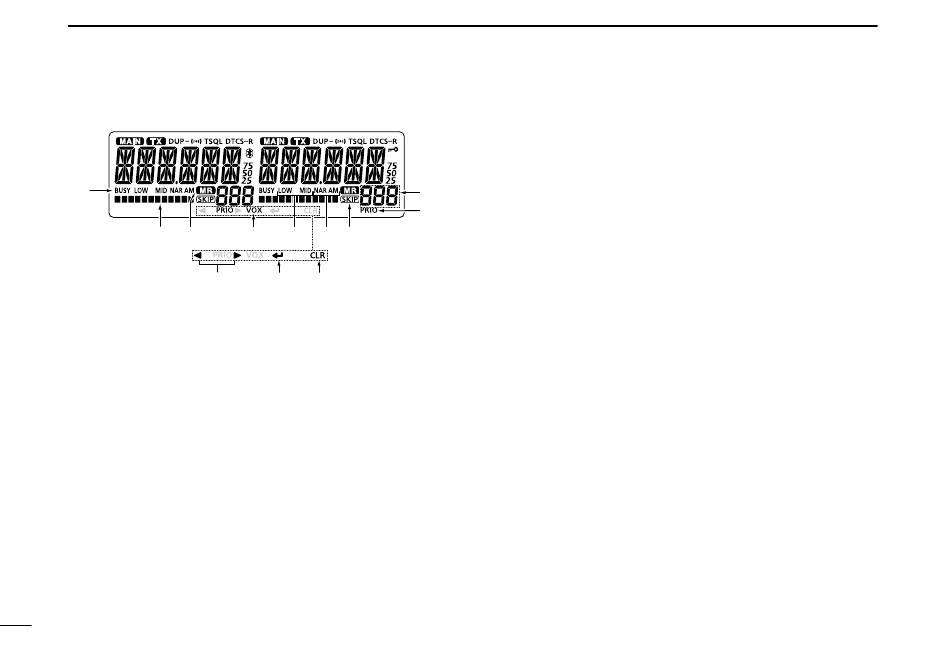

■ Controller — Display
16
15 14
8 MEMORY CHANNEL NUMBER (p. 29)
Displays the selected Memory channel, Memory Bank,
Call channel, or Menu item.
9 PRIORITY ICON (p. 46)
Displayed when Priority Watch is turned ON.
10 SKIP ICON (p. 42)
Displayed when the displayed Memory channel is
specified as a skip channel.
11 MODE ICON (p. 26)
Displays the operating mode.
12 POWER ICON (p. 26)
Displays the output power level.
• "LOW" is displayed when you select low power.
• "MID" is displayed when you select mid power.
• No icon is displayed when you select high power.
3
13 12 11 10
19 18 17
13 VOX ICON (p. 75)
Displayed when the transceiver is connected to the optional
VS-3 Bluetooth
14 MEMORY MODE ICON (p. 29)
8
Displayed while in the Memory mode.
9
15 S/RF METER
z Displays the relative signal strength of the receive signal.
z Displays the output power level of the transmit signal.
(p. 26)
16 BUSY ICON
z Displayed while a signal is being received, or the
squelch is open.
z Blinks while the Monitor function is activated. (p. 27)
L The following key icons are displayed in the MENU mode
or Memory write screen, and you can push a key that is
located below the icon.
17 CLEAR KEY [CLR]
In the MENU mode
Push to return to the previous screen. (p. 9)
While entering text
z Push to delete the selected character or number.
(p. 34)
z Hold down for 1 second to delete the selected
character or number, and all characters that are
located to the right of the cursor. (p. 54)
