PANEL DESCRIPTION

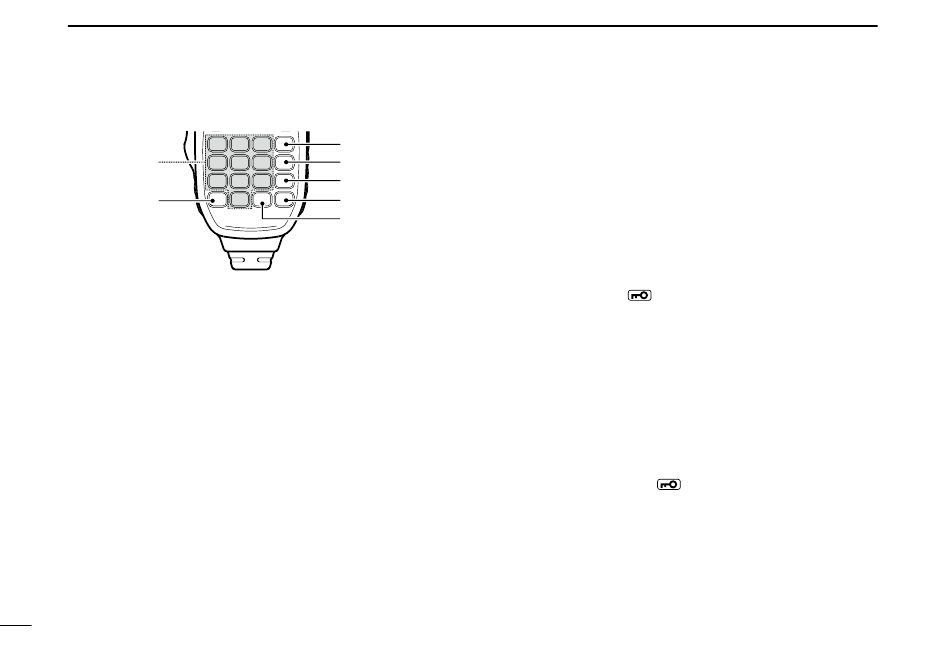

■ About the HM-207 microphone
17
16
11 [VOL▲ A] KEY
z Push to increase the audio output level.
z Push to input DTMF code 'A.'
12 [VOL▼ B] KEY
z Push to decrease the audio output level.
z Push to input DTMF code 'B.'
13 [SQL▲ C] KEY
z Push to increase the squelch level.
z Push to input DTMF code 'C.'
14 [SQL▼ D] KEY
z Push to decrease the squelch level.
z Push to input DTMF code 'D.'
15 [# CE] KEY
z In the frequency entry screen, push to delete a number.
z Push to input DTMF code '#.'
• 'F' stands for '#' on the display.
7
16 [M .] KEY
z Push to input a '.' (decimal point) when entering a
11
z Push to input DTMF code 'M.'
12
13
17 [0] ~ [9] KEYS
14
Push to input a frequency, or DTMF codes '0' through '9.'
15
D Setting frequency and Memory channel
[Example for setting the frequency]
First, push [VFO/MR
To enter 435.680 MHz:
z Push [4], [3], [5], [6], [8], then [0].
To change 435.680 MHz ~ 435.540 MHz:
z Push [•], [5], [4], then [0].
To enter 433.000 MHz:
z Push [4], [3], [3], then [ENT].
[Example for setting the Memory channel]
To select the Memory channel '5':
1.
2. Push [5] then [ENT].
[Example for setting the Call channel]
To select a Call channel:
1.
2. When C0 is selected, push [▲] to select C1.
frequency.
• "E" stands for "M" on the display.
] to select the VFO mode.
First, push [VFO/MR ] to select the Memory mode.
First, hold down [HOME CALL] for 1 second to select
the Call channel mode.
When C1 is selected, push [▼] to select C0.
