PANEL DESCRIPTION

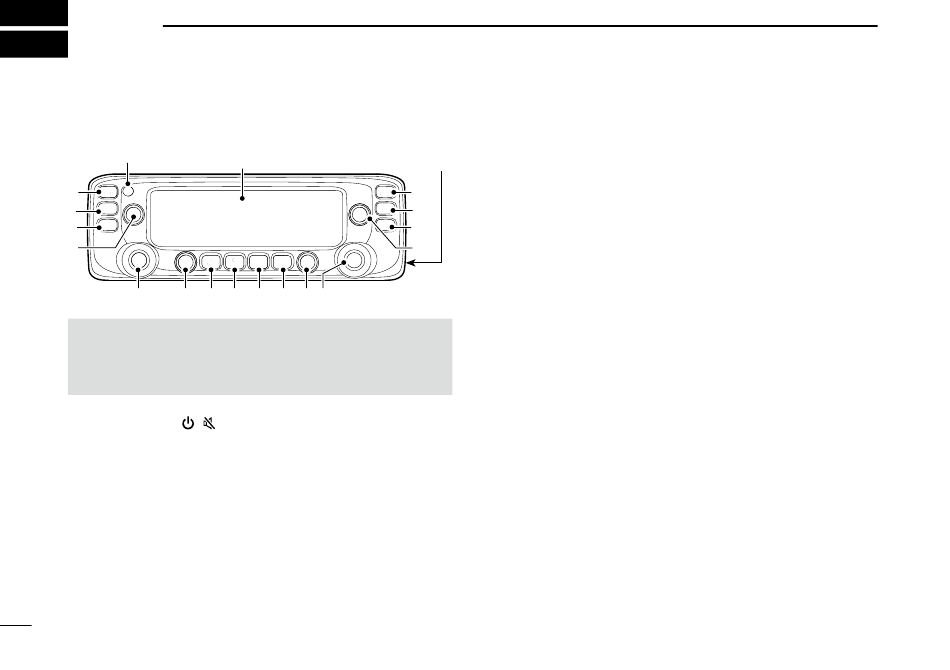

■ Controller — Front panel
1
2
3
4
5
6 7
For your reference:
The key-touch beep tones on the left band are different
than the tones on the right band. The different tones will let
you know which band you are operating on.
1 POWER KEY [ ]( )
z Hold down for 1 second to turn power ON or OFF.
z Push to mute the audio. (p. 27)
2 MAIN•BAND KEY [MAIN BAND]
Push to select the MAIN band. (p. 23)
In the VFO mode
Hold down for 1 second to enter the Operating band
select mode. (p. 24)
In the Memory mode
Hold down for 1 second to enter the Memory bank select
mode. (p. 33)
1
Microphone
Display (p. 2) connector (pp. 5, 63)
8 9 10 11 7 6
3 VFO/MHz TUNING•SCAN KEY [V/MHz SCAN]
z Push to select the VFO mode.
z In the VFO mode, push to select 1 MHz tuning. (p. 24)
z Hold down for 1 second to display the scan type setting
2
screen. (pp. 41, 43)
3
4
4 MEMORY•CALL KEY [MR CALL]
5
z In the VFO mode, push to select the Memory mode.
(p. 23)
z In the Memory mode, push to select the Weather
channel mode.* (p. 23)
* Weather channels are selectable in only the USA version.
z Hold down for 1 second to select the Call channel
mode. (p. 23)
5 VOLUME CONTROL (p. 25)
6 TUNING DIAL [DIAL]
In the VFO mode
Rotate to select the operating frequency. (pp. 24, 25)
In the Memory mode
Rotate to select a Memory channel. (p. 29)
While scanning
Rotate to change the scanning direction. (p. 37)
In the MENU mode
Rotate to select a desired option or value. (p. 11)
7 SQUELCH CONTROL (p. 25)
Rotate to adjust the squelch level.
