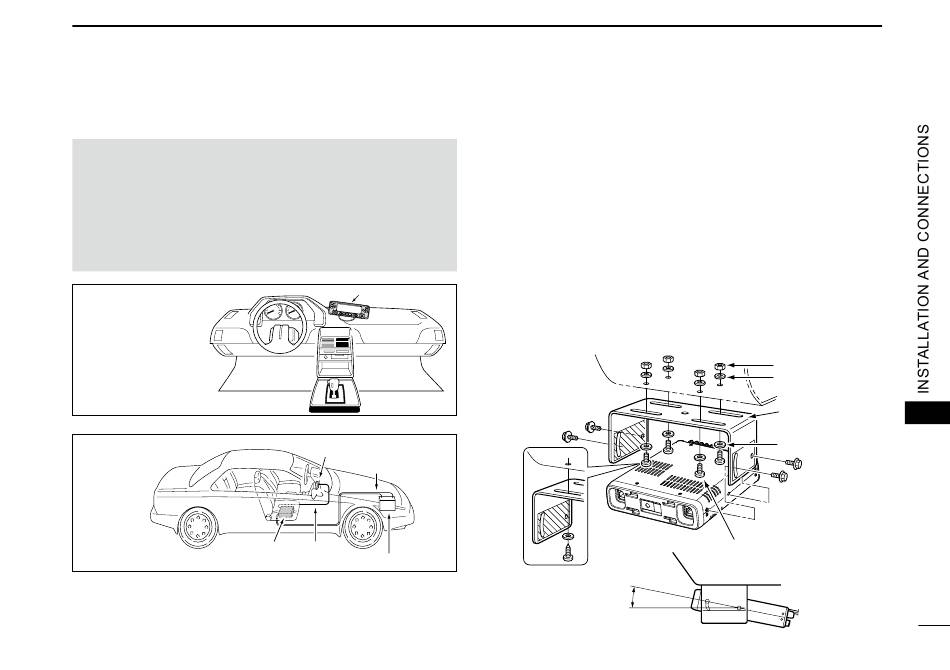

■ Installing in a vehicle
CAUTION: NEVER place the main unit or remote
controller where normal operation of the vehicle may be
hindered or where it could cause bodily injury.
CAUTION: NEVER place the main unit or remote
controller where air bag deployment may be obstructed.
DO NOT place the transceiver or remote controller where
hot or cold air blows directly onto it.
• Remote controller
installation
• Main unit
installation
Controller
Controller
DC power cable
Controller
Main
Battery (12 V)
cable
unit
INSTALLATION AND CONNECTIONS
Using the mounting bracket
D
You can install the main unit on the dashboard or the console
of your vehicle with the optional MBF-4
1. Drill 4 holes where the mounting bracket is to be
installed.
• Approximately 5.5 ~ 5.6 mm (0.21 ~ 0.22 inch)(d) when using
nuts, approximately 2 ~ 3 mm (0.08 ~ 0.12 inch)(d) when
using self-tapping screws.
2. Insert the supplied screws, nuts and washers through
the mounting bracket and tighten.
3. Adjust the angle to suit your needs.
Mounting
nut
When using
self-tapping
25˚
screws
9
.
mobile bracket
Nut
Spring washer
Mounting
bracket
Flat washer
Screw
9
