MICRO-EPSILON interferoMETER IMS5420 Quick Manual page 9

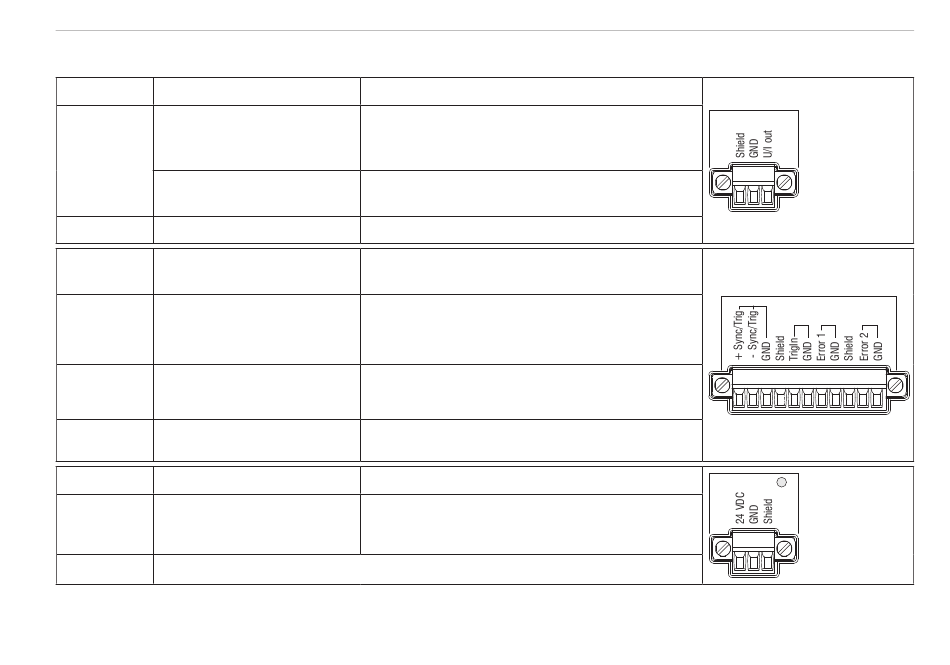

Electrical Connectors, IMS5420
Electrical Connectors, IMS5420
Pin Description
Voltage output
U/I out
Current output
GND Ground analog output
+Sync/Trig
Synchronization input/out-
put, trigger input
-Sync/Trig
TrigIn Trigger input
Error 1 / 2 Switch outputs
GND Ground potentials
24 VDC Supply voltage
GND Supply voltage ground
Shield Shields to respective output/input, connector housing
The plug-in screw terminals are designed for a conductor cross-section of 0.14 mm² up to 1.5 mm².
IMS5420-TH / IMS5420MP-TH / IMS5420IP67-TH / IMS5420IP67MP-TH
Comments
0 ... 5 V; 0 ... 10 V; R appr. 50 Ohm
i
5.5 V / 10.9 V with error, outside measuring
range
4 ... 20 mA; R ≤ 500 Ohm
L
23.7 mA with error, outside measuring range
Galvanically connected with supply
RS422 level (EIA422)
TTL or HTL level
TTL: Low ≤ 0.8 V, High ≥ 2 V
HTL: Low ≤ 3 V, High ≥ 8 V
NPN, PNP or Push-Pull
I = 100 mA, U = 30 V
H max
max
All GND conductors are interconnected with
one another and to supply voltage ground.
± 15 %, I < 1 A
max
GND is galvanically connected to GND of
switching outputs, synchronization, analog
and encoder input
Analog Out
Digital I/O
Power
Page 9
