Set IP Address
Set IP Address
Change to the menu Settings > Outputs > Ethernet Settings and enter the new IP address.
Click on Apply settings to confirm.
Start the web interface with the new IP address.
Save the new device settings. Click on Save settings.
Switching between Ethernet and EtherCAT

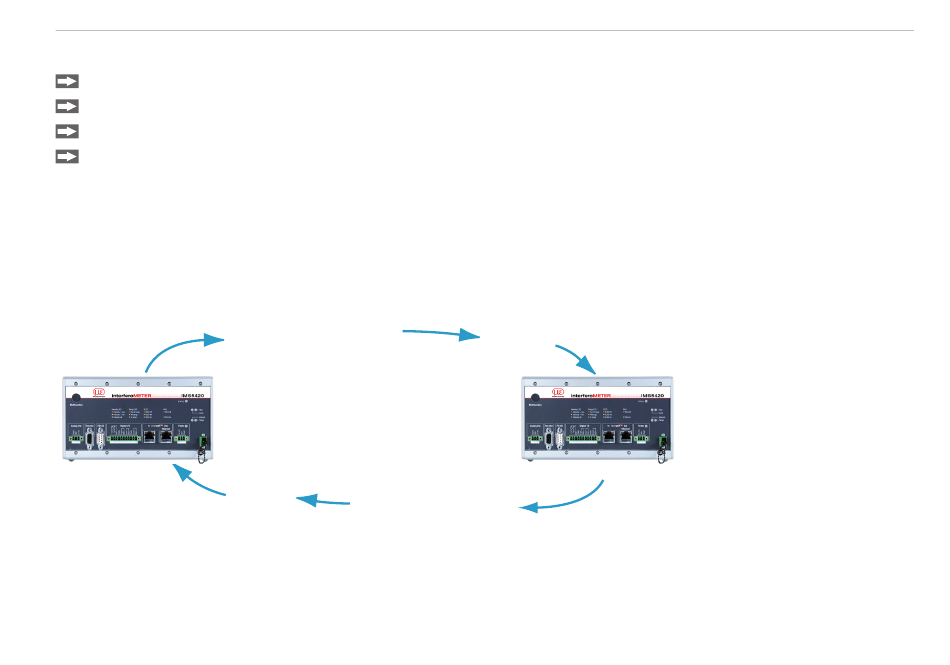

You can switch between Ethernet and EtherCAT using an ASCII command, the web interface or an EtherCAT object.
Save the current settings before switching to EtherCAT. The switch becomes active only after the controller has been
restarted.
ASCII command
EtherNET
„ETHERMODE ETHERCAT"
„BASICSETTINGS Store"
„RESET"
Restart
Controller
The RS422 interface for sending an ASCII command is available both in Ethernet mode and in EtherCAT mode.
IMS5420-TH / IMS5420MP-TH / IMS5420IP67-TH / IMS5420IP67MP-TH
Restart
Controller
ASCI command
„ETHERMODE ETHERNET"
„BASICSETTINGS Store"
„RESET"
or
EtherCAT-Objekt „21B0:03" on „False"
EtherCAT-Objekt „2020:02" on „True"
EtherCAT-Objekt „2101" on „True"
EtherCAT
